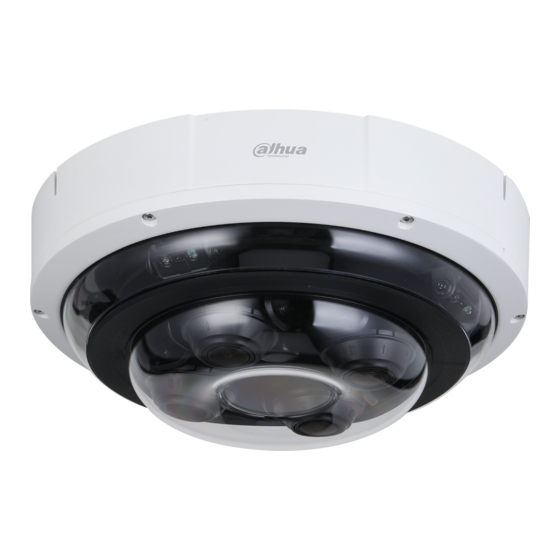

- Page 1 Multi-sensor Panoramic Network Camera Quick Start Guide V1.0.0...
-
Page 2: Foreword
Quick Start Guide Foreword General This manual introduces the functions, configuration, general operation, and system maintenance of network camera. Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury. -
Page 3: Important Safeguards And Warnings
Quick Start Guide Important Safeguards and Warnings Electrical Safety ● All installation and operation shall conform to your local electrical safety codes. ● The power source shall conform to the Safety Extra Low Voltage (SELV) standard, and supply power with rated voltage which conforms to Limited power Source requirement according to IEC60950-1. - Page 4 Quick Start Guide mild detergent. To avoid possible damage on device body coating which could cause performance decrease, do not use volatile solvent such as alcohol, benzene, diluent and so on to clean the device body, nor can strong, abrasive detergent be used. ●...
-
Page 5: Table Of Contents
Quick Start Guide Table of Contents Foreword ..............................I Important Safeguards and Warnings ..................... II 1 Introduction ............................1 1.1 Cable ............................... 1 1.2 Connecting Alarm Input/Output ....................2 2 Network Configuration .......................... 4 2.1 Initializing Device .......................... 4 2.2 Modifying Device IP Address ....................... 6 2.3 Logging in to Web Interface ...................... -
Page 6: Introduction
Quick Start Guide 1 Introduction 1.1 Cable ● Cable type might vary with different devices, and the actual product shall prevail. ● Waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit and water damage. For the detailed operation, see the FAQ Manual. Figure 1-1 Cables For more information about cable ports, see Table 1-1. -
Page 7: Connecting Alarm Input/Output
Quick Start Guide Table 1-2 Alarm information Port Port Name Description ALARM_IN Receives the switch signal of external alarm source. ALARM_IN_GND Connect different alarm input devices to the same ALARM_IN_GND port. Alarm I/O ALARM_OUT Outputs alarm signal to alarm device. When connecting to alarm device, only the ALARM_OUT_GND ALARM_OUT port and ALARM_OUT_GND port... - Page 8 Quick Start Guide high-level and to NC if the signal is low-level. ● The alarm output on the web interface is corresponding to the alarm output end of the camera, which is also the alarm output end of the I/O port.
-
Page 9: Network Configuration
Quick Start Guide 2 Network Configuration Device initialization and IP setting can be finished with the "ConfigTool" or on web interface. For more information, see the Web Operation Manual. ● Device initialization is available on select models, and it is required at first-time use and after device is being reset. - Page 10 Quick Start Guide The Device initialization interface is displayed. Step 6 Select the devices that need initialization, and then click Initialize. The password setting interface is displayed. Figure 2-2 Password setting Step 7 Set and confirm the password of the devices, then enter a valid email address, and then click Next.
-
Page 11: Modifying Device Ip Address
Quick Start Guide 2.2 Modifying Device IP Address ● You can modify IP address of one or multiple devices at one time. This section is based on modifying IP addresses in batches. ● Modifying IP addresses in batches is available only when the corresponding devices have the same login password. - Page 12 Quick Start Guide Step 3 For the first-time login, click Click Here to Download Plugin, and then install the plugin as instructed. The main interface is displayed when the installation is finished.
-
Page 13: Installation
Quick Start Guide 3 Installation 3.1 Packing List ● The tool required for the installation such as electric drill is not provided in the package. ● The operation manual and related tool information are contained in the disk or the QR code, and the actual package shall prevail. -
Page 14: Installing Sd Card
Quick Start Guide Figure 3-3 Installation method 3.3.2 Installing SD Card Disconnect the power before installing or removing the SD card. Figure 3-4 Installing SD card Press the reset button for 10 seconds to reset the device. -
Page 15: Attaching Camera
Quick Start Guide 3.3.3 Attaching Camera Make sure that the mounting surface is strong enough to hold at least three times the weight of the camera and bracket. Figure 3-5 Cable going through the side cable tray Figure 3-6 Cable going through the mounting surface 3.3.4 Installing Waterproof Connector (Optional) -
Page 16: Adjusting Lens Angle
Quick Start Guide This part is needed only when there is waterproof connector in the package and the camera is used outdoors. Figure 3-7 Installing waterproof connector 3.3.5 Adjusting Lens Angle... - Page 17 Quick Start Guide Figure 3-8 Adjusting lens angle...
- Page 18 Dahua Technology USA 23 Hubble Irvine, CA 92618 Tel: (949) 679-7777 Fax: (949) 679-5760 Support: 877-606-1590 Sales: sales.usa@dahuatech.com Support: support.usa@dahuatech.com © 2020 Dahua Technology USA. All rights reserved. Design and specifications are subject to change without notice.
