Item # 1005 442 743
Model # FRS60704-2PKB

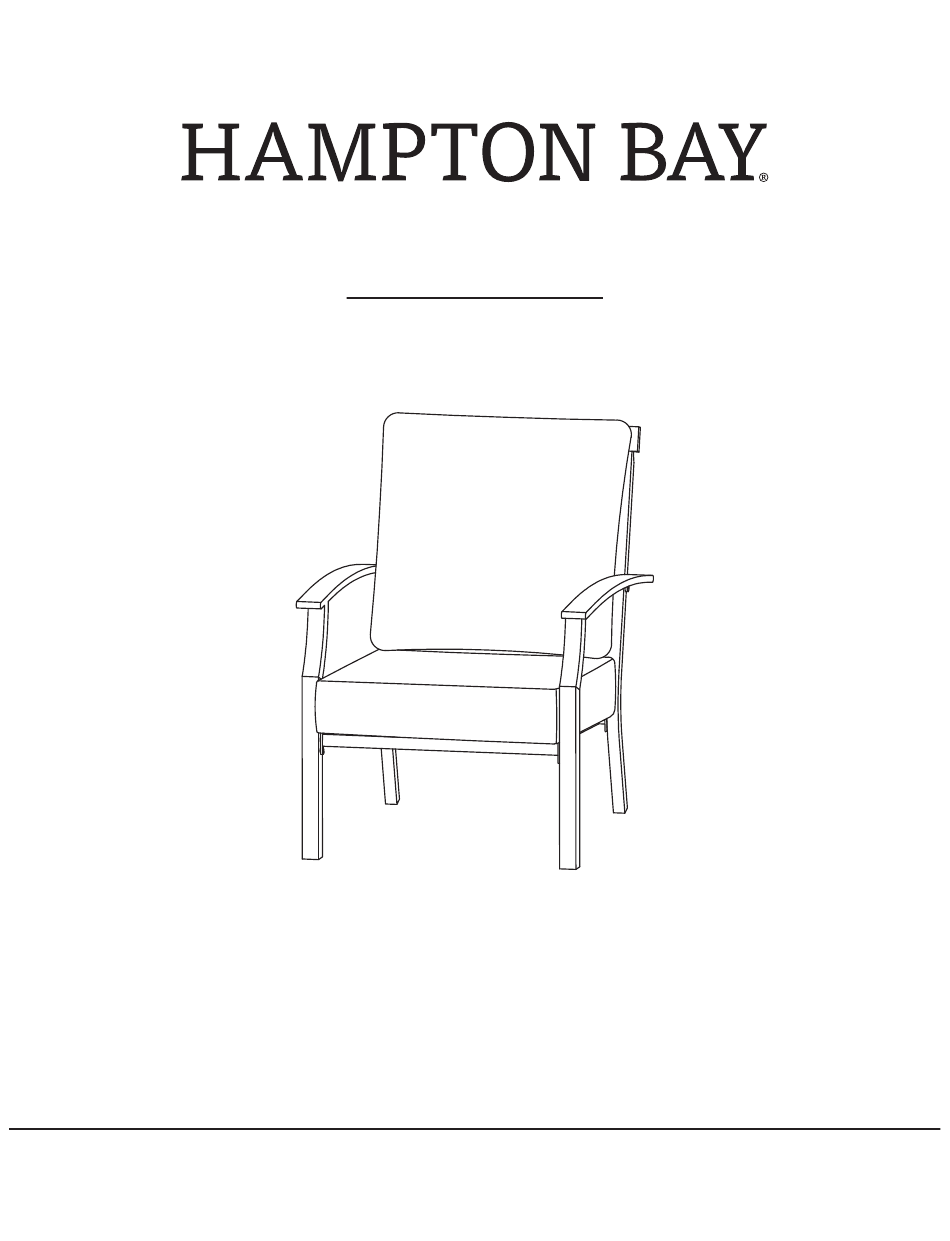

USE AND CARE GUIDE

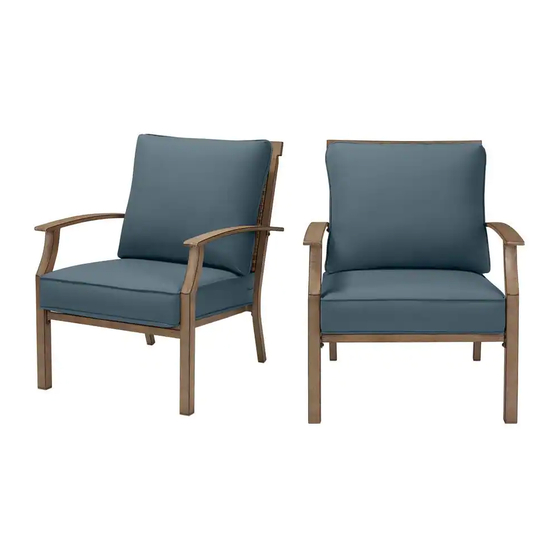

GENEVA WOVEN 2PK LOUNGE CHAIR - BARE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive continually to create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY GENEVA FRS60704-2PKB
Summary of Contents for HAMPTON BAY GENEVA FRS60704-2PKB
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive continually to create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
- Page 2 Table of Contents Table of Contents........2 Pre-Assembly.
- Page 3 Warranty 3 YEAR FRAME LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three years. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover s warranty.
- Page 4 Pre-assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6x15 Combination Bolt 20+1 Hex Wrench PACKAGE CONTENTS Part Description Quantity Right Arm Left Arm Chair Seat Chair Back Back Cushion Seat Cushion...
- Page 5 Assembly Attach The Chair Seat To The Chair Back NOTE: Loosely tighten all bolts using the hex wrench (BB). Place the chair seat (C) and the chair back (D) on a soft surface. Attach the chair seat (C) to the chair back (D) using M6x15 combination bolts (AA).
- Page 6 Chair Assembly (continued) Attach The Chair Seat To The Right Arm NOTE: Loosely tighten all bolts using the hex wrench (BB). Place the right arm (A) upside down on a soft surface. Attached the chair seat (C) to the right arm (A) using M6x15 combination bolts (AA). Attach The Left And Right Arms To The Chair Back NOTE: Loosely tighten all bolts using the hex wrench (BB).
- Page 7 Chair Assembly (continued) Tightening All The Bolts Once all of the bolts are in place, fully tighten all the bolts using hex wrench (BB). Place the back cushion (E) and seat cushion (F) on the chair Ensure all connections are secure before use. Care Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly.
- Page 8 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. For certification use only...
