203702
FRN-913290
USE AND CARE GUIDE

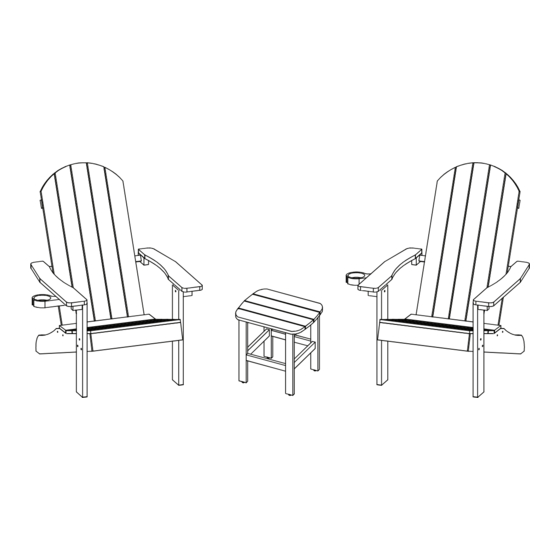

DESTIN ADIRONDACK SET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
01-800-00-4663-3
HOMEDEPOT.COM.MX
IMPORTER: SERVICIOS HOME DEPOT, S. DE R.L. DE C.V.
Ricardo Margain 605 Santa Engracia, San Pedro
Garza García, Nuevo León, México C.P. 66267
Tel. 01-800-00-4663-3
THANK YOU
set
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

loading

Related Manuals for HAMPTON BAY DESTIN FRN-913290

Summary of Contents for HAMPTON BAY DESTIN FRN-913290

  • Page 1 Garza García, Nuevo León, México C.P. 66267 Tel. 01-800-00-4663-3 THANK YOU quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!

  • Page 2: Table Of Contents

    The frame is warranted to be free of manufacturing defects for one year from the purchase date. If the frame of your furniture fails (ie. broken frame or weld) within one year of ownership, Hampton Bay will repair, provide replacement parts, or replace the product at our warranty only.

  • Page 3: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY Before beginning the assembly of this product, make sure all parts are present. Compare parts with Package Contents and Hardware Included lists. If any part is missing or damaged, do not attempt to assemble the product, and return it to the place of purchase. HARDWARE INCLUDED NOTE: Hardware not shown to actual size.

  • Page 4: Package Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Chair Seat Seat Slat Chair Leg Chair Back Right Arm Left Arm Table Top Table Leg Connecting Bar...

  • Page 5: Chair Assembly

    Chair Assembly Attaching the Seat Slat to the Chair Seat Place all parts on a at, clean surface. Put the Seat Slat (B) into the Chair Seat (A) by using the Phillips Screw (BB), and Phillips Screwdriver (FF), then tighten all the Phillips Screws (BB).
  • Page 6 Chair Assembly (continued) Attaching the Chair Leg to the Chair Seat Attach the Chair Leg (C) to the Chair Seat (A) by using the Hex Wrench (EE), Bolt M6*60mm (AA), Nut (CC) and Wrench (GG). Fully tighten all the Bolts (AA). Attaching the Chair Back to the Chair Seat Attach the Chair Back (D) to the Chair Seat (A) by using the Hex Wrench (EE) and Bolt M6*50mm (HH).
  • Page 7 Chair Assembly (continued) Attaching the Chair Arm to the Chair Leg Attach the Right Arm (E) and Left Arm (F) to the Chair Leg (C) by using the Hex Wrench (EE), Bolt M6*60mm (AA), Nut (CC) and Wrench (GG). Do not over tighten the Bolts (AA) during this step. Attaching the Chair Arm to the Chair Back Attach the Right Arm (E) and Left Arm (F) to the Chair Back (D) by using the Hex Wrench (EE) and Bolt M6*50mm (HH).
  • Page 8 Chair Assembly (continued) The chair is now ready for use.
  • Page 9 Table Assembly Attaching the Legs to the Table Top Place all parts on a at, clean surface. Attach the Table Legs (H) to the Table Top (G) by using the Hex Wrench (EE), and Bolts (DD). Do not over tighten the Bolts (DD) during this step.
  • Page 10 Table Assembly (continued) Attaching the Connecting Bar to the Table Legs Attach the Connecting Bar (J) to the Table Legs (H) by using the Hex Wrench (EE), and Bolts (DD). Fully tighten the Bolts (DD) on this chair. Turn the table over and place on a at surface.

  • Page 11: Care And Cleaning

    Table Assembly (continued) Adjusting the Self-Leveling Feet Adjust the self-leveling feet so that all legs are level. The table is now ready for use. Care and Cleaning Use mild soap and warm water to clean the frames. Rinse with clean water and dry thoroughly. Be sure to drain any water accumulated inside the frames.
  • Page 12 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 01-800-00-4663-3 HOMEDEPOT.COM.MX Retain this manual for future use. For Certificate use only...
