Security Brands RECEIVER 300 Instructions

Advertisement

INSTRUCTIONS

IN THE BOX

Make sure you have everything
shown here.

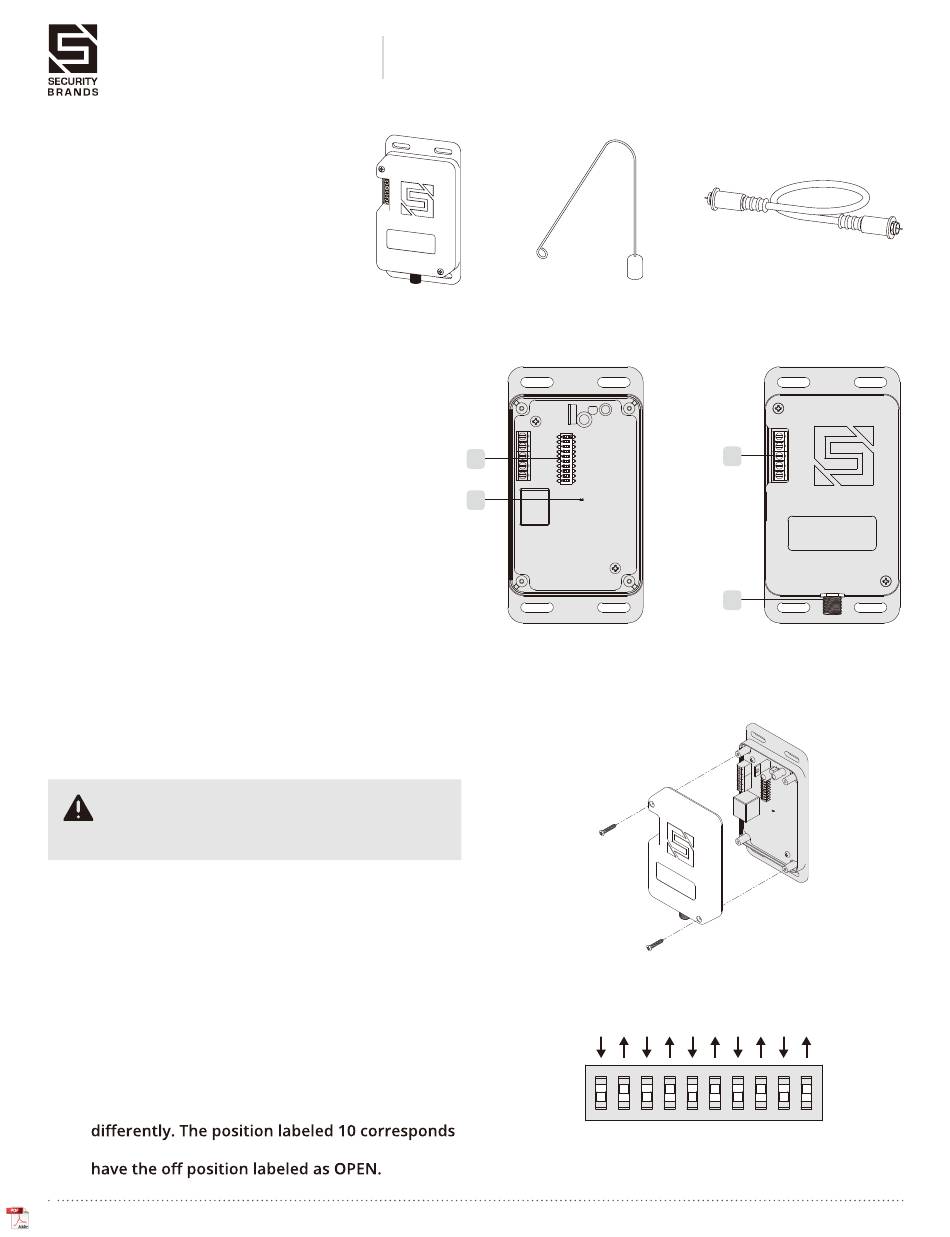

WHAT'S WHAT
1. DIP switches
2. RF status LED
3. Power and relay terminals
4. Coaxial antenna connector

SETUP

1. Remove screws from Receiver 300 unit cover and
remove cover to reveal DIP switches.
CAUTION! Be gentle with coaxial connection
when removing cover. Do not let cover hang
free; doing so may damage unit!
2. Set DIP switches to desired positions.
NOTE: For best results, we recommend using
the Security Brands Remote 300 (14-R300).
NOTE: By default, the DIP switches are matched
to the default DIP switch positions on the
Remote 300 and other 300-MHz remotes.
For security reasons, we recommend using
custom DIP switch positions.
NOTE: Some DIP switches may be labeled
to the position labeled 0, and some DIP switches
RECEIVER 300
Receiver 300
1
2
Receiver 300
(cover removed)
1 of 2
Model 14-REC300
Antenna
1.5-foot Coaxial Cable
3
4
ON
1
2
3
4
5
6
7
DIP Switches on Receiver 300
(default positions)
Receiver 300
(cover in place)
8
9
10
