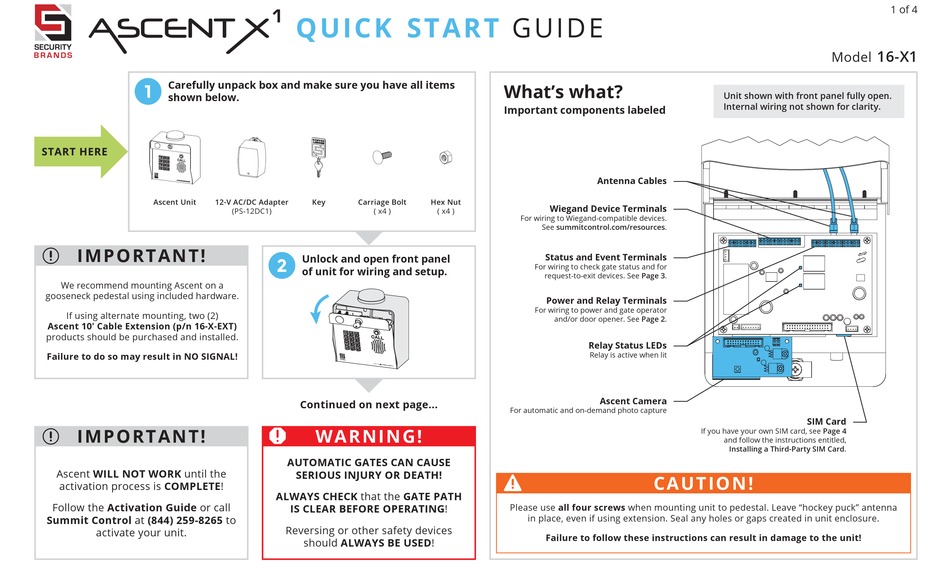

Carefully unpack box and make sure you have all items
1
shown below.
Ascent Unit
12-V AC/DC Adapter
IMPO R T ANT!
r
We recommend mounting Ascent on a
gooseneck pedestal using included hardware.
If using alternate mounting, two (2)
Ascent 10' Cable Extension (p/n 16-X-EXT)
products should be purchased and installed.
Failure to do so may result in NO SIGNAL!
IMPO R TANT!
r
Ascent WILL NOT WORK until the
activation process is COMPLETE!
Follow the Activation Guide or call
Summit Control at (844) 259-8265 to
activate your unit.
Q U IC K S TA R T
Key
Carriage Bolt
(PS-12DC1)
( x4 )
Unlock and open front panel
2
of unit for wiring and setup.
Continued on next page...
WA RNI N G !
AUTOMATIC GATES CAN CAUSE
SERIOUS INJURY OR DEATH!
ALWAYS CHECK that the GATE PATH
IS CLEAR BEFORE OPERATING!
Reversing or other safety devices
should ALWAYS BE USED!
GUI DE
What's what?
Important components labeled
Antenna Cables
Hex Nut
Wiegand Device Terminals
( x4 )
For wiring to Wiegand-compatible devices.
See summitcontrol.com/resources.
Status and Event Terminals
For wiring to check gate status and for
Request-To-Exit devices. See Page 3.
Power and Relay Terminals
For wiring to power and gate operator
and/or door opener. See Page 2.
Relay Status LEDs
Relay is active when lit
Ascent Camera
For automatic and on-demand photo capture
Please use all four screws when mounting unit to pedestal. Leave "hockey puck" antenna
in place, even if using extension. Seal any holes or gaps created in unit enclosure.
Failure to follow these instructions can result in damage to the unit!
Model
Unit shown with front panel fully open.
Internal wiring not shown for clarity.
SIM Card
If you have your own SIM card, see Page 4
and follow the instructions entitled,
Installing a Third-Party SIM Card.
C AU T IO N!
1 of 4
