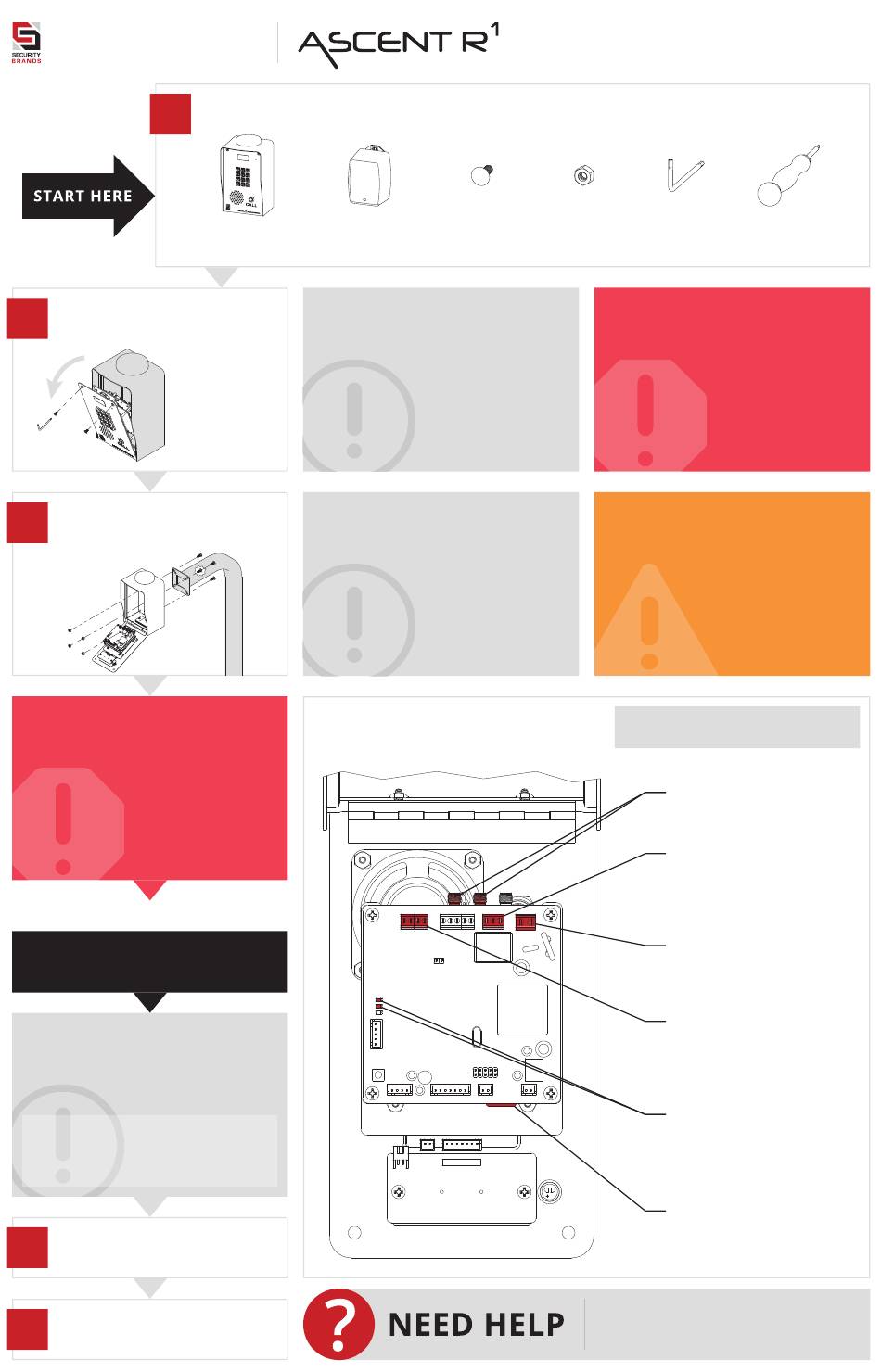

Security Brands ASCENT R1 Install Manual

I n s t a l l
1
Remove security screws with L Key,
2
and open unit faceplate for mounting,
wiring, and setup.
Mount unit to pedestal using included
3
mounting hardware.
(This step may be completed later.)
S T O P

This is a cellular accessory for a gate or door.
An uninterrupted cellular connection
CANNOT BE GUARANTEED!
An emergency egress or primary entry
mechanism SHOULD ALWAYS BE USED!
(transmitter, fire box, mechanical release)
Consult with your dealer, distributor, and/or
system designer for more information.
Continued on next page...
Using a Third-Party
Power Source (Optional)
IMP O R T A N T
r
Verify your power source is compatible with
the unit's electrical specifications below.
This product is OK for solar applications.
Input
no more than 10% beyond this range
Current Draw less than 190 mA @ 12 VDC
less than 160 mA @ 24 VDC
Connect wires to unit as shown in
P1
Step 4.
Connect wires to your power source,
P2
making sure you connect positive to
positive and negative to negative.
G U I D E
Unpack box and make sure you have all items shown here.
Ascent Unit 12-V AC/DC Adapter
(PS-12DC1)
r
This Ascent unit WILL NOT WORK until the
If you have
trouble opening
See the included Activation Guide to get this
faceplate, insert
L Key (short end)
in screw hole
If you need help or have any questions, please
and pull gently.
contact Summit Control at (972) 474-6422.
r
We recommend mounting the unit on a
gooseneck pedestal using the included
should be purchased and installed.
Failure to do so may result in NO SIGNAL!

What's what?
All important components labeled
r
12–24 VAC/DC
Carriage Bolt
( 4x )
I M P O R T A N T
activation process is COMPLETE!
unit activated.
I M P O R T A N T
mounting hardware.
If using alternate mounting, the
4G LTE Antenna Extension Kit
(Model 16-ANTX-1)
Hex Nut L Key
( 4x )
W A RN I NG
r 
AUTOMATIC GATES CAN CAUSE SERIOUS
INJURY OR DEATH!
ALWAYS CHECK THAT THE GATE PATH IS
CLEAR BEFORE OPERATING!
REVERSING OR OTHER SAFETY DEVICES
SHOULD ALWAYS BE USED!
CA U TI O N

r
Use all four carriage bolts when mounting
the unit to a pedestal.
Leave the "hockey puck" antenna in place
even if using an antenna extension.
Seal all openings created in the enclosure.
Failure to follow these instructions can
damage the unit!
Unit shown with faceplate fully open.
Internal wiring not shown for clarity.
Cellular Antenna Jacks
Cellular antenna extension kits
connect here
Relay Terminals
For wiring to gate operator or
door opener. See Page 2.
Power Terminals
For wiring to power. See Page 2.
Digital Input Terminals
For connecting accessory devices.
Scan QR code on next page for
wiring instructions.
Power and Relay Status LEDs
Active when lit
SIM Card
Press in gently to eject.
Call (972) 474-6422
