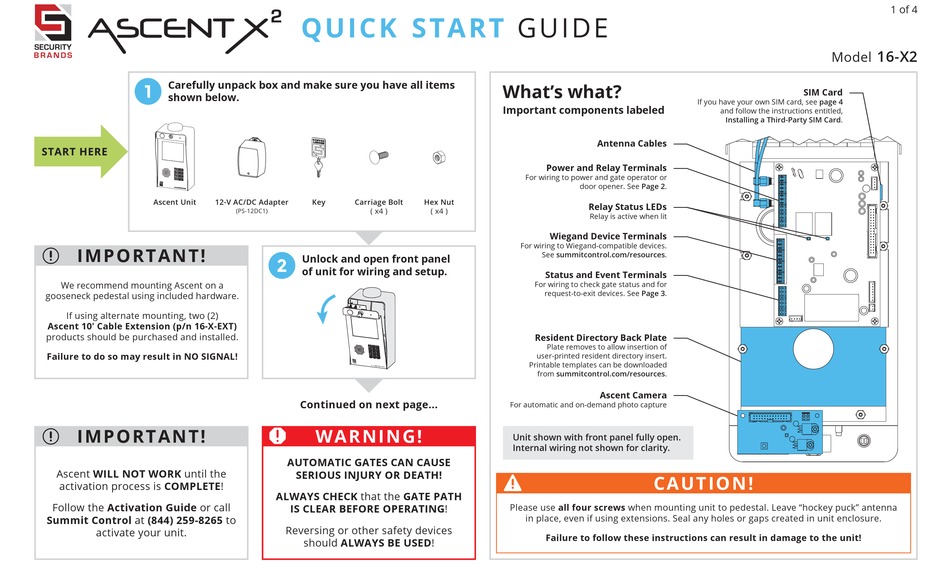

Security Brands Ascent 16-X2 Quick Start Manual

Carefully unpack box and make sure you have all items
1
shown below.

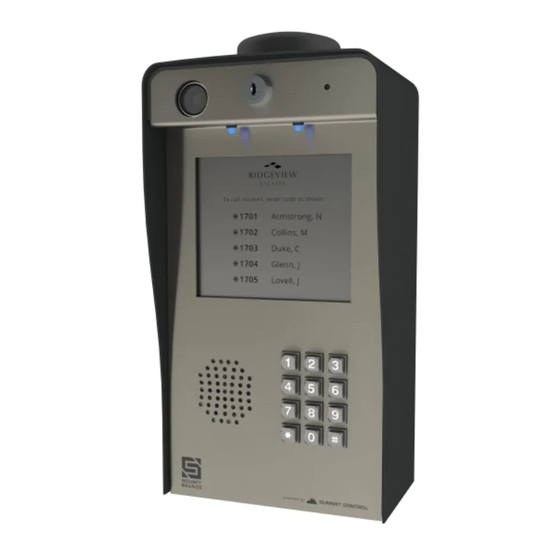

Ascent Unit 12-V AC/DC Adapter
IMPO R T ANT!
r
We recommend mounting Ascent on a
gooseneck pedestal using included hardware.
If using alternate mounting, two (2)
Ascent 10' Cable Extension (p/n 16-X-EXT)
products should be purchased and installed.
Failure to do so may result in NO SIGNAL!
IMPO R TANT!
r
Ascent WILL NOT WORK until the
activation process is COMPLETE!
Follow the Activation Guide or call
Summit Control at (844) 259-8265 to
activate your unit.
Q UI C K S TA R T
Key Carriage Bolt
( x4 )
(PS-12DC1)
Unlock and open front panel
2
of unit for wiring and setup.
Continued on next page...
WA RNI N G !

AUTOMATIC GATES CAN CAUSE
SERIOUS INJURY OR DEATH!
ALWAYS CHECK that the GATE PATH
IS CLEAR BEFORE OPERATING!
Reversing or other safety devices
should ALWAYS BE USED!
GUI DE
What's what?
Important components labeled
Antenna Cables
Power and Relay Terminals
For wiring to power and gate operator or
door opener. See Page 2.
Hex Nut
Relay Status LEDs
( x4 )
Relay is active when lit
Wiegand Device Terminals
For wiring to Wiegand-compatible devices.
See summitcontrol.com/resources.
Status and Event Terminals
For wiring to check gate status and for
request-to-exit devices. See Page 3.
Resident Directory Back Plate
Plate removes to allow insertion of
user-printed resident directory insert.
Printable templates can be downloaded
from summitcontrol.com/resources.
Ascent Camera
For automatic and on-demand photo capture
Unit shown with front panel fully open.
Internal wiring not shown for clarity.

Please use all four screws when mounting unit to pedestal. Leave "hockey puck" antenna
in place, even if using extensions. Seal any holes or gaps created in unit enclosure.
Failure to follow these instructions can result in damage to the unit!
Model
SIM Card
If you have your own SIM card, see page 4
and follow the instructions entitled,
Installing a Third-Party SIM Card.
C AU T IO N!
1 of 4
16-X2
