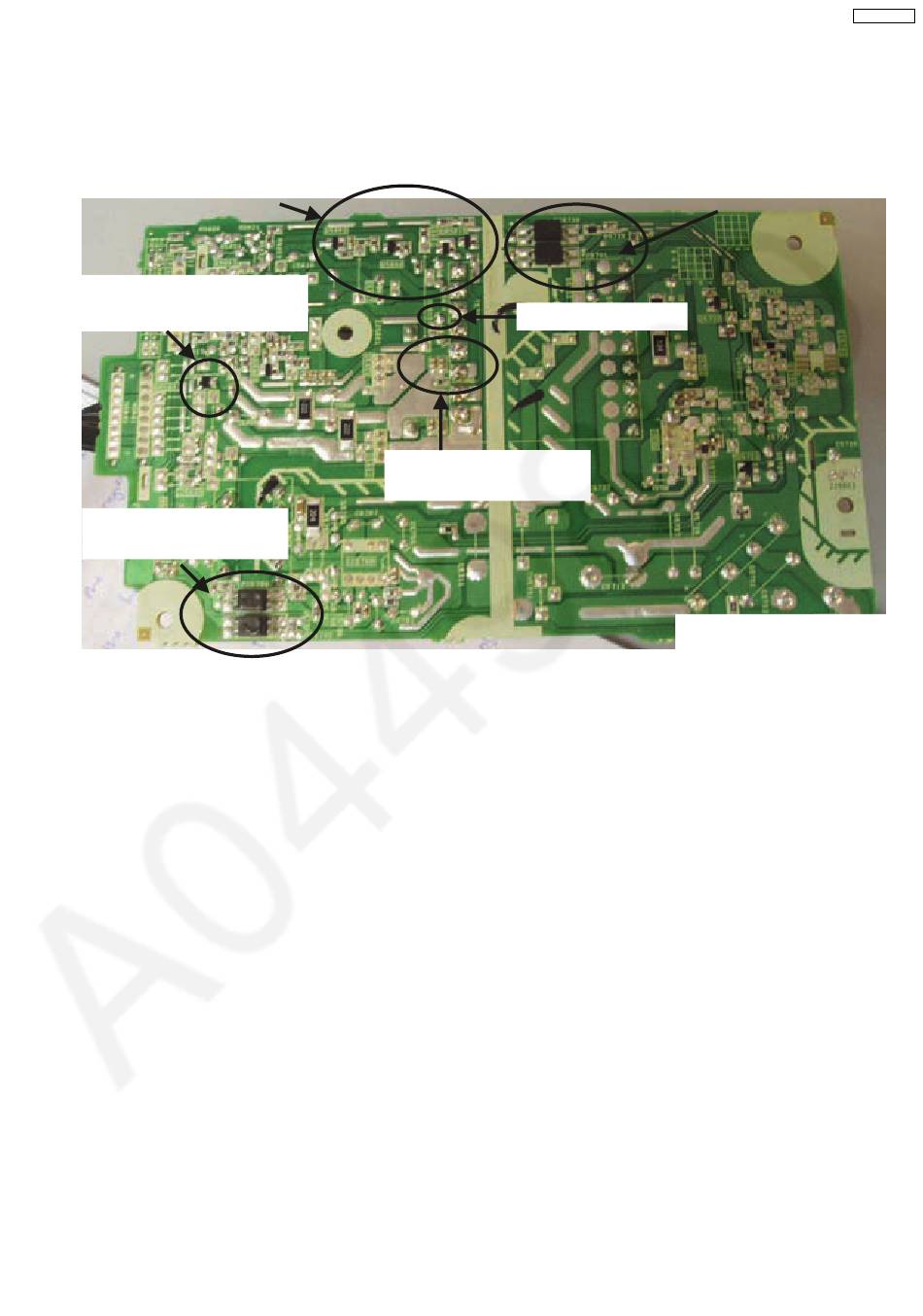

22.1.3. Part Location
22.1.3.1. SMPS P.C.B.
Temperature Detect
Q5862, Q5860, Q5861
Transistor: QR5801 &
QR5802 (– 30V Detect)
Feedback circuit:
PC5702 & PC5799
+18V FAN : D5805
Thermistor: TH5860
(Temperature Detect)
Fig. 1 SMPS P.C.B.
131
Feedback circuit:
PC5720 & PC5701
SMPS P.C.B.
SA-VK870EE
