21/9/2018
The product model and code (6 digits) are printed on the sticker on the outside or the inside of the battery
compartment cover. The manual may not be available in the selected language.
TA3 – TA3 A – TA3 B – TA3 C
COD. 546070
COD. 546030
COD. 546010
COD. 546230
PRODUCT DESCRIPTION
This is an easy-to-use MECHANICAL THERMOSTAT. It allows an accurate room temperature adjustment in the
hosting room, thus meeting any users' needs as far as room comfort.
CONFORMITY TO THE STANDARDS
This product complies with:
EN 60730-1 and subsequen revisions
EN 60730-2-9
CONFORMITY TO THE GUIDELINES
This product complies with:
LVD 2014/35/EU
Class ErP I (+1%) – EU 811/2013
https://manimit.it/en/ta3-ta3-ta3-b-ta3-c-10/
TA3 - TA3 A - TA3 B - TA3 C - Imit Control System s.r.l.
1/10
Advertisement
Table of Contents
Related Manuals for Imit TA3
Summary of Contents for Imit TA3
- Page 1 21/9/2018 TA3 - TA3 A - TA3 B - TA3 C - Imit Control System s.r.l. The product model and code (6 digits) are printed on the sticker on the outside or the inside of the battery compartment cover. The manual may not be available in the selected language.
- Page 2 21/9/2018 TA3 - TA3 A - TA3 B - TA3 C - Imit Control System s.r.l. Technical speci cations Maximum capacity of the contacts 16(2,5)A/250V~ Type of action 1B Temperature regulation range 5°÷30°C Temperature differential 0,4K÷0,8K Output switching contacts Degree of protection IP 20...
-
Page 3: Optional Accessories
21/9/2018 TA3 - TA3 A - TA3 B - TA3 C - Imit Control System s.r.l. 1 = Temperature setting knob ( g. 1) 2 = Warning lamp (TA3-A, TA3-B, TA3-C) 3 = ON/OFF switch (TA3-B) or SUMMER/WINTER switch (TA3-C) FIG. -
Page 4: Installation And Wiring Connections
21/9/2018 TA3 - TA3 A - TA3 B - TA3 C - Imit Control System s.r.l. FIG. 4 INSTALLATION PLACEMENT OF THE THERMOSTAT FIG. 6 Install the thermostat away from heat sources (radiators, sunrays, and kitchens) and away from doors/windows, at approx. 1,5 m height from the oor. ( g.6) - Page 5 21/9/2018 TA3 - TA3 A - TA3 B - TA3 C - Imit Control System s.r.l. FIG. 7 B) Remove the front cover from the thermostat base by releasing the provided clip ( g.8), then x it to the wall (or to the sub-base tting) through the provided holes ( g.9) and tighten it by means of suitable screws having...
-
Page 6: Turning The Thermostat On And Off
Snap the front cover back. ( g.10) FIG. 10 DESCRIPTION OF CONTROLS AND OPERATION TURNING THE THERMOSTAT ON AND OFF On TA3-B, put the switch onto the “ON” position to start the equipment or onto the “OFF” to turn it off. ( g.12) https://manimit.it/en/ta3-ta3-ta3-b-ta3-c-10/ 6/10... -
Page 7: Temperature Setting
21/9/2018 TA3 - TA3 A - TA3 B - TA3 C - Imit Control System s.r.l. FIG. 12 TEMPERATURE SETTING When the appliance is connected and the electric power is switched on, set the desired room temperature simply by turning the temperature-adjusting knob to the corresponding value on the graduated scale. ( g.11) FIG. -
Page 8: Temperature Lock
21/9/2018 TA3 - TA3 A - TA3 B - TA3 C - Imit Control System s.r.l. FIG. 8 Insert the provided tting (see paragraph “Optional Accessories ”) in the knob at the desired limit points (min. and max.) according to the corresponding values marked on the knob body. Make sure that the metal retainer remains in its correct position between the min. -
Page 9: Problem Solving
21/9/2018 TA3 - TA3 A - TA3 B - TA3 C - Imit Control System s.r.l. FIG. 15 SUMMER/WINTER SWITCH On TA3-C, put the switch onto the position to set up the “summer” operation mode (air conditioning system), or onto the “ ” position to set up the “winter” operation mode (heating system). ( g.13 ”... - Page 10 21/9/2018 TA3 - TA3 A - TA3 B - TA3 C - Imit Control System s.r.l. Increase or reduce the set temperature value according to the system application (heating/air-conditioning system) Put switch onto ON position Make sure the switch is on...
Need help?
Do you have a question about the TA3 and is the answer not in the manual?
Questions and answers

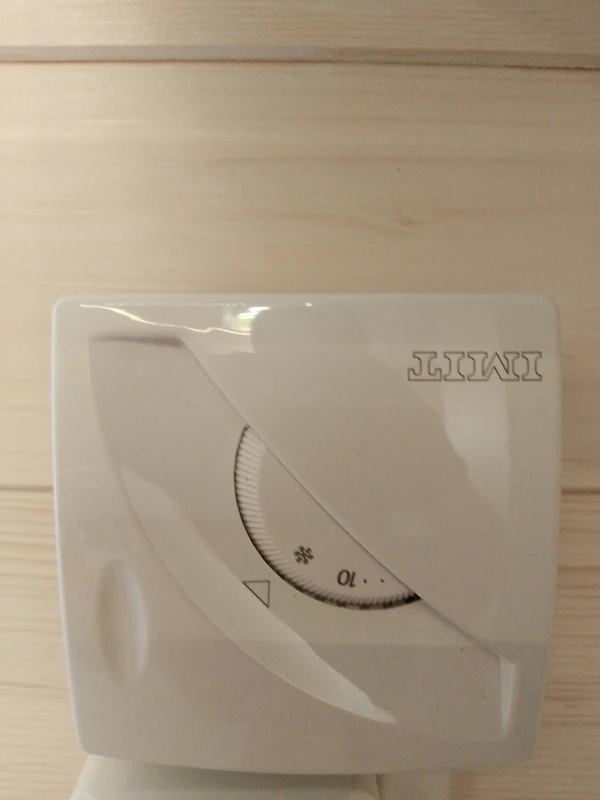

Подскажите пожалуйста, на какие клеммы подавать фазу и ноль и соответственно нагрузку.клемм внутри три а не пять номер регулятора таз 546070.спасибо
