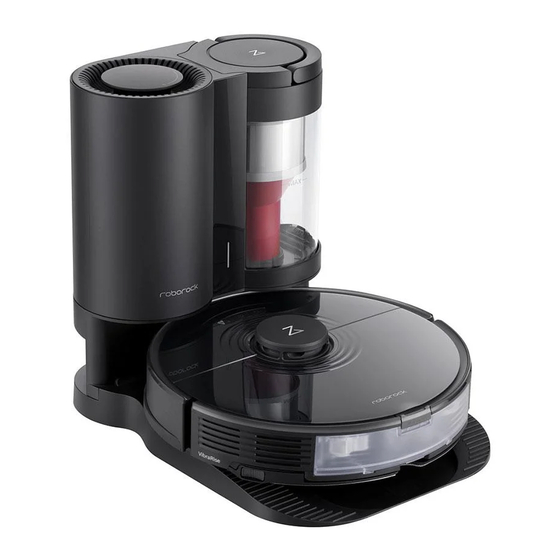

Roborock Auto-Empty Dock AED01HRR User Manual
  1. Manuals
  2. Brands
  3. Roborock Manuals
  4. Vacuum Cleaner
  5. Auto-Empty Dock AED01HRR
  6. User manual

Roborock Auto-Empty Dock AED01HRR User Manual

Hide thumbs

Advertisement

Table of Contents

Roborock Auto-Empty Dock
User Manual
Read this user manual carefully before using this product and store it
properly for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Auto-Empty Dock AED01HRR and is the answer not in the manual?

Questions and answers

Related Manuals for Roborock Auto-Empty Dock AED01HRR

Summary of Contents for Roborock Auto-Empty Dock AED01HRR

  • Page 1 Roborock Auto-Empty Dock User Manual Read this user manual carefully before using this product and store it properly for future reference.
  • Page 3 English Français Deutsch Italiano Español...

  • Page 4: Table Of Contents

    Contents Safety Information Accessories Product Introduction Getting Started Routine Maintenance Basic Parameters FAQs & Troubleshooting EU Declaration of Conformity WEEE Information Warranty Information...
  • Page 5 Safety Information English Restrictions • This product is designed for indoor use only, do not use it outdoors (such as on an open-ended terrace), on any surface other than the ground (such as a sofa), or in any commercial or industrial environment. •...

  • Page 6: Safety Information

    Safety Information product by a person responsible for their safety (CB). • This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
  • Page 7 Safety Information • Do not use the dock to pick up flammable or explosive objects such as fire light- er, gasoline, and toner used in printers or copiers. • Use the product according to the manual. Any loss or damage caused from im- proper use will be borne by the user.
  • Page 8 Safety Information • Do not use the product with any type of power adapter, as this may cause dan- ger and void the warranty. • Do not dismantle, repair or modify the battery or charging dock. • Do not wipe the charging contacts with wet cloth or wet hands. •...

  • Page 9: Accessories

    Accessories Dock Base Power Cable Screwdriver Auto-Empty Dustbin Dust Bag Holder Disposable Dust Bag...

  • Page 10: Product Introduction

    Product Introduction Auto-Empty Dock Status Indicator Light • Steady white: Standby. • Flashing white : Emptying. • Steady red: Malfunction. • Light off: Charging, not powered on, or Dock malfunction for more than 10 minutes. M AX Dock Location Beacon Charging Contacts Base Suction Inlet...
  • Page 11 Product Introduction Auto-Empty Dock Base Filter Cover Base Fastening Screws (5) Rear HEPA Filter Screwdriver Front Filter Air Duct Cover Air Duct Cover Screws (7) MA X...
  • Page 12 Product Introduction Dustbin Power Cable Storage Dustbin Handle Power Cable Air Outlet Storage Slot Cable Outlet M A X Cyclone Separator Power Port Dustbin Opener Note: Power cable can be pulled out at both sides. Dustbin Opening...
  • Page 13 Product Introduction Auto-Empty Dustbin Filter Cover Filter Cover Latch Air Inlet Washable Filter...

  • Page 14: Getting Started

    Getting Started Assembly 2. Place dock upside down on a soft, flat surface (carpet/towel/ cloth) and attach the base by screwing in five screws in the areas marked with a , as shown. 1. Take the screwdriver from its storage bin at the bottom of the base.
  • Page 15 Getting Started 3. Connect the power cable to the dock, and keep excess cable inside the storage slot. ≥ 1 m (3 ft) ≥ 0.5 m (1.6 ft) ≥ 0.5 m (1.6 ft) ≥ 1.5 m (5ft) Notes: • The status indicator light turns off automatically when the robot is charging. •...
  • Page 16 Getting Started Robot Dustbin Replacement 2. Auto Emptying Auto emptying will begin when the robot returns to the auto- 1. Only replace with the Auto-Empty Dustbin empty dock after cleaning. 1. Remove the original robot dustbin. 2. Remove the plate covering the air inlet in the robot. 3.
  • Page 17 Getting Started Using the Disposable Dust Bag 2. Press the Dustbin Opener to open the bottom lid of the dust- bin. Rotate the cyclone separator as shown to remove it. Note: The disposable dust bag uses a one-time seal design to effectively prevent dust from spreading outward during replacement.
  • Page 18 Getting Started 3. Rotate the dust bag holder as shown to install it until you hear 4. Install the disposable dust bag in place along the slot. it click in place. 5. Close the dustbin and place it back in the dock. MA X...

  • Page 19: Routine Maintenance

    Routine Maintenance Dustbin Emptying 2. Hold the dustbin approx. 15 cm (6 in) over a bin then press the * Clean on a monthly basis Dustbin Opener. Notes: • To ensure optimal performance, clean the dustbin regularly or when the dust reaches the MAX mark.
  • Page 20 Routine Maintenance Dustbin & Cyclone Separator Cleaning 2. Rinse the dustbin and cyclone separator with cold water until clean. * Clean as needed Notes: • To avoid potential corrosion, do not use detergents, polishes or air fresheners to clean the dustbin or cyclone separator. •...
  • Page 21 Routine Maintenance 4. Rotate the cyclone separator as shown to install it back in the 5. Reinstall the dustbin in the dock. dustbin and close the bottom lid. MA X...
  • Page 22 Routine Maintenance Filter Cleaning 2. Remove the front filter and/or the rear HEPA filter as needed. * Clean as needed Notes: • Do not wash the filter in a dishwasher or washing machine, or dry using a cylinder dryer, oven, microwave, hot air or fire. •...
  • Page 23 Routine Maintenance 3. Rinse with cold water until clean. 5. Reinstall the dry filter and close the cover. 4. Shake off any remaining water and leave the filter to dry for 24 hours or until completely dry. MA X...
  • Page 24 Routine Maintenance Air Duct 3. Wipe the air duct and cover with a dry cloth. * Clean as needed 1. Clean the dust inlet with a cotton swab if it gets blocked. 4. Re-install the cover and screw it back in place. 2.
  • Page 25 Routine Maintenance Washable Filter 3. Leave the filter to dry for at least 24 hours or until completely dry. * Clean as needed 1. Open the filter cover and remove the filter. 4. Re-install the filter and close the cover. 2.
  • Page 26 Routine Maintenance Auto-Empty Dustbin Cleaning 3. Rinse the dustbin with cold water until clean. * Clean as needed 1. Open the filter cover and remove the filter. 4. Allow the dustbin and filter to dry thoroughly, then rein- stall. 2. Throw out dust and dirt.
  • Page 27 Routine Maintenance Dust Bag Replacement 2. Press the Dustbin Opener to open the bottom lid of the * Replace as needed dustbin. Notes: • Replace the disposable dust bag when full. • The disposable dust bag uses a one-time seal design to effectively prevent dust from spreading outward during replacement.
  • Page 28 Routine Maintenance 3. Pull out the bag as shown. 5. Replace the dust bag with a new one. Make sure it is properly installed. Note: The dust bag handle seals the bag on removal to prevent leakage. 4. Discard the dust bag.
  • Page 29 Routine Maintenance 6. Close the bottom lid of the dustbin and place it back in the dock. Clean the dock location beacon, charging contacts, and electrode brushes with a dry cloth. * Clean as needed MA X M AX...

  • Page 30: Basic Parameters

    Basic Parameters Auto-Empty Dock Dimensions 457×314×383 mm Name Auto-Empty Dock Model AED01HRR, AED02HRR Rated Input Voltage AED01HRR, AED02HRR: 220-240VAC Rated Frequency 50-60Hz Rated Power (Charge) Rated Power (Dust Collection) 1000W Rated Output 20VDC 1.2A Charging Battery 14.4V/5200mAh lithium battery...

  • Page 31: Faqs & Troubleshooting

    FAQs & Troubleshooting Operating conditions are indicated by the LED status indicator light on the dock. Conditions Possible Causes & Solutions 1. The robot dustbin has not been replaced with the auto-empty dustbin. Use the auto-empty dustbin. 2. The plate in the robot covering the air vent has not been removed. Remove the plate. The LED status 3.
  • Page 32 2. The dock is not connected to a power supply. Make sure the power cable is securely plugged in and power is cannot be charged. 3. Poor contact. Clean base and dock charging contacts. If the problem persists after using the recommendations in the table above, please email our after-sales service team: US/Non-Europe Support: support@roborock.com Europe Support: support@roborock-eu.com...

  • Page 33: Eu Declaration Of Conformity

    EU Declaration of Conformity Hereby we: Name of manufacturer Beijing Roborock Technology Co., Ltd. Floor 6, Suite 6016, 6017, 6018, Building C, Kangjian Baosheng Plaza, Address No.8 Heiquan Road, Haidian District, Beijing, P.R.CHINA declare that this DoC is issued under our sole responsibility and that the products:...
  • Page 34 EU Declaration of Conformity are in conformity and verified through testing with the provision of the following EU directives: 1. EN 60335-1:2012 + A11:2014 + AC:2014 + A13:2017 +A1:2019 + A14:2019 + A2:2019 2. EN 60335-2-2:2010 + A11:2012 + A1:2013 Low Voltage Directive 2014/35/EU 3.

  • Page 35: Weee Information

    WEEE Information Correct Disposal of this product . This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

  • Page 36: Warranty Information

    Warranty Information The warranty period depends on the laws of the country in which the product is sold, and the warranty is the responsibility of the seller. The warranty only covers defects in material or workmanship. The repairs under warranty may only be carried out by an authorized service centre. When making a claim under the warranty, the original bill of purchase (with purchase date) must be submitted.

This manual is also suitable for:

Auto-empty dock aed02hrr
