- Page 1 Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu...
- Page 2 Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model...
- Page 3 2014/30/EU. Parts intended to come into contact with food conform to 1935/2004/EC. IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU. At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer providing appliance recycling services.
- Page 4 To avoid interference between your hob and a pacemaker, your pacemaker must be designed and programmed in compliance with the regulations that apply to it. As such, CDA guarantee only that our product is compliant. With regard to the compliance of the pacemaker or any potential incompatibility, you should obtain information from the manufacturer or your attending physician.
- Page 5 Important • Do not use the hob if the glass surface is cracked or damaged to prevent the risk of electric shock. Disconnect it from the power supply. • Ensure that the power cables of connected electrical appliances near the hob are not in contact with the cooking zones. Important: Please refer to page 20 for information on configuring the power consumption mode correctly.
- Page 6 Cooking on induction The principle of induction cooking is based on magnetic effect. When you put your cookware on an induction zone and switch it on, the electronic boards in the hob produce induced currents in the base of the cookware and instantly raise its temperature. This heat is then transferred to the food inside the cookware.
-
Page 7: Control Panel

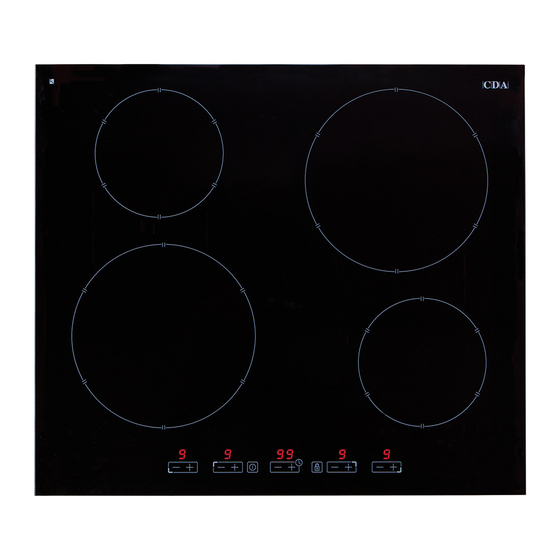

Control panel Zones: 1. Front left 1.5 kW (2.0kW boost) 210 mm 2. Back left 1.2 kW (1.6kW boost) 145 mm 3. Back right 1.5 kW (2.0kW boost) 210 mm 4. Front right 1.2 kW (1.6kW boost) 145 mm Control panel: 5. -
Page 8: Using Your Hob
Using your hob To switch the hob on To switch the power on, touch and hold the key for approximately two seconds. The hob will beep and all four zone displays will show zero. Please note: If a power level is not set within ten seconds, the hob will switch off automatically. - Page 9 Booster The hob is equipped with a booster function, allowing a higher power level than the maximum for approximately ten minutes. To turn on the booster function, touch the “+” key when the power level is already set at 9. “P” will show in the display. To cancel the booster at any time, touch the “-”...
-
Page 10: Safety Key Lock
At the end of the timer, the selected zone will switch off and the timer display and the zone timer LED will flash. The hob will beep for approximately one minute. To switch off the beep and the flashing displays, touch any key. To cancel the timer Touch the timer “+”... -
Page 11: Residual Heat Indicators
Use of the safety key lock when the hob is off The safety key lock LED is illuminated to show the childlock is on. Use of the safety key lock when the hob is in use The safety key lock LED is illuminated to confirm that the lock is switched on and no adjustments can be made to any of the zones or the timer. -
Page 12: Temperature Limiter
Small object safety Anything left on the control panel (e.g. cutlery or towels) will cause the hob to switch off automatically and there will be a beep every ten seconds until the obstruction is removed. Temperature limiter The hob is equipped with a temperature limiting sensor that will switch off the zone and show “C”... -
Page 13: Efficient Use Of Your Hob
Efficient Use of Your Hob The hob is equipped with zones of different sizes, designed to accommodate most shapes and sizes of pan. For best results, only use pans with flat bottoms and choose an appropriate zone depending on the size of the pan. The most efficient use of the hob is shown below, where the pan and zone are correctly chosen. -
Page 14: Care And Maintenance
Care and Maintenance Always disconnect the appliance from the power supply before undertaking any cleaning or maintenance. Important: • Steam cleaners must not be used when cleaning this appliance. • You should use a non-abrasive cleaner to clean the hob top. Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings. -
Page 15: Troubleshooting
In the event of a fault with the hob, please advise CDA Customer Care of any fault code shown on the display. Contact CDA Customer Care A : Customer Care Department, The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu... - Page 16 IMPORTANT - PLEASE NOTE: In the event of any breakage, crack or cracking – even minimal – of the vitroceramic glass, immediately disconnect your appliance to prevent a risk of electric shock and contact CDA Customer Care. Contact details can be found on page 15 of this manual.
-
Page 17: Fitting The Hob
Fitting the Hob Unpacking the hob: Take care not to lose or mishandle any parts. Fitting position of the hob: This appliance must be installed a minimum of 50mm from any back wall and a minimum of 180mm away from any adjacent vertical surfaces, e.g. - Page 18 recommended) (Fig. 4). If the instructions supplied with the hood dictate that the hood must be installed at a height greater than 600mm, then that height is the minimum required. Wall furniture requirements: The minimum height of any cabinet immediately above the hob is 900mm.
-
Page 19: How To Install The Hob
How to Install the Hob Top rail removed to allow air to exit. Recommended 560mm x 6mm Overall dimensions of the hob: Width: 580 mm Depth: 510 mm Worktop cut-out dimensions: Width: 560 mm Depth: 490 mm 1. Make the required hole in the worktop. -
Page 20: Power Configuration
Power Configuration This hob can be connected to a 13, 16, 25 or 32Amp supply and configured to work on any of these power settings. If the hob is connected to a 32Amp supply all four zones can be used on the maximum setting with boost at the same time. - Page 21 All displays will show “8” and then switch off. The childlock will be switched back on automatically, and the hob is now configured ready for use. NOTE: • On first use the power setting is factory set to 7.2kW. • In the event of power supply interruption, the hob will remember the previous configuration setting when the power supply is restored.
-
Page 22: Mains Electricity Connection
Mains Electricity Connection Warning! this appliance must be earthed We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.T. and local regulations. This hob is intended to be connected to permanent, fixing wiring and dependent on the power configuration is intended to be connected to a 13A supply or connected via a 13A plug. - Page 23 Any service call arising from incorrect installation may result in a charge. E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the right to change specifications without prior notice.
- Page 24 NOTES:...
- Page 25 NOTES:...
- Page 26 NOTES:...
- Page 27 Energy E ciency Information Attribute Symbol Value Units CDA model HN6411FR Type of hob Built in Number of cooking zones and/or areas Heating technology (induction cooking Induction zones and cooking areas, radiant cooking zones cooking zones, solid plates) For circular cooking zones or area: Ø...
