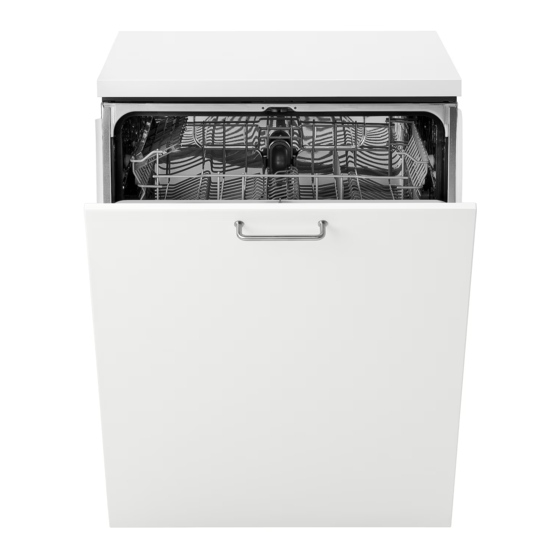

IKEA LAGAN Manual

Hide thumbs Also See for LAGAN:
Table of Contents

Advertisement

Quick Links

Download this manual
TW
LAGAN
305.089.93

Advertisement

Table of Contents
loading

Related Manuals for IKEA LAGAN

Summary of Contents for IKEA LAGAN

  • Page 1 LAGAN 305.089.93...
  • Page 2 ENGLISH For the IKEA appointed Authorized Service Centre, please refer to www.IKEA.com and select your local store for phone numbers and opening times.
  • Page 3 ENGLISH...

  • Page 4: Table Of Contents

    Troubleshooting Control panel Technical information Programme selection Environmental concerns Basic settings IKEA GUARANTEE Before first use Daily use Subject to change without notice. Safety information Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage.
  • Page 5 ENGLISH Children shall not carry out cleaning and user maintenance • of the appliance without supervision. General Safety This appliance is intended to be used in household and • similar applications such as: farm houses; staff kitchen areas in shops, offices and –...

  • Page 6: Safety Instructions

    ENGLISH Safety instructions Installation mains plug fuse, use only a 13 A ASTA (BS 1362) fuse (UK and Ireland only). Warning! Only a qualified person must install this appliance. Water connection • Remove all the packaging. • Do not cause damage to the water hoses. •...

  • Page 7: Product Description

    ENGLISH complete. Some detergent may remain • To replace the internal lighting, contact on the dishes. the Authorised Service Centre. • Do not store items or apply pressure on Service the open door of the appliance. • The appliance can release hot steam if •...

  • Page 8: Control Panel

    ENGLISH Lower spray arm Cutlery basket Filters Lower basket Rating plate Upper spray arm Salt container Upper basket Rinse aid dispenser Detergent dispenser Control panel On/Off button / Reset button Power Clean button Delay start button AUTO programme button Indicators Programme buttons...

  • Page 9: Programme Selection

    ENGLISH Indicators Indicator Description Rinse aid indicator. It is on when the rinse aid dispenser needs refilling. Re‐ fer to "Before first use". Salt indicator. It is on when the salt container needs refilling. Refer to "Be‐ fore first use". Machine Care indicator.
  • Page 10 ENGLISH Programs overview Programme Type of load Degree of soil Programme phases Options • Crockery • Fresh • Wash 50 °C • • Cutlery • Intermediate rinse • Final rinse 45 °C • AutoOpen • All types of • All degrees •...

  • Page 11: Basic Settings

    ENGLISH Water (l) Energy (kWh) Duration (min) 1) 2) Programme 9.1 - 11.1 1.01 - 1.13 0.936 8.2 - 11.2 0.67 - 1.08 120 - 170 Machine Care 8.4 - 10.2 0.60 - 0.71 1) The pressure and the temperature of the water, the variations of the mains supply, the options, the quantity of dishes and the degree of soil can change the values.
  • Page 12 ENGLISH available settings. For each setting, a The higher the content of these minerals, dedicated indicator flashes: the harder your water is. Water hardness is measured in equivalent scales. The water softener should be adjusted according to the hardness of the water in your area.
  • Page 13 ENGLISH The rinse aid empty notification Caution! Do not try to close the appliance door within 2 minutes The rinse aid helps to dry the dishes without after automatic opening. This can streaks and stains. It is automatically cause damage to the appliance. released during the hot rinse phase.

  • Page 14: Before First Use

    ENGLISH setting is on) or off (= the setting is off). • For the settings with multiple values (levels), the light flashes. The number of flashes indicates the current setting value (e.g. 5 flashes + pause + 5 flashes... = level 5). 2.
  • Page 15 ENGLISH Filling the salt container Filling the rinse aid dispenser Put 1 litre of water in Put 1 kg of salt in the the salt container salt container. (only for the first time). To adjust the released quantity of rinse aid, turn the selector between Turn the cap of the position 1 (lowest...

  • Page 16: Daily Use

    ENGLISH Daily use 1. Open the water tap. 2. Press and hold until the appliance is activated. 3. Fill the salt container if it is empty. 4. Fill the rinse aid dispenser if it is empty. 5. Load the baskets. 6.
  • Page 17 ENGLISH Power Clean is not a permanent If you cancel the delay start, you option and must be activated have to select the programme every time before you start a again. programme. How to cancel a running programme It is not possible to activate or deactivate Power Clean while a Press and hold for about 3 seconds.

  • Page 18: Hints And Tips

    ENGLISH Hints and tips General Using salt, rinse aid and detergent Follow the hints below to ensure optimal • Only use salt, rinse aid and detergent cleaning and drying results in daily use and designed for dishwasher. Other products to protect the environment. can cause damage to the appliance.

  • Page 19: Care And Cleaning

    ENGLISH 3. Start the Quick 30' programme. Do not copper as they could crack, warp, get add detergent and do not put dishes in discoloured or pitted. the baskets. • Do not wash in the appliance items that 4. When the programme is completed, can absorb water (sponges, household adjust the water softener according to cloths).
  • Page 20 ENGLISH results. It removes limescale and grease Cleaning the filters buildup. When the appliance senses the need for cleaning, the indicator is on. Start the Machine Care programme to clean the appliance interior. How to start the Machine Care programme Before starting the Machine Care programme, clean the filters and Make sure that there...
  • Page 21 ENGLISH Cleaning the lower spray arm We recommend to clean the lower spray arm regularly to prevent soil from clogging the holes. Clogged holes can cause unsatisfactory washing results. Put the flat filter (A) Reassemble the back in place. Make filters (B) and (C).

  • Page 22: Troubleshooting

    ENGLISH Troubleshooting Refer to the below table for information on Warning! Improper repair of the possible problems. appliance may pose a danger to the safety of the user. Any repairs must be performed by qualified personnel. The majority of problems that may occur can be solved without the need to contact an Authorised Service Centre.
  • Page 23 ENGLISH Problem and alarm code Possible cause and solution The appliance stops and • It is normal. It provides optimal cleaning results and ener‐ starts more times during op‐ gy savings. eration. The programme lasts too • If the delay start option is set, cancel the delay setting or long.
  • Page 24 ENGLISH The dishwashing and drying results are not satisfactory Problem Possible cause and solution Poor washing results. • Refer to "Daily use", "Hints and tips" and the basket loading leaflet. • Use more intensive washing programme. • Activate the Power Clean option to improve the washing results of a selected programme.

  • Page 25: Technical Information

    ENGLISH Problem Possible cause and solution There are residues of deter‐ • The detergent tablet was stuck in the dispenser and gent in the dispenser at the therefore was not completely washed away by water. end of the programme. • Water cannot wash away the detergent from the dis‐ penser.

  • Page 26: Environmental Concerns

    Replaced parts become the property of IKEA. This guarantee is valid for two (2) years from the original date of purchase of your What will IKEA do to correct the problem? appliance at IKEA. The original sales receipt IKEA appointed Service Provider will examine is required as proof of purchase.
  • Page 27 IKEA appliance in the dedicated IKEA • Transportation damages. If a customer kitchen furniture; transports the product to his home or • ask for clarification on functions of IKEA another address, IKEA is not liable for any appliances. damage that may occur during transport.
  • Page 28 Do you need extra help? For any additional questions not related to After Sales of your appliances please contact your nearest IKEA store call centre. We recommend you read the appliance documentation carefully before contacting...
  • Page 32 21552 © Inter IKEA Systems B.V. 2021 AA-2280238-1...
