instructs you to do this, because any wrong connection may
cause any power or fire risk.
Do not place this device on an unstable surface or support.

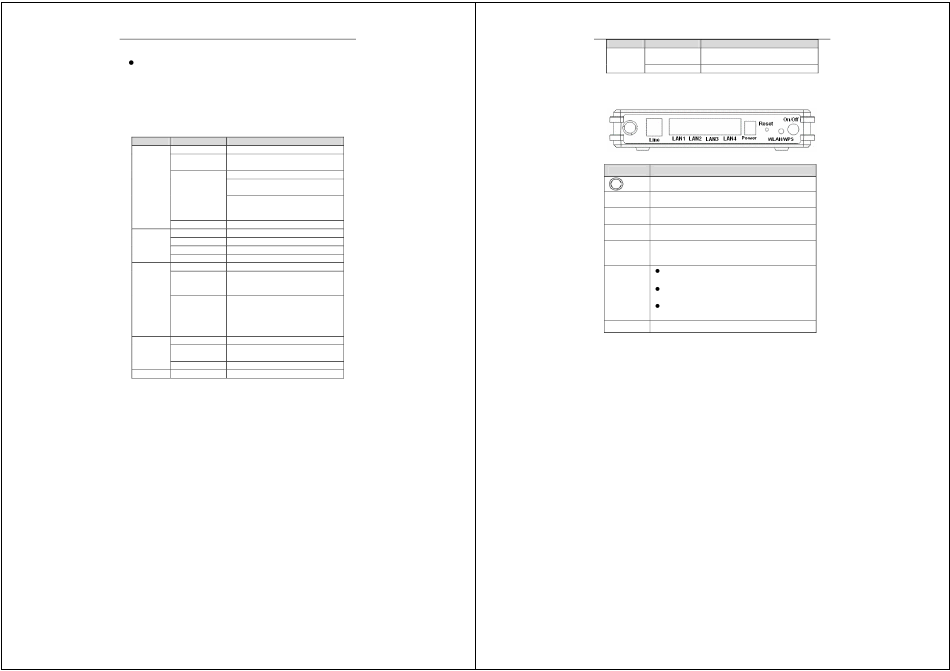

1.5 LED Status Description

1.5.1 Front Panel

Indicator Status Description
Off The power is off.
The power is on and the device operates
Green
normally.
The power is self-testing.
The device enters the console mode of
Power
the boot loader.
Red
The self-testing of the power fails if the
LED is always red.
Blink Red Upgrading software.
Off No signal is detected.
Slow Blink Green The DSL line is transferring.
ADSL
Fast Blink Green The DSL line is training.
Green The DSL line connection is established.
Off No PPPoA or PPPoE connection
The PPPoA or PPPoE connection is
Green established. The users can access the
Internet.
Internet
Device attempts to
connected but fails (no DHCP response,
Red no PPPoE response,
authentication failed, no IP address
from IPCP, etc.)
Off No Ethernet signal is detected.
The user data is passing through
LAN1/2/3/4 Blink Green
Ethernet port.
Green Ethernet interface is ready to work
WLAN Off No radio signal is detected.
4
become IP
PPPoE
Error! Style not defined.
Indicator Status Description
The user data is passing through
Blink Green
WLAN port.
Green WLAN interface is ready to work.

1.5.2 Rear Panel

Interface Description
Wireless antenna.
RJ-11 port, using the telephone line to connect the
Line
modem with the ADSL cable or splitter.
RJ-45 port, connect the modem to a PC or other
LAN 1~4
network device.
Power supplied port, plug in for power adapter that the
Power
power input is 12V DC, 1 A.
To restore the factory default, keep the device powered
Reset on and push a needle into the hole. Press down the
button about 3 seconds and then release.
Press the button silently less than 1s to enable
WLAN function.
Press the button for more than 5s to enable to
WLAN/WPS
enable WPS function.
If you press the button between 1s and 5s, no
function takes effective.
On/Off Power switch.

2 Hardware Installation
