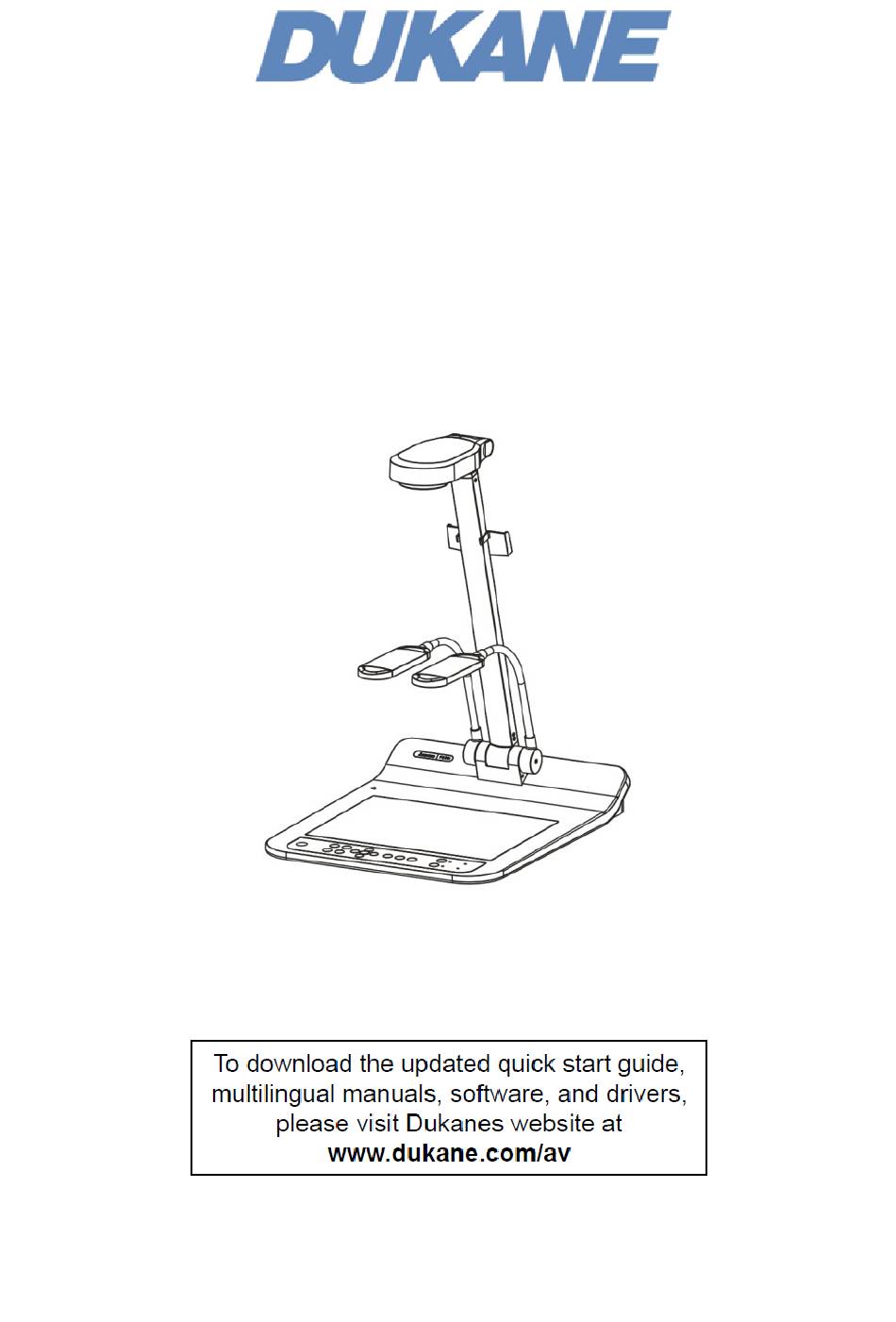

- Page 1 Document Camera DVP510B VISUAL PRESENTER User Manual DVP510B User Manual...
-
Page 2: Table Of Contents
Installation and setup ................9 Connecting to a projector or monitor ..........9 Connecting to a Computer and Use Software or an Dukane Interactive Whiteboard (IWB) ............. 9 Connecting to an HDTV ..............10 For connection to Computer or DVD ..........10 Connecting to a computer, projector, and monitor simultaneously .. - Page 3 I would like to make text clearer and photos more colorful ....24 I would like to zoom in/out images ........... 25 I would like to use the manual focus ..........25 I would like to adjust the brightness ..........25 I would like to turn on/off the lamp ............
-
Page 4: Copyright Information
Copyright Information Copyrights Dukane Corp . All rights reserved. Dukane is a trademark that is currently being registered by Dukane Corp. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Dukane unless copying this file is for the purpose of backup after purchasing this product. -
Page 5: Chapter 1 Safety Instructions
Chapter 1 Safety Instructions Always follow these safety instructions when setting up and using the Document Camera: 1. Do not place Document Camera in tilted position. 2. Do not place the Document Camera on an unstable trolley, stand or table. 3. -
Page 6: Precautions
Precautions Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. This Document Camera has a 3-wire AC line Plug. This is a safety feature to ensure that the plug will fit into the power outlet. Do not try to disable this safety feature. -
Page 7: Chapter 2 Package Contents
Chapter 2 Package Contents DVP510B Quick Start Guide Remote Control Remote control Power Adapter Holder Power cord USB cable VGA cable Appearance may vary depending on country/region Audio Cable C-Video Cable Microscope Adapter English -... -
Page 8: Chapter 3 Product Overview
Chapter 3 Product Overview Lens Remote sensor Remote Control Holder Camera arm switch setting Auxiliary floodlight and lamp arm Input/output port Backlight Control panel 3.1 Relative Operation Position Projector Computer English -... -
Page 9: Chapter 4 Installation And Connections
Chapter 4 Installation and Connections 4.1 System diagram Projector or monitor DVD or Computer Computer Computer 或營幕\ 或營幕\ Projector or Computer HDTV Speaker Computer monitor English -... -
Page 10: Installation And Setup
4.4 Connecting to a Computer and Use Dukane Software or an Interactive Whiteboard (IWB) Projector Power USB cable Adapter VGA cable Power cord USB cable AC outlet Computer The driver and software can be downloaded from Dukane website. English-... -
Page 11: Connecting To An Hdtv
4.5 Connecting to an HDTV HDMI cable Power Adapter Power cord AC outlet HDTV 4.6 For connection to Computer or DVD HDMI cable HDMI cable Power Adapter Power cord DVD or Computer AC outlet HDTV English-... -
Page 12: Connecting To A Computer, Projector, And Monitor Simultaneously
4.7 Connecting to a computer, projector, and monitor simultaneously Power Adapter VGA cable VGA cable VGA cable Power cord AC outlet Monitor Projector Computer Press [SOURCE] button to switch the image source. For VGA 1 setting, refer to 7.2 I would like to switch image sources. -
Page 13: Connecting To A Computer With Rs232
Power Adapter RS232 Cable Power cord AC outlet Computer After connecting to the RS232 cable, you can use RS232 commands to control DVP510B. 4.10 Connecting to a TV DIP switch setting Power Adapter C-Video Cable Power cord AC outlet ... -
Page 14: Installing Application Software
<Note> Only the live image can be displayed in C-Video output mode. 4.11 Installing application software The application software installed on the computer enables you to: Control the DVP510B Capture and record images. Annotate the image, highlight important details and save it. -
Page 15: Chapter 5 Start Using
Chapter 5 Start Using <Note>: Please adjust it to be suitable for the local voltage frequency of 50/60 Hz. For the frequency in actual use, please refer to the manual (Appendix 1. Pull up the camera and the camera arm. The camera should aim at the center of the presenter. - Page 16 When using the remote control, aim at the remote sensor on the DVP510B, and press the power button. Once DVP510B is turned on, the LED on the control panel will flash a few times and stay lit. Please contact your distributor if the LED does not light up.
-
Page 17: Chapter 6 Control Panel/Remote Control And Setting Menu
Chapter 6 Control Panel/Remote Control and Setting Menu 6.1 Functions of control panel and remote control <Remark> The below functions are listed alphabetically Name Function Descriptions Operation Turn on and off the Document Camera. Remote control/ Control panel ,,, Move up, down, left or right to select the Remote control/ needed function. - Page 18 Image comparison (to compare live Remote control images with stored image files). PLAYBACK Read files stored in the USB disk (priority) Remote control/ or internal memory. Control panel Record motion images. Press [Record] to RECORD Remote control/ record images to USB disk and press Control panel [Record] again to stop recording.
-
Page 19: Setting Menu
6.2 Setting menu 6.2.1 Main menu <Remark> Press [MENU] on the remote control or control panel to display the setting menu. Auto Tune Slide Show Automatically adjust the image Show the photos or videos to have the best brightness and stored in the USB disk (priority) focusing performance. - Page 20 6.2.2 Setting menu Level Level Minor Level Major Function Descriptions Items Adjustment Values Items Single Capture/ Use the left and right arrow keys Capture Mode Time Lapse/ to select capture mode. Record/Off 1 hr 2 hr Use the left and right arrow keys 4 hr to select the capture time.
- Page 21 Regardless of outside environment, the machine will Auto Exposure On/Off adjust the brightness to the optimal condition. Use the left and right arrow keys to select. Regardless of outside light or Auto White color, the machine will adjust the Enter Balance color to the optimal condition;...
- Page 22 Use the left and right arrow keys to turn on/off the auto erase function. Auto Erase On/Off When [On] is selected, the stored images will automatically be deleted when the system is turned off. Read the value of the current image mode.
- Page 23 6.2.4 Spotlight mode setting menu Level 3rd Level Level Major Function Descriptions Minor Items Adjustment Values Items Press [ENTER] to return to live Live Enter image. Use the left and right arrow keys to select the shape of the Shape Ellipse/Rectangle spotlight zone.
- Page 24 6.2.6 Annotation Tools After the mouse is connected, right click or left click and hold the mouse to start the tools. <Note> When the setting menu is activated, the tools cannot be used. Icon Description Custom tool 1 Custom tool 2 Eraser Clear all Open setting menu of the annotation tool...
-
Page 25: Chapter 7 Descriptions Of Major Functions
I would like to set the image source of VGA OUT2 The default of image source is based on VGA OUT (1). Press [SOURCE 2] on the control panel to have DVP510B switch among the following images sources: 1. VGA OUT(1). -
Page 26: I Would Like To Zoom In/Out Images
[Text]: for viewing text files, making the text clearer. [Gray]: for viewing black & white photos which will make the grayscale differentiation distinct. 7.5.2 Set up Photo/Text mode To change the settings, please use the remote control or the control panel: 1. -
Page 27: I Would Like To Freeze Images
7.10 I would like to freeze images 1. Press [FREEZE] on the remote control or control panel to freeze the current image on the screen. Press again to defreeze. 7.11 I would like to rotate the image Remote control: 1.Press [ROTATE] key to rotate the screen. (The sequence of switching is: 0°/180°/Flip/Mirror) Control panel: 1. -
Page 28: I Would Like To Record Images
9. Press [MENU] to exit. 7.13 I would like to record images <Note> Connect USB disk to DVP510B to start recording images. 7.13.1 Recording motion images <Remark> You may not be able to capture or record images when [Capture Image] mode is set to [Disable]. -
Page 29: I Would Like To View Captured/Recorded Images
5. Press [] to find [Image Quality]. 6. Press [] or [] to select among [High/Medium/Low]. 7. Press [MENU] to exit. 7.13.3 Recording setup 1. Press [MENU] on the remote control or control panel to activate the setting menu. 2. Press [], [], [], or [] to select [Setting]. 3. -
Page 30: I Would Like To Delete The Captured/Recorded Images
7.15 I would like to delete the captured/recorded images Use the remote control or control panel: 1. Press [PLAYBACK] to show the thumbnails of all stored files. 2. Press [], [], [], or [] to select the file you want to delete. 3. -
Page 31: I Would Like To Use The Mask And Spotlight Function
Use control panel: 1. Press [MENU] to activate the setting menu. 2. Press [], [], [], or [] to select [PAN]. 3. Press [ENTER] to execute. 4. Press [], [], [], or [] to move and view the partial enlarged images. 5. -
Page 32: I Would Like To Play The Slides (Slide Show)
7.19.3 I would like to set spotlight function In Spotlight mode, use the remote control or control panel: 1. Press [MENU] to activate the image OSD menu. 2. Press [] or [] to select the item to be modified [Shape/Transparency/ Step/V Size/H Size]. -
Page 33: I Would Like To Compare Images (Compare Live Images With Stored Image Files (Pip))
7.21 I would like to compare images (compare live images with stored image files (PIP)) This function will compare and contrast a live image with a stored image. Live image Stored image Remote control: 1. Press [Playback] to activate the Playback image thumbnails. 2. -
Page 34: I Would Like To Change The Power On Image
2.1. Press [MENU] on the remote control or control panel to activate the setting menu. 2.2. Press [], [], [], or [] to select [Setting]. 2.3. Press [ENTER] to activate. 2.4. Press [] or [] to select [Control]. 2.5. Press [] to [Projector Type]. 2.6. -
Page 35: I Would Like To Use A Usb Disk
1. Insert the USB disk and a [Copy To USB Disk] dialog box will appear, and you are asked whether to copy files from DVP510B to the USB disk. Press [] or [] on the remote control or control panel to select. - Page 36 7.26.1 I would like to insert a photo in MS-Paint 1. Click [File/From Scanner or Camera] in MS-Paint as shown in the bottom left figure. 2. Click [Capture] to get the live images, as shown in the top right figure. 3.
- Page 37 English-...
-
Page 38: Chapter 8 Connecting To Microscope
Ø 28 mm, Ø 31 mm, Ø 33 mm, and Ø 34 mm. 2 The lens of DVP510B connects with the microscope adapter For eyepieces of Ø 33 mm or Ø 34 mm, only fit one microscope adapter (with the greatest diameter). - Page 39 3 Select the [Microscope] mode 3.1. If you use the remote control or the control panel 3.1.1. Press [MENU] to enter the setting menu. 3.1.2. Press [], [], [], or [] to select [Image Mode]. 3.1.3. Press [] or [] to the [Microscope]. 3.1.4.
-
Page 40: Chapter 9 Packing The Machine
Chapter 9 Packing the Machine Put the remote control back to the holder. Fold back the camera head to align with the arm. Turn the two lamp arms and the arm of camera head down and adjust them to be parallel with the platform. Finally, fold the machine as in the following figure. -
Page 41: Chapter 10 Dip Switch Setting
Chapter 10 DIP switch setting <Note> You should unplug and reconnect the power cord, and then restart the DVP510B for all DIP switch settings to take effect. 10.1 Connecting to a projector or monitor 10.1.1 XGA 60 Hz output (default values) XGA 50 Hz output 10.1.2 SXGA 60Hz... -
Page 42: Connecting To A Tv/Dvd
10.2 Connecting to a TV/DVD 10.2.1 NTSC: USA, Taiwan, Panama, Philippines, Canada, Chile, Japan, Korea, and Mexico. 60Hz 50Hz 10.2.2 PAL: Countries/regions not listed above. 60Hz 50Hz <Remark> VGA is not supported once C-VIDEO is enabled. English-... -
Page 43: Chapter 11 Troubleshooting
Chapter 11 Troubleshooting This chapter describes problems you may encounter while using DVP510B. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact our distributors or service center. - Page 44 Check to see if the Firmware version of applicable to the your machine is up-to-date. Please go to Dukane's official website to check machine whether the latest version is available for update. www.dukane.com\av The steps to check the FW version are as below: 2.1 Press [MENU] on the remote control or control...
- Page 45 VGA IN/HDMI IN image output is not available through USB The output Please refer to the Appendix 1 in the manual to confirm image is not the applicable voltage frequency, and reset it according clear with water to the instruction in Chapter 10 DIP Switch Setting.
- Page 46 Appendix 1 Power frequency for each country in the world Region or Country Region or Country Region or Country English English English 50 China 50 Guam Afghanistan Algeria 50 Colombia 60 Grenada Angola Congo 50 Guatemala Antiqua 50 Costa Rica 60 Guinea Argentina 50 Cuba...
- Page 47 Region or Country Region or Country Region or Country English English English Mali Rep. 60 Tobago Puerto Rico Malta 50 Qatar 50 Tunisia Martinique 50 Rhodesia 50 Turkey Mauritania 50 Romania 50 Uganda Mauritius 50 Rwanda 50 USA. Saudi Mexico USSR Arabia Monaco...
