AQUAMAXX HOB-1.5 Installation Manual

Hang-on-back protein skimmer

Download this manual

Please open the package carefully, and check if there's any damaged

or missing part.

HOB-1.5

Collection Cup with

lid /

drain tube /

O-ring

Air Hose

Air Silencer with lid

Inlet set

Outlet

Diffuser

SHARK 1.0 pump

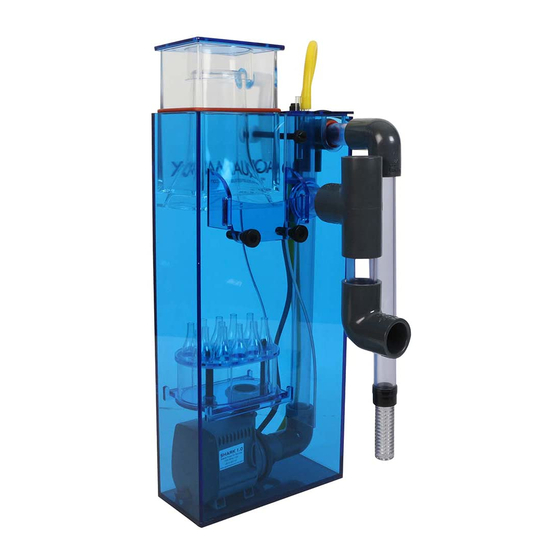

Hang-On-Back Protein Skimmer

Installation Guide

Please wash your new VS-1.5 and SHARK 1.0 pump with ONLY

warm water and sponge before assembly. Pull out the inside plate

to wash the main body. Never clean acrylic with alcohol-based

products. Use caution when handling acrylic scratches easily.

Install the diffuser onto the pump, and tighten the screw under the

diffuser. ( DO NOT OVER-TIGHTEN)

Connect the air hose to the pump.

Need help?

Do you have a question about the HOB-1.5 and is the answer not in the manual?

Page 1 HOB-1.5 Hang-On-Back Protein Skimmer Installation Guide Please open the package carefully, and check if there’s any damaged Please wash your new VS-1.5 and SHARK 1.0 pump with ONLY or missing part. warm water and sponge before assembly. Pull out the inside plate to wash the main body.
Page 2 Install the inside plate. Install the inlet which doesn’t have the water intake onto the pump. Install the screw(in accessories pack) into the hole on top of the main body. Gently put the pump (with diffuser and inlet) into the main body. Make sure the base of the diffuser is attached well with the main body.
Page 3 Select a suitable place to set your HOB-1.5 Install the silencer with lid. The aquarium’s water level The water intake must be completely must not be more than 4” submerged underwater when in use. from the aquarium’s rim. Hang the protein skimmer on the 4”...
Page 4 A purchase receipt is required for any warranty service. Products requiring warranty service must be returned to AquaMaxx. You are responsible for the cost of shipping a warranty claim to AquaMaxx and any damages that may occur during transit. Once a returned product has been inspected, it will be repaired or...
