Summary of Contents for Hayward HCV30798

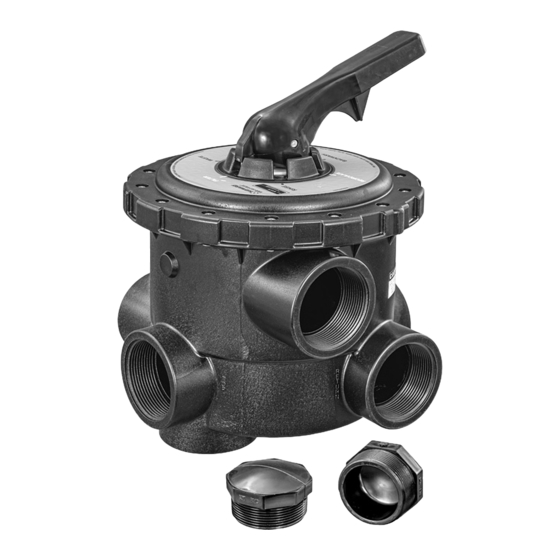

- Page 1 3 Inch Multiport Manual Rev-A Commercial Filter Valve Instruction Manual Model HCV30798 For Filter Model HCF363 SAVE THIS INSTRUCTION MANUAL Hayward Pool Products One Hayward Industrial Drive, Clemmons, NC 27012 Phone: 336-712-9900 www.haywardnet.com...
-
Page 2: Important Safety Instructions
WARNING – This product should be installed and serviced only by a qualified professional. Use of non-Hayward replacement parts voids warranty. ATTENTION INSTALLER - THIS MANUAL CONTAINS IMPORTANT INFORMATION ABOUT THE INSTALLATION, OPERATION, AND SAFE USE OF THIS VARIABLE SPEED DRIVE THAT MUST BE FURNISHED TO THE END USER OF THIS PRODUCT. -
Page 3: Installation
– Failure to install according to defined instructions may result in severe personal injury or death. 2. Installation This valve was designed to be used with a Hayward Pool Products Sand Filter HCF363. This Filter must be purchased separately. 2.1. - Page 4 (item #4) is installed into the valve body port. Also, make sure that the elbow is aligned parallel with the short pipe nipple (item #3) installed in 2.2.2 when tight. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Page 4 of 12...
- Page 5 Assemble the appropriate union half (item #1) onto the other end of this elbow section, insuring that the union flange face is flat and parallel with the union flange face assembled in 2.2.3. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Page 5 of 12 Commercial Filter Valve Adapter Kit...
- Page 6 These 2 unions should come in contact flat and in- line with each other. If they do not, adjust steps 2.2.3, 2.2.5, 2.2.6, and/or 2.2.8 as necessary. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Page 6 of 12 Commercial Filter Valve Adapter Kit...
- Page 7 Figure 2-3 Figure 2-4 USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Page 7 of 12 Commercial Filter Valve Adapter Kit 3 Inch Multiport Manual Rev-A...
-
Page 8: Valve Operation
4. Standard PVC Socket Connection Gluing Practices Solvent cementing of socket end connections to pipe should be performed per ASTM specifications D2855-96. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Page 8 of 12 Commercial Filter Valve Adapter Kit 3 Inch Multiport Manual Rev-A... - Page 9 B: These cure schedules are based on laboratory test data obtained on Net Fit Joints (NET FIT=in a dry fit the pipe bottoms snugly in the fitting socket without meeting interference). USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Page 9 of 12...
-
Page 10: Standard Threaded Connection Practices
HCV28515R0204 SPRING HCV00610R0205 SPRING FRICTION WASHER HCV28515R0203 ROTOR HCV28515R0205 SPIDER GASKET HCV70143R06000 BASE NUT HCV723R0130025 O-RING HCV19028R0103 DRAIN PLUG HCV30798R0001 USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Page 10 of 12 Commercial Filter Valve Adapter Kit 3 Inch Multiport Manual Rev-A... -
Page 11: Warranty
Figure 6-1 7. Warranty USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Page 11 of 12 Commercial Filter Valve Adapter Kit 3 Inch Multiport Manual Rev-A... - Page 12 Hayward Pool Products. To original purchasers of this equipment, Hayward Pool Products warrants its products to be free from defects in materials and workmanship for a period of ONE (1) year from the date of purchase.
