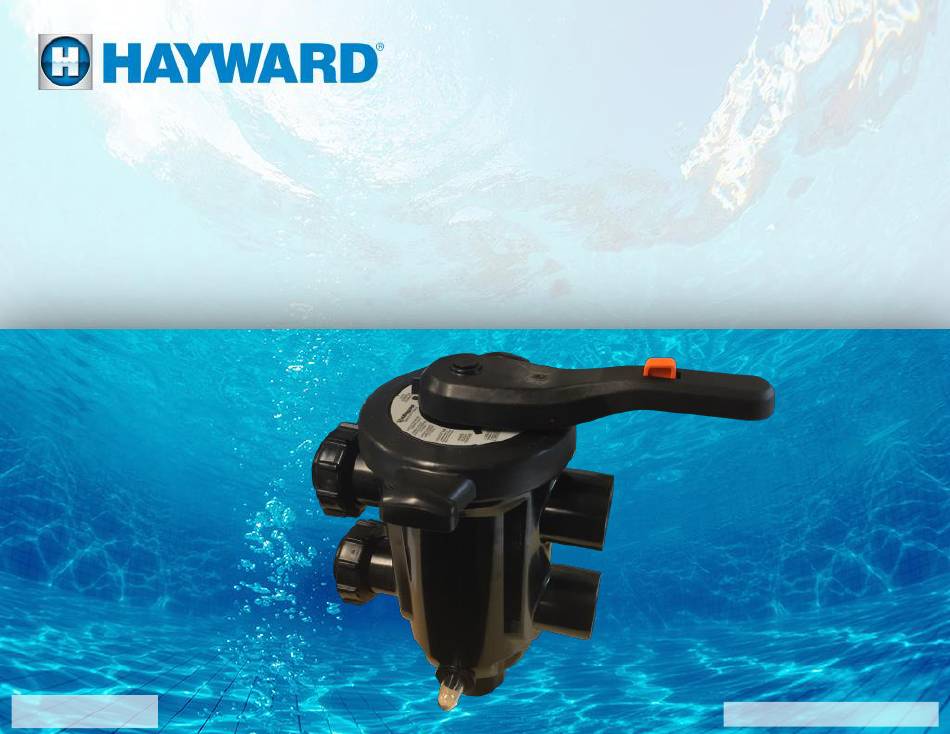

- Page 1 SelectaFlo™ Hi-Efficiency Valve How To Guide HTG-SAFFVa Copyright 2018 Hayward Industries Inc.
- Page 2 Table of Contents How To: Pg. 3-8 Product Overview Function of Valve Positions Handle Installation Assembly Operating Instructions Winterization Disassembly...
- Page 3 Valve: Replacement Parts...
- Page 4 Valve: Product Overview • The SelectaFlo Hi-Efficiency valve is designed Hayward ProGrid DE series filters. • The valve has built in unions to attach to the filter. • The Pump, Return, and Waste ports are 2” SKT x 2 ½ Spigot (solvent weld) connections.
- Page 5 Valve: Function of Valve Positions ALWAYS turn off pump before changing valve position. VALVE FLOW DIRECTION THROUGH VALVE SETTING PUMP – THROUGH FILTER – RETURN For normal filtration and vacuuming pool FILTER through filter. PUMP – THROUGH FILTER – WASTE BACKWASH For cleaning filter.
- Page 6 Valve: Installation: Handle Use the steps provided to install the handle assembly. Step 1 Step 2 Secure the handle to valve by aligning the thin Insert the screw into handle & tighten with a tooth on handle with the thin slot on valve 3/8”...
- Page 7 Valve: Assembly Use the steps provided to install the valve assembly. Step 1 Step 2 Install waste port seal carrier by aligning the Lubricate inward facing seals with silicon lube locating features (arrows) on the carrier and and install seal carriers by firmly pressing them the bottom of the valve body down into their slots.
- Page 8 Valve: Operating Instructions Turn off pump before changing valve position. Step 1 Step 2 Depress button on handle to release handle With button depressed rotate handle to latch. desired valve position. Step 3 Release button on handle, allowing handle to lock into position.
- Page 9 Valve: Winterization Disassembly Turn off pump before disassembling filter control valve. Step 1 Step 2 Rotate lock ring counterclockwise for removal Remove cover assembly. If difficult to remove, of the cover assembly. rock the base of the handle while pulling up. Step 3 Step 4 Using handle, lift hub assembly out of the...
