Commercial Filter Valve
Basic safety precautions should always be followed, including the following: Failure to follow instructions may result in
injury.
This is the safety-alert symbol. When you see this symbol on your pump or in this manual, look for one of the
following signal words, and be alert to the potential for personal injury.
WARNING
warns about hazards that could cause serious personal injury, death or major property damage
and if ignored presents a potential hazard.
CAUTION
warns about hazards that will or can cause minor or moderate personal injury and/or property
damage and if ignored presents a potential hazard. It can also make consumers aware of actions that are unpredictable
and unsafe.
The NOTICE label indicates special instructions that are important but not related to hazards.
Owner's Manual
Models HCV20715 and HCV275
IMPORTANT SAFTEY INSTRUCTIONS
Hayward Commercial
10101 Molecular Dr. Suite 200, Rockville, MD 20850
Phone: 1-800-657-2287
www.hayward-commercial-pool.com
ISHCFVKIT Rev. B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hayward HCV20715
Summary of Contents for Hayward HCV20715

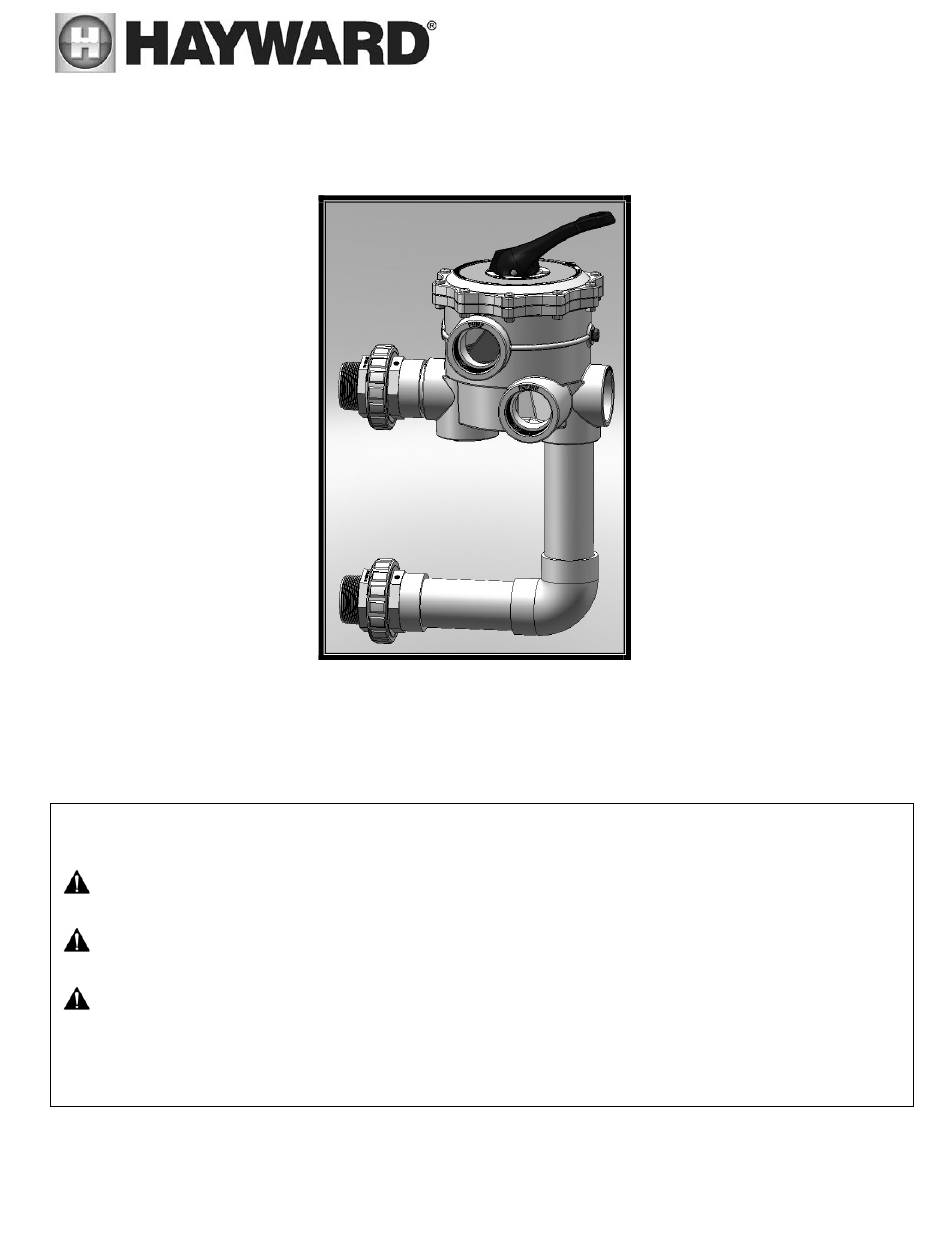

- Page 1 ISHCFVKIT Rev. B Commercial Filter Valve Owner’s Manual Models HCV20715 and HCV275 IMPORTANT SAFTEY INSTRUCTIONS Basic safety precautions should always be followed, including the following: Failure to follow instructions may result in injury. This is the safety-alert symbol. When you see this symbol on your pump or in this manual, look for one of the following signal words, and be alert to the potential for personal injury.
- Page 2 Before starting system pump, fully open filter manual air relief valve. Do not close filter manual air relief valve until a steady stream of water (not air or air and water) is discharged. ® USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Page 2 of 8 2”...

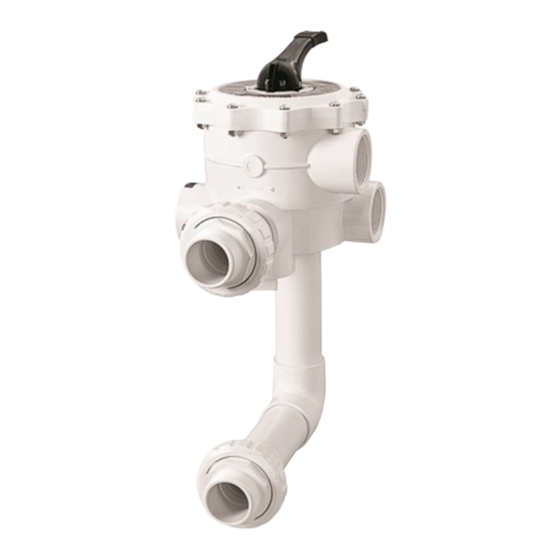

- Page 3 SAVE THESE INSTRUCTIONS 1 Installation The HCV20715 valve is designed to be used with a Hayward Commercial Sand Filter HCF302 or HCF362. The HCV275 valve is designed to be used with a Hayward Commercial Sand Filter HCF302T, HCF342T or HCF362T.
- Page 4 Connect the piping to the “RETURN” to the pool, to the lower port. Connect the “WASTE” to an appropriate drain. Figure 3-1 ® USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Page 4 of 8 2” Commercial Filter Valve ISHCVKIT Rev. B...
-
Page 5: Important Information
• To prevent unnecessary strain on piping system and valving, always shut off pump before switching Filter Control Valve positions. ® USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Page 5 of 8 2” Commercial Filter Valve... - Page 6 SPX0715C Key/ Stem SPX0715D Valve Seat Gasket SPx0710K ¼” Plastic Pipe Plug SPX0710MA Sight Glass with Gasket SX200Z3 O-ring for Union Connector ® USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Page 6 of 8 2” Commercial Filter Valve ISHCVKIT Rev. B...
- Page 7 The express limited warranty above constitutes the entire warranty of Hayward Pool Products with respect to its’ pool products and is in lieu of all other warranties expressed or implied, including warranties of merchantability or fitness for a particular purpose. In no event shall Hayward Pool products be responsible for any consequential, special or incidental damages of any nature.
- Page 8 New Installation Replacement ® Please include me on all e-mail communications regarding Hayward Equipment or promotions. Mail to: Hayward Pool Products, 620 Division Street, Elizabeth, NJ 07207 Installation for: Attn: Warranty Dept In Ground Above Ground Or REGISTER YOUR WARRANTY ON-LINE AT WWW.HAYWARDPOOL.COM...
