Assembly Instructions

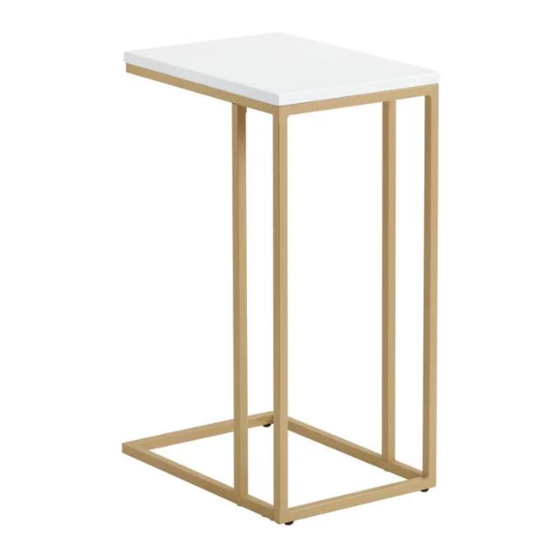

RYDER LAPTOP TABLE
SKU-574837, 574838
THANK YOU FOR YOUR PURCHASE. IF YOU HAVE ANY QUESTIONS
PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT
THE NEAREST COST PLUS WORLD MARKET STORE.
IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL
CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE.
NOT FOR COMMERCIAL USE.
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for World Market RYDER 574837
Summary of Contents for World Market RYDER 574837
- Page 1 THANK YOU FOR YOUR PURCHASE. IF YOU HAVE ANY QUESTIONS PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT THE NEAREST COST PLUS WORLD MARKET STORE. IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER TOLL FREE AT 877-967-5362 FOR ASSISTANCE.
- Page 2 Component List LABEL DESCRIPTION Top Panel Upper Support Frame Lower Support Frame Back Side Frame Vertical Support Bars Hardware LABEL DESCRIPTION Small Allen Bolt (Ø1/4”x1/2” Large Allen Bolt (Ø1/4”x1” Button Head Allen Bolt (Ø1/5”x1/2” Spring Washers (Ø2/5”xØ1/4”) Tool List LABEL DESCRIPTION Allen Key 4-1/3”...
- Page 3 Assembly Preparation ● Unpack all hardware bags and components to ensure you have all parts - ● Read instructions, cover to cover - ● Have two adults on hand for assembly - ● Do not assemble on flooring or carpet - ●...
- Page 4 Assembly Steps: Step 1 (T-1) Allen Key 4-1/3” x 1-1/6” (H-3) Button Head Allen Bolt (Ø1/5”x1/2” 8 PCS Attach Upper Support Frame (B) and Lower Support Frame (C) to Back Side Frame (D) by sliding both frames over the metal blocks on Back Side Frame (D) as shown. Secure the frames using Button Head Allen Bolts (H-3).
- Page 5 Assembly Steps: Step 2 (T-1) Allen Key 4-1/3” x 1-1/6” (H-1) Small Allen Bolt (Ø1/4”x1/2” 2 PCS (H-2) Large Allen Bolt (Ø1/4”x1” 2 PCS (H-4) Spring Washers (Ø2/5”xØ1/4”) 2 PCS Attach Vertical Support Bars (E) to the Upper Support Frame using Small Allen Bolts (H-1) and Spring Washers (H-4), stacking the hardware in the order as shown.
- Page 6 Assembly Steps: Step 3 (T-1) Allen Key 4-1/3” x 1-1/6” (H-1) Small Allen Bolt (Ø1/4”x1/2” 4 PCS (H-4) Spring Washers (Ø2/5”xØ1/4”) 4 PCS Place the Top Panel (A) upside down onto a padded, non-marring surface. Attach the assembled base frame (from Step 2) to Top Panel (A) and secure using 4 Small Allen Bolts (H-1) and 4 Spring Washers (H-4), stacking the hardware in the order as shown.
- Page 7 Assembly Steps: NOTE: Levelers can be used for adjustment if needed. Carefully turn the table upright and then it is now ready for use. Page 7...
- Page 8 Care & Maintenance Do not put hot items directly on furniture surface. Do not clean furniture with harsh cleansers or polish. Do not place furniture in direct sunlight. Do not place furniture near heating or cooling vents. Do not write on furniture without a padded barrier to protect the surface. Do not place furniture outside.
