Assembly Instructions

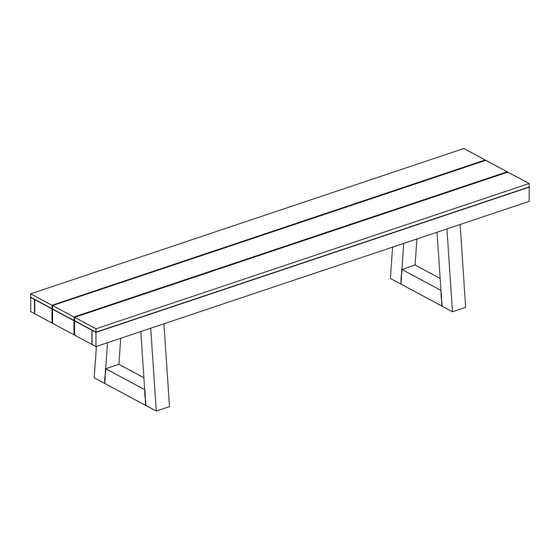

Rayne Charcoal Dining Bench
SKU 692609
Thank you for your purchase. If you have any questions pertaining to the assembly of this
furniture piece, please contact the nearest World Market store. If you are not near a store,
please call our customer service call center toll free at 877-967-5362 for assistance.
ALL PRODUCTS SOLD AT WORLD MARKET ARE NOT
FOR COMMERCIAL USE AND ARE INTENDED FOR
RESIDENTIAL USE ONLY.
2023.08.07
Page 1
Advertisement
Table of Contents
Related Manuals for World Market Rayne 692609
Summary of Contents for World Market Rayne 692609
- Page 1 Thank you for your purchase. If you have any questions pertaining to the assembly of this furniture piece, please contact the nearest World Market store. If you are not near a store, please call our customer service call center toll free at 877-967-5362 for assistance.
-
Page 2: Component List
Component List LABEL PICTURE DESCRIPTION Bench Top Right Leg Left Leg Page 2... -
Page 3: Hardware List
Hardware List Allen Bolt M8 x 50mm Flat Washer M8 x 20 x 2mm Spring Washer M8 x 12 x 2mm Hexagonal Nut M8 x 13 x 6mm U Washer 22 x 17 x 2mm Tool List Open Wrench 13 x 90 x 2mm Allen Key 4 x 110 x 30mm Page 3... -
Page 4: Assembly Preparation
Assemble on a clean non-marring surface (such as the product’s packing foam). Do not discard any packaging until the product has been fully assembled. In case of missing parts, please contact your nearest World Market store or call our customer service call center at call 1-877-967-5362. - Page 5 NOTE: Two people are required for this assembly step. Ensure you have help before proceeding. Step 1 (H-2) Flat Washer (M8) x 4 (H-3) Spring Washer (M8) x 4 (H-4) Hexagonal Nut (M8) x 4 (T-1) Open Wrench x 1 Using a second person to assist you, lay Bench Top (A) upside down onto a padded, non-marring surface Position Left Leg (B), Right Leg (C) as shown, inserting the hanger bolts through the pre-drilled corner holes on Bench...
- Page 6 Step 3 (H-2) Flat Washer (M8) x 4 (H-3) Spring Washer (M8) x 4 (H-4) Hexagonal Nut (M8) x 4 (T-1) Open Wrench x 1 Insert the dowels in Leg Support Stretcher (D) into the receiving holes in remaining Right and Left Legs (B and C) as shown.
- Page 7 Step 5 ADJUSTABLE LEVELER Levelers are located on the bottom of each leg and may be used for additional adjustment if needed for uneven surfaces. Using a second person to assist you, carefully turn the Bench right side up. Assembly is now complete and the product is ready for use.
- Page 8 Page 8...
- Page 9 Customer Service Call Center, Toll Free at 877-967-5362. For valid warranty claims, World Market will repair or replace the product, or offer a full or par al credit, in the sole discre on of World Market. This LIMITED ONE-YEAR WARRANTY gives you specific legal rights and you may also have other rights which vary from state to state.
