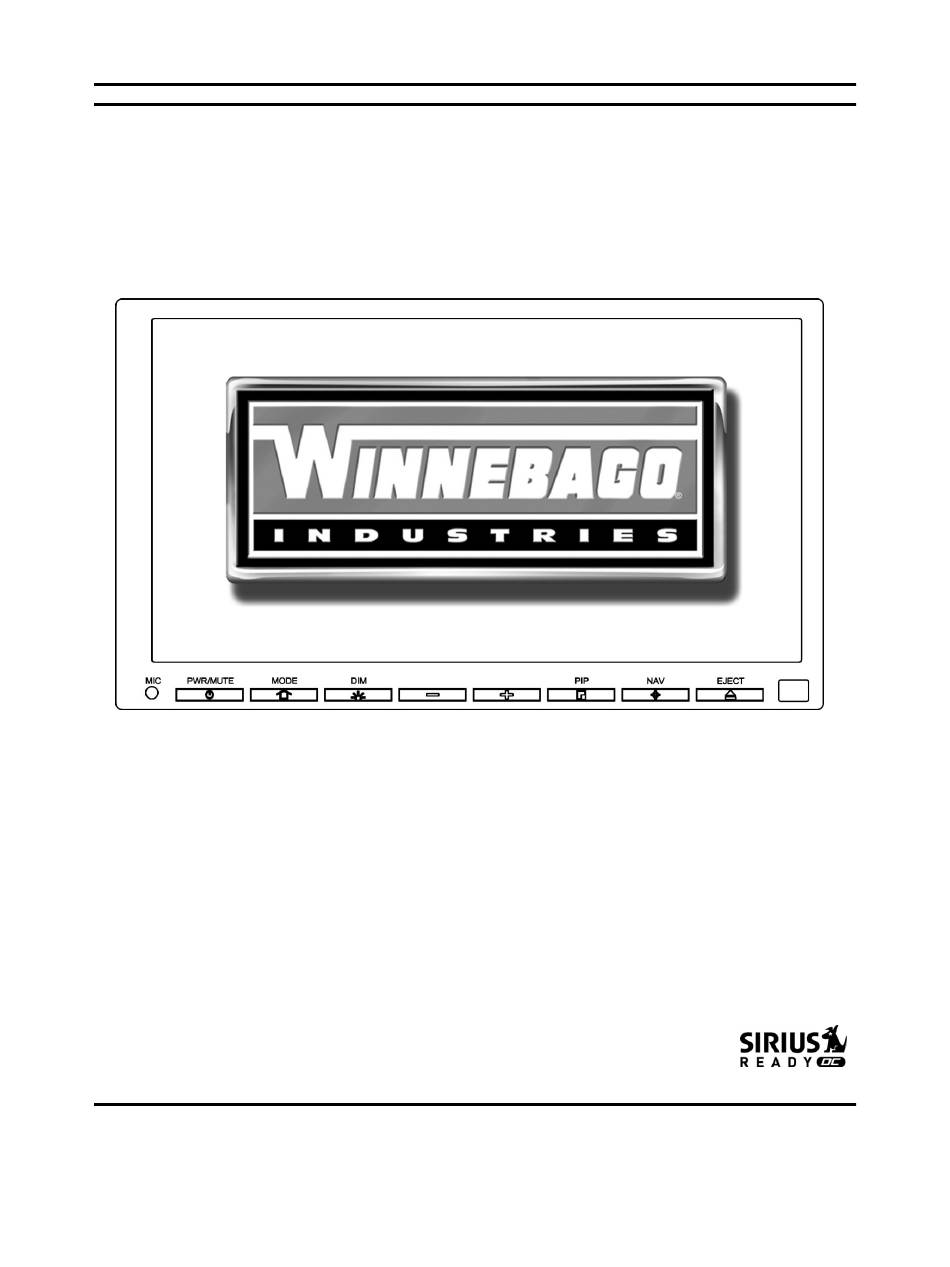

- Page 1 INFOTAINMENT CENTER Owner’s Manual Before using this product, please read this manual fully to ensure correct operation. Keep the manual at hand for future reference.
- Page 2 THIS IS A DISCLAIMER OF LIABILITY AND DAMAGE RESPONSIBILITY AS REGARDS TO THE INFOTAINMENT CENTER MANUFACTURER AND YOUR USE OF THE PRODUCT. YOU ASSUME TOTAL RESPONSIBILITY AND RISK FOR USING THIS SYSTEM. Failure to properly focus on the operation of your motor vehicle can result in death, serious injury and property damage.
- Page 3 IMPORTANT SAFETY INFORMATION Safety Information Read the operating instructions for the Infotainment Center and all other components of the system carefully before using the system. FAILURE TO OBSERVE THE INSTRUCTIONS GIVEN IN THIS MANUAL MAY CAUSE INJURY OR DAMAGE AND VOID THE WARRANTY. Warnings Observe the following warnings when using this unit: •...
- Page 4 CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION: THIS DVD VIDEO RECORDER IS A CLASS 1 LASER PRODUCT. USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
- Page 5 Customer Feedback Your Infotainment Center has been designed specifically for use in Recreational Vehicles. This system has been designed to offer a rich and intuitive feature set that is simple to use and even easier to enjoy. We have engineered this system based off input from real RV’ers like you! We want your feedback.
-
Page 6: Table Of Contents
Contents Features ......................7 Main Unit Display ....................8 Setup ......................... 10 3.1 General Settings ................... 10 3.2 Video Setup ....................11 3.3 Audio Setup ....................11 Radio Operation ....................12 CD Player Operation ..................13 USB - MP3/WMA/MP4 Player Operation ............14 DVD/VCD Player Operation ................ -
Page 7: Features
Features Motorized 6.95” Touch Screen LCD Display Picture in Picture (PIP) Display GPS Navigation (Optional) SIRIUS Satellite Radio Ready AM/FM/RDS Stereo Radio iPod/iPhone Interface and Control DVD R/RW, CD R/RW, VCD Compatible MP3, WMA, MPEG Audio/Video File Compatible Bluetooth Hands-Free Calling and Streaming Audio Player (A2DP) Rearview Camera Connectivity Auxiliary Monitor Support USB Input... -
Page 8: Main Unit Display
2 Main Unit Display The buttons located on the Infotainment Center front display are assigned the same reference here below. Main unit buttons PWR (Power On/Off) or MUTE PIP (Picture in Picture) Mode (Main Menu) Navigation Eject Volume Down Bluetooth Microphone Volume Up IR Receiver... -
Page 9: Mode (Main Menu)
POWER 1. Turn on the ignition to power up the Infotainment Center. The buttons on the front of the unit light up. When the Infotainment Center is started up, it will immediately go to the last mode (memory on playback) before it was turned off. 2. -
Page 10: Setup
3 Setup General Settings Access the System Settings by using the Settings icon in the Main Menu. The first screen shown is the first page of the system setup. The pages of the Settings menu can be changed by using the on-screen button in the top right corner. To exit the Settings menu at any time, press the Settings icon in the top left of the screen. -
Page 11: Video Setup
Video Setup By touching the VIDEO button, the settings for the video part of the Infotainment Center can be changed. Video Settings page one (1/1): Brightness: Sets the brightness level (-10 – +10). Contrast: Sets the contrast level (-10 – +10). Tint: Sets the tint level (-10 –... -
Page 12: Radio Operation
4 Radio Operation Radio mode can be selected from the Main Menu by pressing the Radio icon on the LCD display. The Radio mode can be left at any time by pressing the Radio icon at the top left of the Radio screen. The radio interface contains several buttons that all have their specific purpose. -
Page 13: Cd Player Operation
5 CD Player Operation CD/DVD mode can be selected from the Main Menu by pressing the DVD icon on the LCD display. The CD/DVD mode can be left at any time by pressing the Disc icon at the top left of the CD/DVD screen. Disc Insert/Eject Press the EJECT button below the LCD display to get access to the CD/DVD player behind the LCD... -
Page 14: Usb - Mp3/Wma/Mp4 Player Operation
6 USB - MP3/WMA/MP4 Player Operation USB mode can be selected from the Main Menu by pressing the USB icon on the LCD display. The USB mode can be left at any time by pressing the USB icon at the top left of the USB screen. To access and use the USB feature please connect your USB compatible device (USB stick, HD, etc.) first to the USB cable provided. -
Page 15: Dvd/Vcd Player Operation
7 DVD/VCD Player Operation (Please refer to the safety instructions in regard to video playback on page 3) CD/DVD mode can be selected from the Main Menu by pressing the DVD icon on the LCD display. The CD/DVD mode can be left at any time by pressing the Disc icon at the top left of the CD/DVD screen. Disc Insert/Eject Press the EJECT button below the LCD Display to get access to the CD/DVD player behind the LCD... - Page 16 DVD Settings page two (2/2): Sound Mode: Here a selection can be made to set up the speaker system connected. When a full 5.1 system is connected, the sound mode can be set to 6CH. When a normal audio system is connected, 2CH has to be selected.
-
Page 17: Bluetooth Operation
8 Bluetooth Operation Bluetooth mode can be selected from the Main Menu by pressing the Bluetooth icon on the LCD display. The Bluetooth mode can be left at any time by pressing the Bluetooth icon at the top left of the Bluetooth screen. The Infotainment Center supports Bluetooth wireless connections. - Page 18 Infotainment Center to connect to your mobile phone. 3. When connecting, the Infotainment Center will identify itself to your phone as “XSG2”. The mobile phone will ask for a PIN code. The factory default code is “0 0 0 0” (this code can be changed, see Bluetooth settings).
-
Page 19: Incoming Calls
Incoming Calls While the mobile phone is connected, incoming calls will be handled by the Infotainment Center. When an incoming call is present, the LCD display will switch to Bluetooth mode and show the phone number (when available) from the person calling. Under the phone number, the buttons Accept and Reject are present. -
Page 20: Av (A2Dp Audio Playback Over Bluetooth)
AV (A2DP Audio Playback over Bluetooth) Some mobile phones also support the functionality of A2DP (Audio transfer protocol). The Infotainment Center uses this protocol to find audio files on the mobile phone and play the audio over the normal speakers. Press AV in the standard Bluetooth screen. -
Page 21: Sirius Satellite Radio
9 SIRIUS Satellite Radio The Infotainment Center is compatible with an optional SIRIUS Satellite Radio Direct Connect device (please see your dealer for compatible devices). When a SIRIUS receiver is connected, press the SIRIUS icon in the main menu. The SIRIUS mode can be left any time by pressing the SIRIUS icon at the top left of the screen. - Page 22 Channels can be locked to restrict access to certain channels. To lock a channel: 1. Tune to the channel you wish to lock. 2. Press Lock to bring up keypad. 3. Enter a lock code. The first time you use the lock feature you can enter any 4 digits you choose to have as your lock code.
-
Page 23: Ipod And Iphone Av Interface
10 iPod and iPhone AV Interface The Infotainment Center can also be connected to your Apple iPod or iPhone. When the iPod is connected, press the iPod icon in the Main Menu. The iPod mode can be left any time by pressing the iPod icon at the top left of the screen. -
Page 24: Camera (Optional)
11 Camera (Optional) The Infotainment Center can be connected to an optional rearview camera or camera control box (for multiple cameras) to enhance viewing around your vehicle while performing maneuvers. When connected, the camera AV source can be displayed in two ways: Manual Viewing: By selecting the Camera icon from the Main Menu you can have full screen display of your rear camera. -
Page 25: Navigation (Optional)
12 Navigation (Optional) The Infotainment Center is capable of providing navigation. If you have purchased this option please see your Navigation Program User Manual for instructions on using the navigation software. Your optional Navigation Program is stored on an SD card. This card is entered into the SD card slot found on the bottom of the LCD display housing. -
Page 26: Premium Remote Control Accessory (Optional)
13 Premium Remote Control Accessory (Optional) The Infotainment Center is compatible with the Premium Remote Control accessory. Main Activity LED Power Mode Mute Setup V.Sel/Nav Subtitle (DVD) Audio (DVD) Joystick Control Next (hold for fast forward) Previous (hold for rewind) Play/Pause Volume Up Radio/SIRIUS Band ( hold for TA function ) -
Page 27: Navigation
SIRIUS Function Description Joystick UP/DOWN Search Channel Up/Down. LEFT/RIGHT Search Categories. Depress to select. control Next Tune Channel Up/Down (hold for Rapid Tuning) Previous Band Go to next set of Preset Channels (3X6) Numeric 1 Tune to saved Channel Preset (Preset 1) Numeric 2 Tune to saved Channel Preset... - Page 28 Radio Function Description Next Tune/ Hold for Seek Previous Band Go to next set of Preset Channels (3X6) Numeric 21-26 Tune to saved Channel Preset 1-6 (Preset *) Numeric 7 Alternative Frequency ON/OFF (Radio AF) Numeric 8 (Radio Activate Program Type Tuning PTY) Numeric 9 (Radio...
- Page 29 2010 All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, downloaded or stored in any storage medium, in any form or for any purpose without the express prior written consent of River Park Inc. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.
