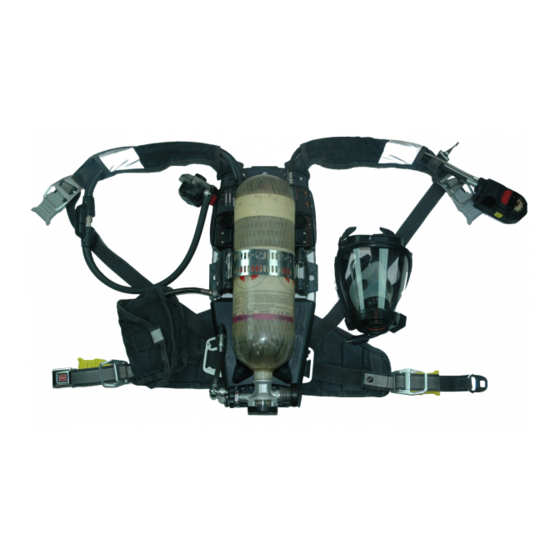

- Page 1 WARRIOR SCBA SPERIAN Warrior SCBA Training Program Student Information SCBA 2019 © TIM FORDHAM...
- Page 2 WARRIOR SCBA Warrior SCBA Self-contained breathing apparatus (SCBA) are required to be worn and used at all times by all personnel when: 1. At the scene of emergency incidents where the atmosphere could be immediately dangerous to life and health (IDLH) or may become oxygen deficient. 2.
- Page 3 WARRIOR SCBA Daily the _________ shall inspect all unassigned SCBA’s and initial the appropriate Form 20. Fire Fighter Specialist How often shall all personnel don there SCBA and insure • they can maintain a negative pressure facepiece seal, test proper operation of the first breath on function, manual on button, bypass valve operation, exhalation valve operation, and shut-off button.
- Page 4 WARRIOR SCBA All personnel: shall properly connect the Emergency ➢ Breathing Safety System and review its uses and limitations Bi-annually. All personnel: shall have a quantitative facepiece fit test • ______ annually Safety Issue: Any air cylinder found to be out of •...
- Page 5 WARRIOR SCBA through the skin, i.e., Hydrocyanic Acid (Hydrogen Cyanide) Methyl Bromide. BACKPACK HARNESS AND FRAME The backpack consists of a lightweight aluminum • backplate that has ____ integrated carrying handles with carabineer attachment points. Each attachment point is rated to 1,000 pounds. three The air cylinder is retained by a stainless steel band that ➢...
- Page 6 WARRIOR SCBA once every __ seconds to indicate a usable battery condition. The amber LED’s will flash every __ seconds to indicate a low battery condition. 10, 2 AIR CYLINDER A ___-minute (66 cubic foot – 1800 liter) air cylinder will •...
-
Page 7: First-Stage Regulator
WARRIOR SCBA 1 st 2 nd 3 rd Year of Purchase Col Hydr Hydro Hydr Blac 2013 2018 Red 200 2014 2019 2015 2020 Yell 2016 2021 FIRST-STAGE 2017 2022 REGULATOR The first stage regulator lowers air cylinder pressure to approximately ___ psi, which is supplied to the second stage regulator via the intermediate pressure hose. - Page 8 WARRIOR SCBA full “F” to empty “E” using quarter increments “¼ ½ ¾” similar to a fuel gauge on a vehicle. The PASS device can be manually triggered to full alert by • depressing and holding the red alarm button for 1 second. Lack of movement will start the staged alarm in approximately ___seconds.
-
Page 9: Second Stage Regulator
WARRIOR SCBA SECOND STAGE REGULATOR The second stage regulator attaches to the facepiece using • the _____ system. Air Klic The second stage regulator is capable of supplying the user ➢ in excess 350 liters per minute of breathing air. The bypass valve is capable for supplying a maximum of ___liters per minute of breathing air. - Page 10 WARRIOR SCBA When the pressure drops below ___% of air cylinder • capacity, the LED representing ¼ cylinder capacity changes color to red and starts to blink. A corresponding red LED on the front of the HUD will • blink warning others of the user’s low air supply. When the pressure drops to __% of air cylinder capacity, the LED representing ¼...
- Page 11 WARRIOR SCBA VOICE PROJECTION UNIT (VPU) One depression of the power button activates the VPU for ➢ two seconds. Two consecutive pushes of the power button activates the VPU for continuous use. Two more consecutive pushes of the power button will turn the VPU off.
- Page 12 WARRIOR SCBA A red LED above the battery status light will blink when • the user’s remaining air supply has reached ¼. This will occur approximately at the same time the audible low air alarm is activating. A corresponding red LED on the front of the ____ will blink warning others of the users low air supply.
- Page 13 WARRIOR SCBA When two SCBA’s are connected using the Emergency ➢ Breathing Safety System there is no transfer of air. The SCBA with the higher intermediate pressure will automatically supply both SCBA’s until that air is exhausted. SPECTACLE KITS Any Employee requiring a Spectacle Kit may order one by ➢...
- Page 14 WARRIOR SCBA ✓ Observe the gauge/alarm for 10 seconds. Significant needle movement indicates a system leak. ✓ Slightly open the bypass valve and allow the system pressure to bleed down stopping at ¾, ½ and ¼. ✓ At approximately the ¼ full mark on the pressure gauge, the audible low air whistle should sound and the red low air warning lights on the second stage regulator and backpack should blink.
- Page 15 WARRIOR SCBA ✓ Allow the facepiece to drip dry. Do not use compressed air at any time. Once the facepiece is completely dry ensure that the ✓ exhalation valve functions smoothly. Second Stage Regulator Cleaning: Always hold the ➢ regulator with the outlet tube facing downward and the protective cleaning cap installed during washing and rinsing.
