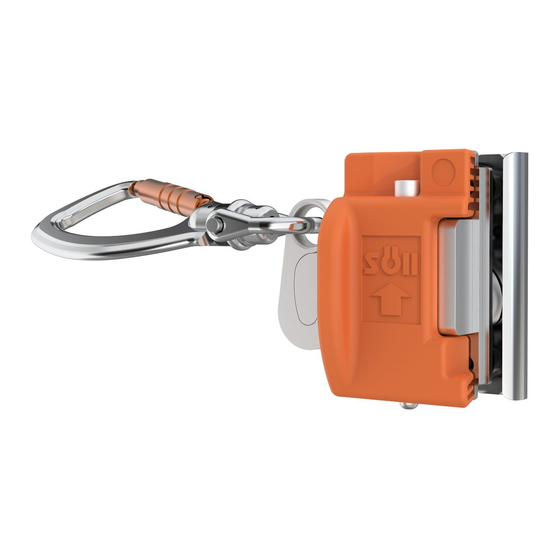

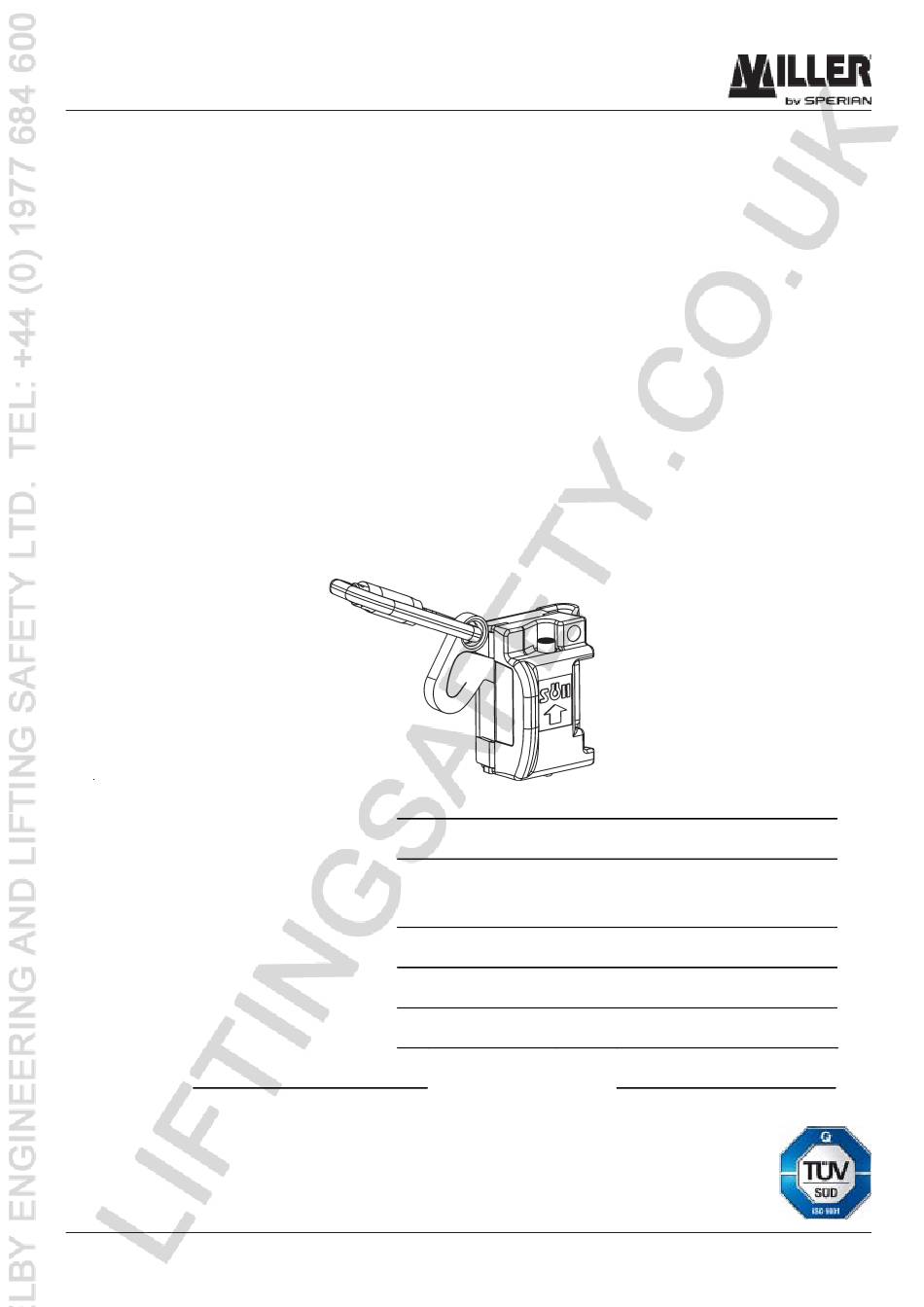

Söll Vi-Go is personal protective equipment against falls from a height:
Guided type fall arrester including a rigid anchor line, that complies
Serial number:
Year of manufacture
(The following must be completed by the operator in permanent waterproof ink.)
Date of initial operation:
Operator/user:
Street:
Place:
Phone:
Date of Issue: 21.04.2010
SE 70
Technical modifications reserved!
SPERIAN FALL PROTECTION Deutschland GmbH & Co. KG, D-95015 Hof-Bavaria, P. O. B. 16 46, Phone +49/92 81/83 02-0, Fax +49/92 81/36 26, www.fall-protection.com
Page 1
Date of initial operation: Operator/user: Street: Place: Phone: Fax: Date of Issue: 21.04.2010 SE 70 Technical modifications reserved! SPERIAN FALL PROTECTION Deutschland GmbH & Co. KG, D-95015 Hof-Bavaria, P. O. B. 16 46, Phone +49/92 81/83 02-0, Fax +49/92 81/36 26, www.fall-protection.com...
Page 2
Article 106 of the German Copyright Act. Notice! In this issue the following has been changed: B 5 SPERIAN FALL PROTECTION Deutschland GmbH & Co. KG, D-95015 Hof-Bavaria, P. O. B. 16 46, Phone +49/92 81/83 02-0, Fax +49/92 81/36 26, www.fall-protection.com...
A 12. The operator of the safe climbing system must ensure that a rescue measures plan is available that takes into account all possible emergencies that may occur when working. SPERIAN FALL PROTECTION Deutschland GmbH & Co. KG, D-95015 Hof-Bavaria, P. O. B. 16 46, Phone +49/92 81/83 02-0, Fax +49/92 81/36 26, www.fall-protection.com...
Page 4
A 20. The system has been tested and approved by "Stelle 0158: DEKRA EXAM GmbH, Dinnendahlstraße 9, 44809 Bochum. SPERIAN FALL PROTECTION Deutschland GmbH & Co. KG, D-95015 Hof-Bavaria, P. O. B. 16 46, Phone +49/92 81/83 02-0, Fax +49/92 81/36 26, www.fall-protection.com...
Page 5
For fastening the intermediate bracket and the lower end of the cable, independent of the number of users, effective in each direction: Fc2 = 1.5 kN SPERIAN FALL PROTECTION Deutschland GmbH & Co. KG, D-95015 Hof-Bavaria, P. O. B. 16 46, Phone +49/92 81/83 02-0, Fax +49/92 81/36 26, www.fall-protection.com...
Page 6
The deflection of the system depends on the total length and the wind speed. The intermediates must avoid that the cable is touching the construction and can get damaged. SPERIAN FALL PROTECTION Deutschland GmbH & Co. KG, D-95015 Hof-Bavaria, P. O. B. 16 46, Phone +49/92 81/83 02-0, Fax +49/92 81/36 26, www.fall-protection.com...
Page 7
5. Secure the tensioning element (A) against twisting using the two locking nuts (D). SPERIAN FALL PROTECTION Deutschland GmbH & Co. KG, D-95015 Hof-Bavaria, P. O. B. 16 46, Phone +49/92 81/83 02-0, Fax +49/92 81/36 26, www.fall-protection.com...
Page 8
„anti-inversion“ mechanism, which prevents the fall arrester from being incorrectly attached to the cable. SPERIAN FALL PROTECTION Deutschland GmbH & Co. KG, D-95015 Hof-Bavaria, P. O. B. 16 46, Phone +49/92 81/83 02-0, Fax +49/92 81/36 26, www.fall-protection.com...
Page 9
The length of the intermediate joint (length between the cable and the inner curve of the eye on the harness) must not exceed 200 mm. SPERIAN FALL PROTECTION Deutschland GmbH & Co. KG, D-95015 Hof-Bavaria, P. O. B. 16 46, Phone +49/92 81/83 02-0, Fax +49/92 81/36 26, www.fall-protection.com...
Page 10
7. Check the functioning of the locking and catch mechanism by moving the latch (3). Fig. C4 SPERIAN FALL PROTECTION Deutschland GmbH & Co. KG, D-95015 Hof-Bavaria, P. O. B. 16 46, Phone +49/92 81/83 02-0, Fax +49/92 81/36 26, www.fall-protection.com...
Page 11
3. Through the now-open gap in the casing of the shuttle, remove the shuttle. 4. Release the slider (2) and the lock knob (1). SPERIAN FALL PROTECTION Deutschland GmbH & Co. KG, D-95015 Hof-Bavaria, P. O. B. 16 46, Phone +49/92 81/83 02-0, Fax +49/92 81/36 26, www.fall-protection.com...
Page 12
Fig. D1 SPERIAN FALL PROTECTION Deutschland GmbH & Co. KG, D-95015 Hof-Bavaria, P. O. B. 16 46, Phone +49/92 81/83 02-0, Fax +49/92 81/36 26, www.fall-protection.com...
Page 13
Designation by Söll To be filled in by the installer: maximum number of users Installation number Fig. D3 SPERIAN FALL PROTECTION Deutschland GmbH & Co. KG, D-95015 Hof-Bavaria, P. O. B. 16 46, Phone +49/92 81/83 02-0, Fax +49/92 81/36 26, www.fall-protection.com...
Page 14
D 7. The guided type fall arrester that comes with the Söll Vi-Go system should be clean and as dry and dust-free as possible, and should be stored in a cool place. SPERIAN FALL PROTECTION Deutschland GmbH & Co. KG, D-95015 Hof-Bavaria, P. O. B. 16 46, Phone +49/92 81/83 02-0, Fax +49/92 81/36 26, www.fall-protection.com...
Page 15
Safety in Action Further Remarks SPERIAN FALL PROTECTION Deutschland GmbH & Co. KG, D-95015 Hof-Bavaria, P. O. B. 16 46, Phone +49/92 81/83 02-0, Fax +49/92 81/36 26, www.fall-protection.com...
Page 16
(*) details expert inspection (*) „Ü“ for regular inspections, „I“ for repair SPERIAN FALL PROTECTION Deutschland GmbH & Co. KG, D-95015 Hof-Bavaria, P. O. B. 16 46, Phone +49/92 81/83 02-0, Fax +49/92 81/36 26, www.fall-protection.com...
Page 17
Only SPERIAN FALL PROTECTION Deutschland GmbH & Co. KG fall arrest technology components have been used. page 1/2 SPERIAN FALL PROTECTION Deutschland GmbH & Co. KG, D-95015 Hof-Bavaria, P. O. B. 16 46, Phone +49/92 81/83 02-0, Fax +49/92 81/36 26, www.fall-protection.com...
Page 18
Defects, irregularities and deviations at the time of acceptance must be noted here: Noted defects/shortcomings determined by signature date page 2/2 SPERIAN FALL PROTECTION Deutschland GmbH & Co. KG, D-95015 Hof-Bavaria, P. O. B. 16 46, Phone +49/92 81/83 02-0, Fax +49/92 81/36 26, www.fall-protection.com...
