1" Miller Grip Anchorage
Galvanized Thimble
IMPORTANT!!
Users should be familiar with pertinent regulations
governing this equipment. All individuals who use
this product must be correctly instructed on how to
use this device.
1.
Follow all manufacturer's instructions.
2.
Use only locking snap hooks or locking carabiners.
3.
Always inspect your units prior to use.
4.
Use the proper method of coupling to anchorage.
5.
Always dispose of this unit after a fall has occurred.
6.
Patch all holes with concrete when job is complete.
7.
Pregnant women and minors must not use this product.
8.
Designed safe working load is 2,000 lbs ( 8.8 KN ). Do not exceed this
weight when you pretension your Life Line System.
T
Strength -
Model -
Color Coded Green Thimble
Miller Fall Protection
Swag
Spring
Miller's 1" Fall Protection Miller Grips are to be used in concrete
substrate only. DO NOT use in steel, wood or any other substrate.
* Horizontal surfaces
* Vertical surfaces
* Overhead / ceiling surfaces
1" Miller Grip
ested -
ANSI Z359.1
10,000 lbs / 44 KN
Miller Grip #497
PH: 1-800-873-5242 FX: 1-800-892-4078
Operations and Instruction Manual

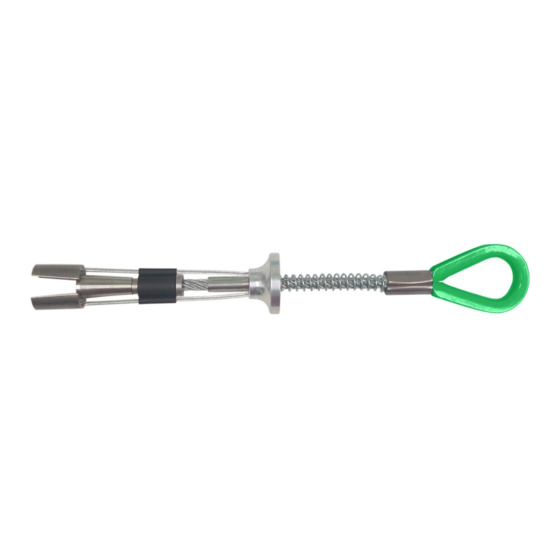

Miller Grip Anchorage - Model #497
Portable Concrete Anchorage Connector
ANSI Z359.1 10,000 lbs / 44kn
Manufactured Aug, 2007. Batch #033
Trigger
Return Wire
Main Cable
Stop Sleeve
All persons using this equipment must read and
understand all instructions. Failure to do so may
result in serious injury or death. If a fall occurs,
the Miller Grip must be disposed of according to
the manufacturer's instruction.
Miller Grips can be placed in:
* Horizontal Life Lines
* Vertical life Line
This product is to be used by qualified fall protection
personnel only. It is to be anchored in accordance with
manufacturer's requirements in concrete substrate only.
Do not anchor in uncured/wet concrete.
The model Miller Grip #497 is color coded with a green
thimble, and is used for FALL PROTECTION ONLY. This
unit is not to be used in any other anchoring situation.
Concrete must have a compressive strength of at least
3,000 PSI (20.7MPa)
Made in the USA
Cleaning Bushing
Spoons
Wire Guide
Conical End Fitting
WARNING!!
www.millerfallprotection.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sperian MILLER Grip 497
Summary of Contents for Sperian MILLER Grip 497
- Page 1 Operations and Instruction Manual Miller Grip Anchorage - Model #497 Portable Concrete Anchorage Connector ANSI Z359.1 10,000 lbs / 44kn Manufactured Aug, 2007. Batch #033 Made in the USA 1” Miller Grip Anchorage Swag Spring Trigger Return Wire Cleaning Bushing Spoons Galvanized Thimble Main Cable...
- Page 2 IMPORTANT!!! Do not drill a hole closer then 10” from any corner. The concrete substrate must be at least 20” wide and 10” thick. Inspection: Warning!! Make sure unit is straight and operates smoothly. Make sure the label is affixed to unit. Do not use incompatible connectors with Make sure trigger stop is not bent or damaged.
- Page 3 Typical Installation of 497 Concrete Horizontal Lifeline This illustration demonstrates a Model #DF497 Temporary Horizontal Life Line being used with two Model #497 - 10,000 lb Miller Grips Anchorage Connectors drilled and properly installed at each end. For more information or to place an order for the Model # DF497 Temporary Horizontal Life Line, please contact your Miller Distributor.
