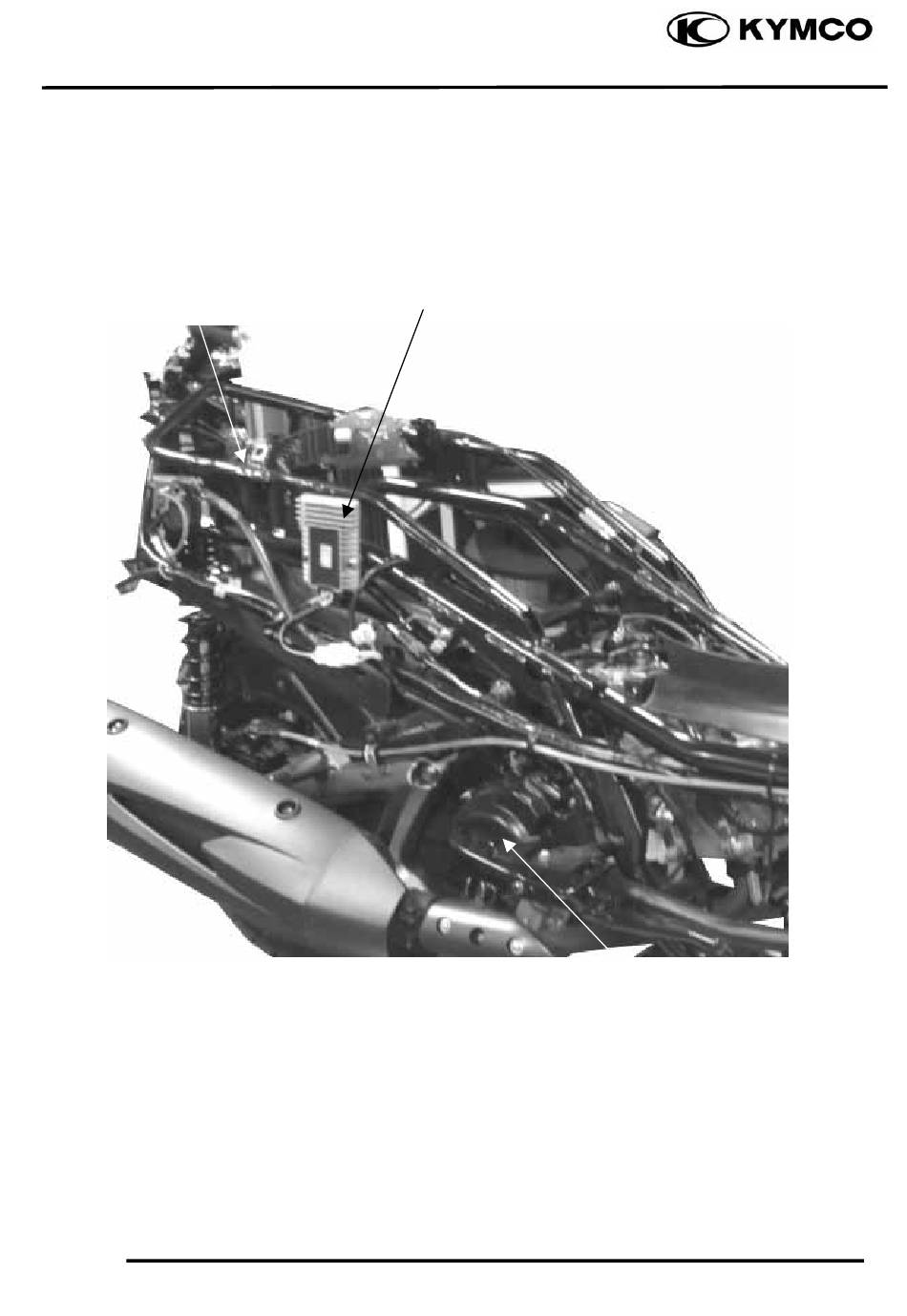

- Page 1 . BATTERY/CHARGING SYSTEM DOWNTOWN 300i CHARGING SYSTEM LAYOUT BATTERY REGULATOR/RECTIFIER 16-1...
-
Page 2: Service Information
. BATTERY/CHARGING SYSTEM DOWNTOWN 300i SERVICE INFORMATION GENERAL INSTRUCTIONS ＊ The battery electrolyte (sulfuric acid) is poisonous and may seriously damage the skin and eyes. Avoid contact with skin, eyes, or clothing. In case of contact, flush with water and get prompt medical attention •... -
Page 3: Troubleshooting
. BATTERY/CHARGING SYSTEM DOWNTOWN 300i TROUBLESHOOTING No power Intermittent power • Dead battery • Loose battery cable connection • Disconnected battery cable • Loose charging system connection • Fuse burned out • Loose connection or short circuit in • Faulty ignition switch... -
Page 4: Battery Installation
. BATTERY/CHARGING SYSTEM DOWNTOWN 300i Screws BATTERY REMOVAL The battery is in the battery box below seat. 1. Remove the seat. 2. Remove the met-in box 3. Remove four screws and then the battery retainer. (+) Terminal (-) Terminal 4. Pull battery out to expose the terminal leads 5. -
Page 5: Battery Charging
. BATTERY/CHARGING SYSTEM DOWNTOWN 300i BATTERY CHARGING Remove the battery Connect the charger positive (+) cable to the battery positive (+) terminal. Connect the charger negative (-) cable to the battery negative (-) terminal. ＊ Turn the power ON/OFF at the charger, not at the battery terminals. -
Page 6: Ground Wire
. BATTERY/CHARGING SYSTEM DOWNTOWN 300i REGULATOR/RECTIFIER WIRE HARNESS INSPECTION Remove the luggage box Disconnect the regulator/rectifier connectors. Check the connectors for loose contacts of corroded terminals. Regulator/Rectifier BATTERY WIRE Measure the voltage between the Red/White wire terminal and ground. There should be battery voltage at all times. - Page 7 . BATTERY/CHARGING SYSTEM DOWNTOWN 300i CHARGING COIL WIRE Measure the resistance between each Yellow wire terminals. Standard: 0.4 ~ 0.6 Ω (20ºC/68ºF) Disconnect the regulator/rectifier connector. Check for continuity between each Yellow wire terminal regulator/rectifier side and ground. There should be no continuity.
