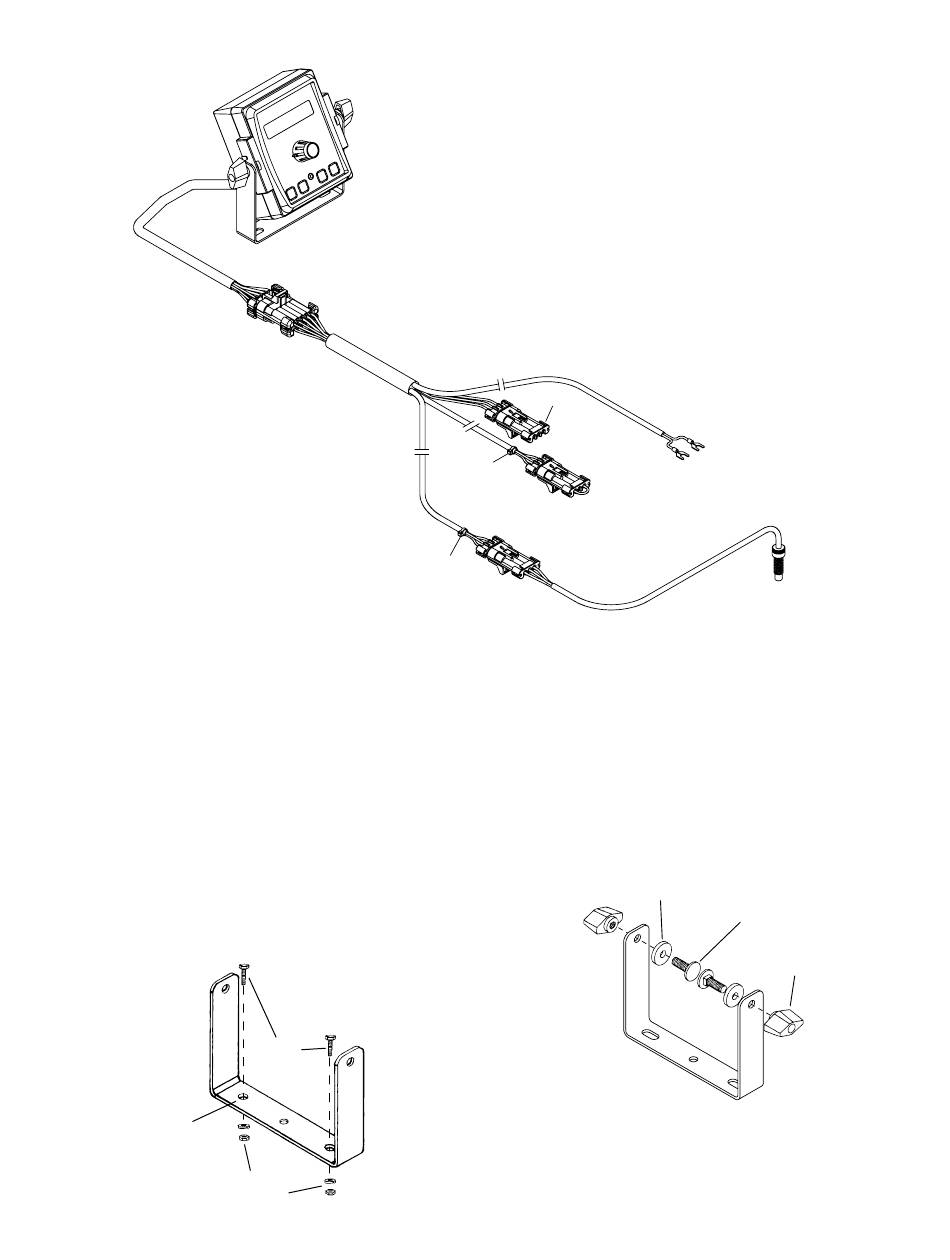

Calc-An-Acre  II System Overview

Installation

Console Mounting

Select a practical mounting location, con ve nient to reach
and easily vis i ble to the op er a tor. DO NOT IN STALL IN A
POSITION THAT OB STRUCTS THE VIEW OF THE ROAD
OR WORK AREA. Whenever pos si ble, avoid lo ca tions that
ex pose the con sole to direct sun light, high tem per a ture,
strong chem i cals or rain. Console may be mounted to
horizontal or vertical surface - adjust tilt for best visibility.
Place the mounting bracket in selected lo ca tion, mark holes,
drill 1/4" (7mm) holes and mount bracket with bolts, lock-
wash ers and nuts pro vid ed.
(Use self-tap ping screws if not prac ti cal to use bolts.)
Console Bracket
Drill ¼" (7mm)
holes for bolts,
or 3/16" (5mm)
holes for self-
tapping screws.
Bolts
Lockwashers
and nuts
DUST COVER
RPM
GRAY TIE
RUN/HOLD
YELLOW TIE
Put rubber washers on carriage bolts and put the bolts
through the bracket holes from the inside out. Loosely
attach the mount knobs onto the bolts. Place console
over carriage bolt heads and tighten knobs to se cure the
console.
Console Mounting Detail
7
+ VES
(RED)
GND
(BLACK)
SPEED
Rubber washer
Carriage bolts
Mount knob
