1.
Install system components and harnessing per general
instruction manual (Micro-Trak P/N 17632).
2.

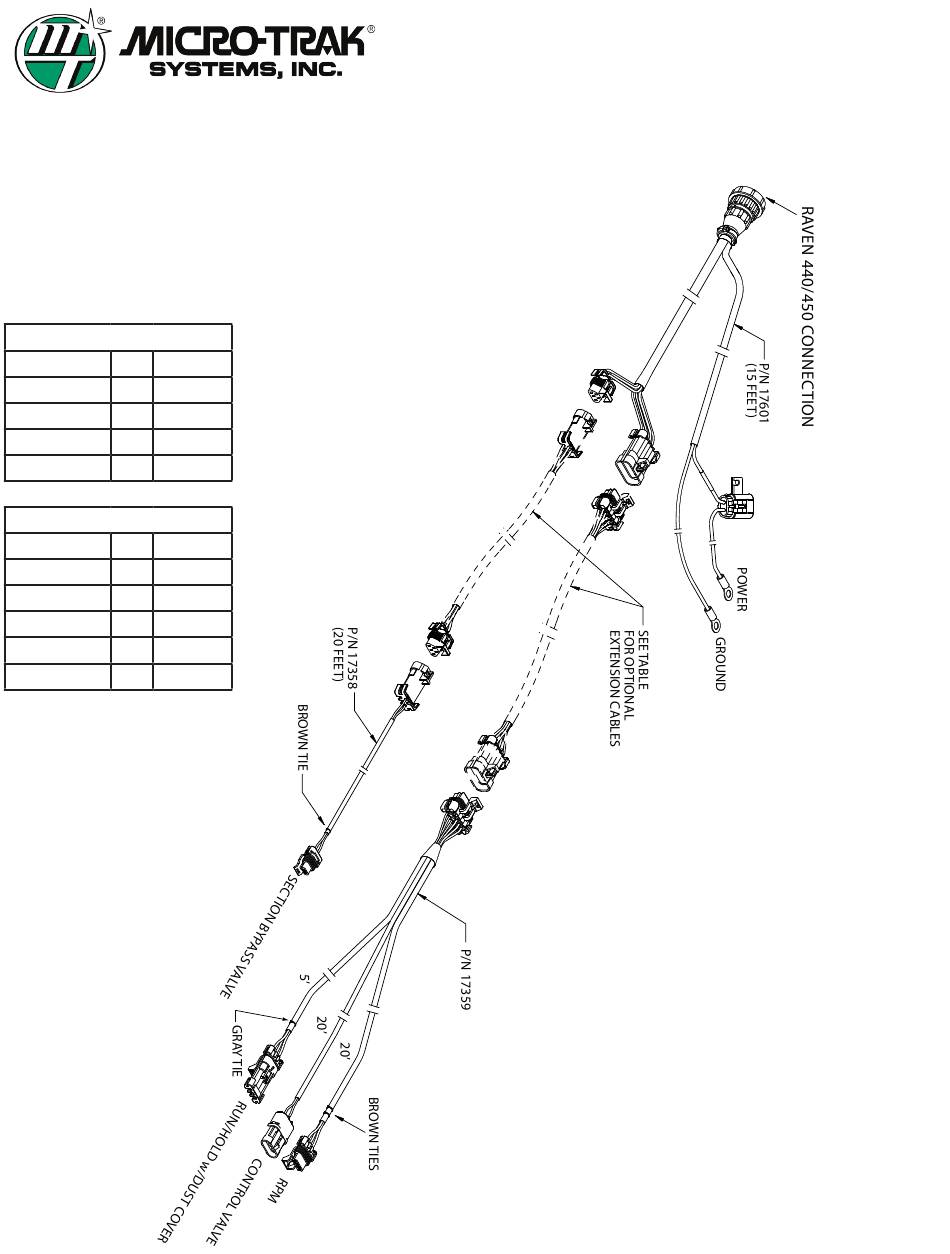

See attached system and wiring diagrams for Raven
440/450-specific harnessing. Note the different diagrams for
single drive or multi-drive systems.
Single Drive Harness Kit System Diagram
OPTIONAL 5-PIN CABLES
P/N 14482
5'
CABLE
P/N 14483
10'
CABLE
P/N 14484
15'
CABLE
P/N 14485
20'
CABLE
P/N 14486
25'
CABLE
OPTIONAL 10-PIN CABLES
P/N 13220
5'
CABLE
P/N 13221
10'
CABLE
P/N 13222
15'
CABLE
P/N 13223
20'
CABLE
P/N 13224
25'
CABLE
P/N 14142
50'
CABLE
Instructions for Micro-Trak
Seed Rate Control Systems
Used with Raven Controllers
3.
See page 10 for Calculating Flow Cal or Pulses per 1000 Seeds
to be entered in the 440/450 Application Rate Controller Pro-
gram.
440/450 - Single Section
P/N 50289 Rev A • © 2009 • Page 1
