Summary of Contents for InWin SR24 PRO

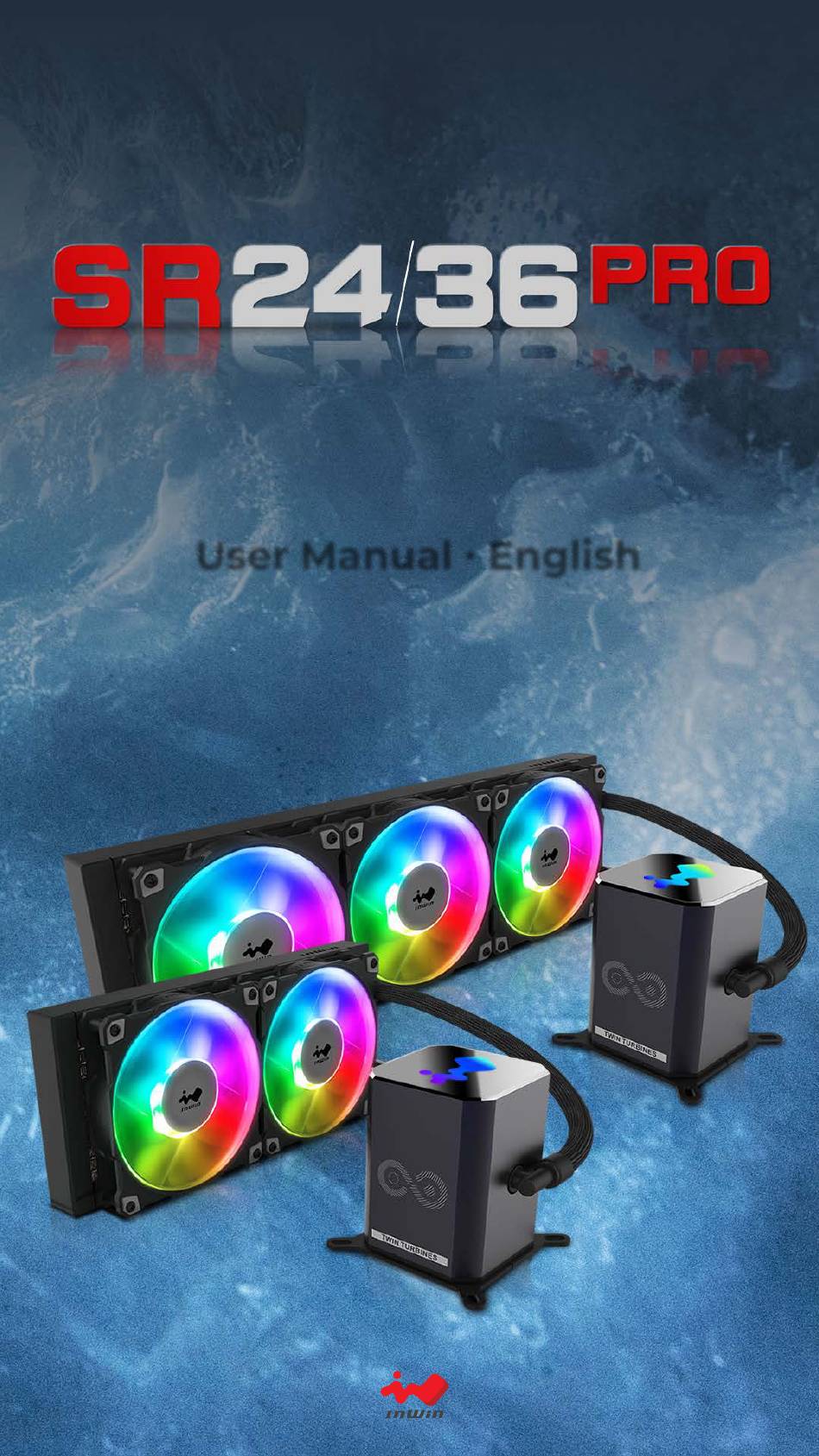

- Page 1 A l l - I n - O n e T w i n T u r b i n e s L i q u i d C P U C o o l e r User Manual · English...

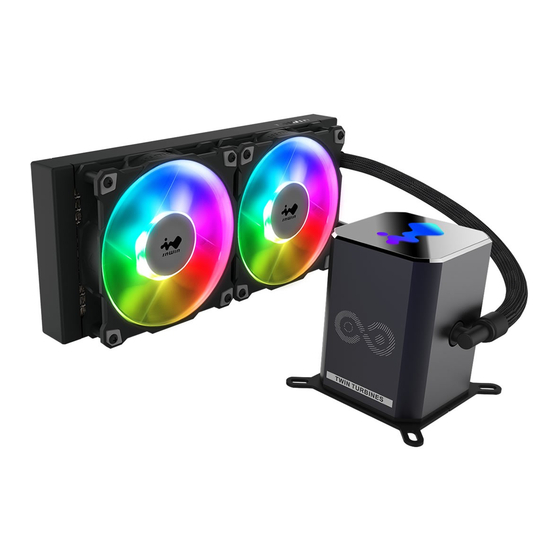

- Page 2 1. Product Story Glow with the Flow! Cool Like a PRO! InWin brings forth an upgraded All-In-One CPU Cooler! Inheriting the patented twin-turbine function, the SR PRO’s pumps run parallel with one another to ensure excellent thermal performance. The improved AIO design comes with the high- airflow Jupiter AJF120 fans to accelerate heat dispatching.
-
Page 3: Specifications
1.8 kg / 4.0 lb 2.2 kg / 4.9 lb Gross Weight 2.4 kg / 5.3 lb 2.8 kg / 6.2 lb Warranty 5 Years * InWin products comply with RoHS regulation. * Specifications may vary based on different regions. SR24PRO SR36PRO... -
Page 4: Package Contents
3. SR24 PRO Package Contents QR Code Card x1 Washer x8 Intel Mounting Bracket x2 Radiator Screws x8 AMD Mounting Bracket x2 Thumbscrew Cap x4 Jupiter AJF Fan x2 Standoff Screws x4 (LGA 20XX) Intel CPU Backplate x1 Standoff Screws x4 (LGA 115X/1366) - Page 5 4. SR36 PRO Package Contents QR Code Card x1 Washer x12 Intel Mounting Bracket x2 Radiator Screws x12 AMD Mounting Bracket x2 Thumbscrew Cap x4 Jupiter AJF Fan x3 Standoff Screws x4 (LGA 20XX) Intel CPU Backplate x1 Standoff Screws x4 (LGA 115X/1366) 360 Radiator x1 Standoff Screws x4 (TR4) SATA Cable ( Pump + PWM ) x1...
- Page 6 5. Installation Guide * Please follow the related chapters to assemble. * Please use original provided accessories to avoid damage to the product 1. Install AJF120 Fans to Radiator. Parts Required: 240mm/360mm radiator, Jupiter AJF120 Fans, Washers, Fan Screws * Note: Please be sure to use a washer on each screw before installation.
- Page 7 5. Installation Guide * Please follow the related chapters to assemble. * Please use original provided accessories to avoid damage to the product 2. Install Fans and Radiator combo to your PC chassis. Parts Required: Radiator Screws 3. Installation for motherboards A.
- Page 8 5. Installation Guide * Please follow the related chapters to assemble. * Please use original provided accessories to avoid damage to the product (2) Attach the Intel backplate to the bottom of the motherboard. Note: Intel LGA 20XX does not require backplate installation. (3) Install the standoff screws onto your motherboard.
- Page 9 5. Installation Guide * Please follow the related chapters to assemble. * Please use original provided accessories to avoid damage to the product B. For AMD Motherboards (AMD or TR4) : D i r e c t l y i n s t a l l t h e A M D s t a n d o f f s c r e w s o n t o y o u r motherboard.
- Page 10 5. Installation Guide * Please follow the related chapters to assemble. * Please use original provided accessories to avoid damage to the product B. Apply the Thermal Compound evenly on the CPU surface. C. Remove the protect film from the cold-plate.
- Page 11 5. Installation Guide * Please follow the related chapters to assemble. * Please use original provided accessories to avoid damage to the product D. Install the pump unit and then tighten it with the Thumbscrews.
- Page 12 (Pump + PWM) 5V ARGB Head to (Please refer to step 7) Cable B SATA to Power 12 Pin to SR24 PRO / SR36 PRO Pump 4 Pin to M/B 4 Pin Wafer to AJF120 Cable B: Addressable Cable 5V ARGB Head...
- Page 13 5. Installation Guide * Please follow the related chapters to assemble. * Please use original provided accessories to avoid damage to the product 6. Sync Fans to Addressable Motherboard A. Fan M/B Header B. ARGB M/B Header...
- Page 14 5. Installation Guide * Please follow the related chapters to assemble. * Please use original provided accessories to avoid damage to the product 7. ARGB One-Click Controller Ver. 1.1 Installation * Note: Please follow this step if your motherboard does not support ARGB effect.
- Page 15 LED-White Flow-Green Light at the end of the Tunnel Flow-Blue * InWin reserves the right to change the lighting modes. * For more installation instructions, please scan the QR Code below or watch the video in the website link: https://youtu.be/KL7KFRSFdxo...
-
Page 16: Troubleshooting
If your AIO pump or fan does not operate properly, please follow the instructions below: 1. Please check your system’s power. 2. Please make sure all the connectors are connected properly. 3. For more technical support, please visit the InWin Forum website at https://forum.in-win.com/... - Page 17 Warranty For more detailed warranty information, please visit the InWin retail website at www.in-win.com. 2. The actual product is subject to change without prior notice. In Win Development Inc. reserves the right to...
- Page 18 Copyright © 2020 In Win Development Inc. All Rights Reserved.
