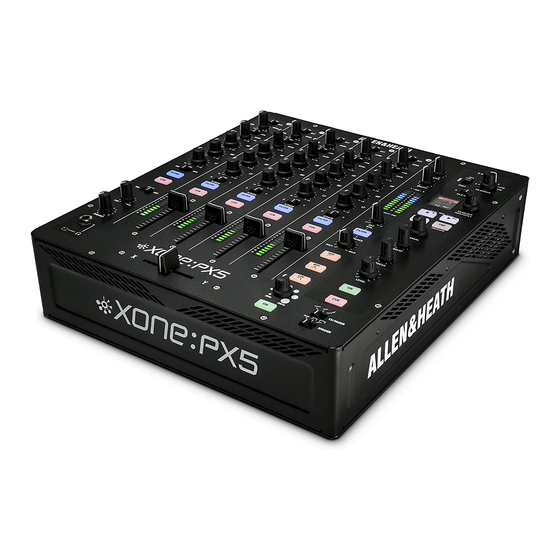

Summary of Contents for ALLEN & HEATH XONE PX5

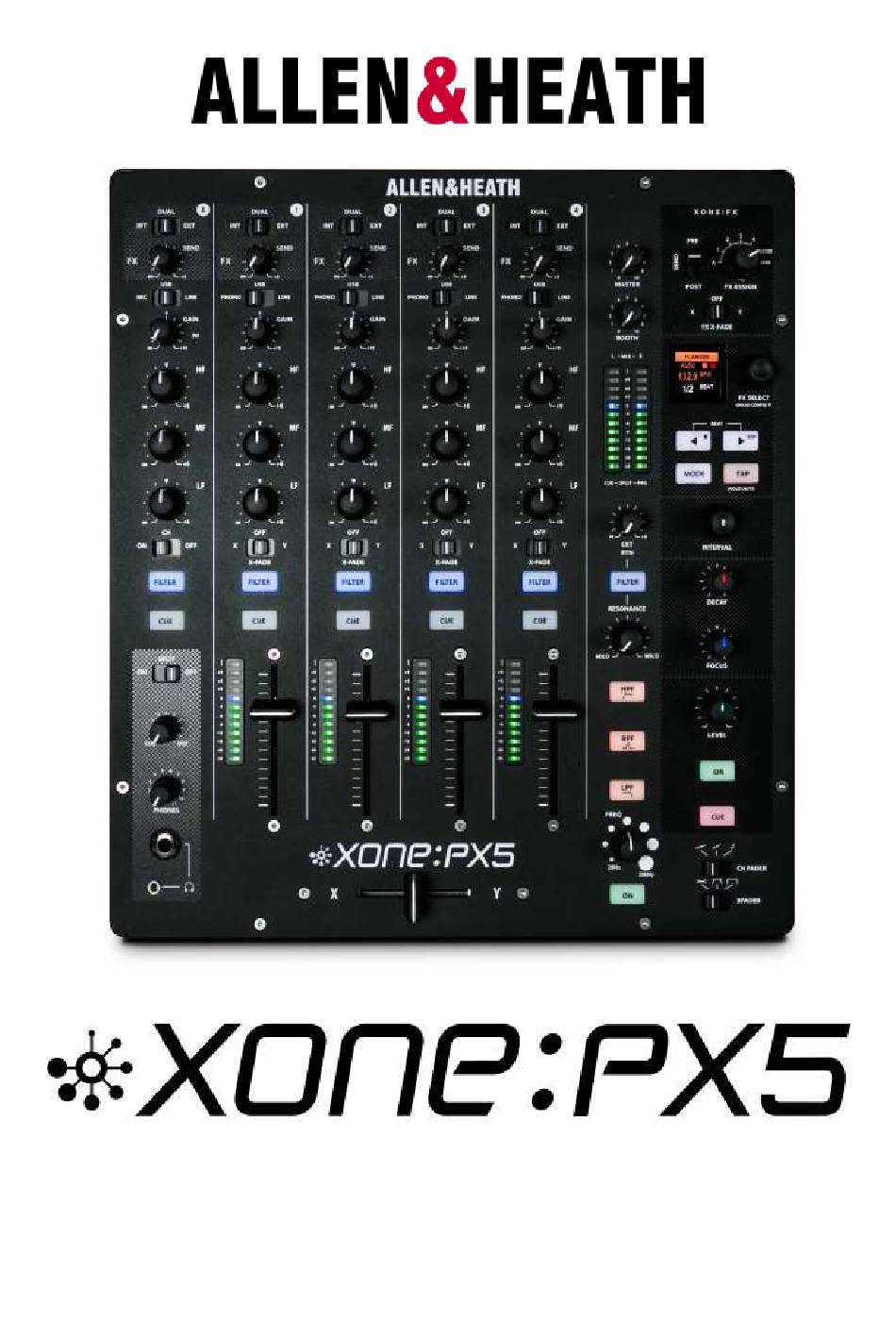

- Page 1 ® ® REPLACING FADERS AP10733_prt ALLEN&HEATH AP10733_prt_XPX5 Replacing Faders...
- Page 2 Page left intentionally blank. ALLEN&HEATH AP10733_prt_XPX5 Replacing Faders...
- Page 3 Limited One Year Manufacturer’s Warranty Allen & Heath warrants the Allen & Heath - branded hardware product and accessories contained in the original packaging ("Allen & Heath Product”) against defects in materials and workmanship when used in accordance with Allen & Heath's user manuals, technical specifications and other Allen &...
-
Page 4: Replacing The Faders
REPLACING THE FADERS Channel and cross-faders subject to excessive ‘wear and tear’, or extensive use, over time will require replacing. Intermittent or noisy operation is an indication of faders becoming worn. Using a propriety fader cleaner, such as CaigLube, DeOxit, etc. may temporarily restore use, but DO NOT use on new faders as this can displace factory applied finishes. - Page 5 REPLACING THE FADERS continued [ii] Step 1: Ensure power switch on the mixer’s rear panel is turned OFF. • Disconnect the mains cable from AC mains supply and mixer’s IEC socket. • Step 2: Remove and retain 1 Torx screw securing, RECORD, RCA sockets to the rear panel •...
- Page 6 REPLACING THE FADERS continued Step 5: With care, unplug 4, grey, flat harnesses and 1, orange, wire-form connecting the main top panel • PCBA to the PCBA fixed to base of the mixer chassis, following the order shown below; The top panel can now be lifted away and separated from the chassis. •...
-
Page 7: Replacing The Cross-Fader
REPLACING THE CROSS-FADER Step 6: To replace the cross-fader With care, disconnect the black wire-form connecting cross-fader to the main PCBA. • Turn the top panel face up. Remove and retain 2 screws securing cross-fader tray to top panel • Take the knob off the cross-fader shaft to remove the tray clear from the top panel •... - Page 8 REPLACING THE CHANNEL FADER Step 7: To replace the channel faders Remove the cross-fader tray prior to replacing channel fader/s, as described in Step 6 above. • Remove and retain 2 screws securing the channel fader PCBA. • Turn the top panel over and slide the Channel Fader PCBA away from its connection to the main •...
- Page 9 Please register your product with Allen&Heath online at: https://www.allen-heath.com/support/register-product/ And for more information, please visit our website: www.allen-heath.com ALLEN&HEATH AP10733_prt_XPX5 Replacing Faders...
