ALLEN & HEATH Xone PX5 Assembly

Hide thumbs Also See for Xone PX5:

Advertisement

Quick Links

Download this manual
Assembly data
Production Line
Product
Assembly Stage
Issue Date

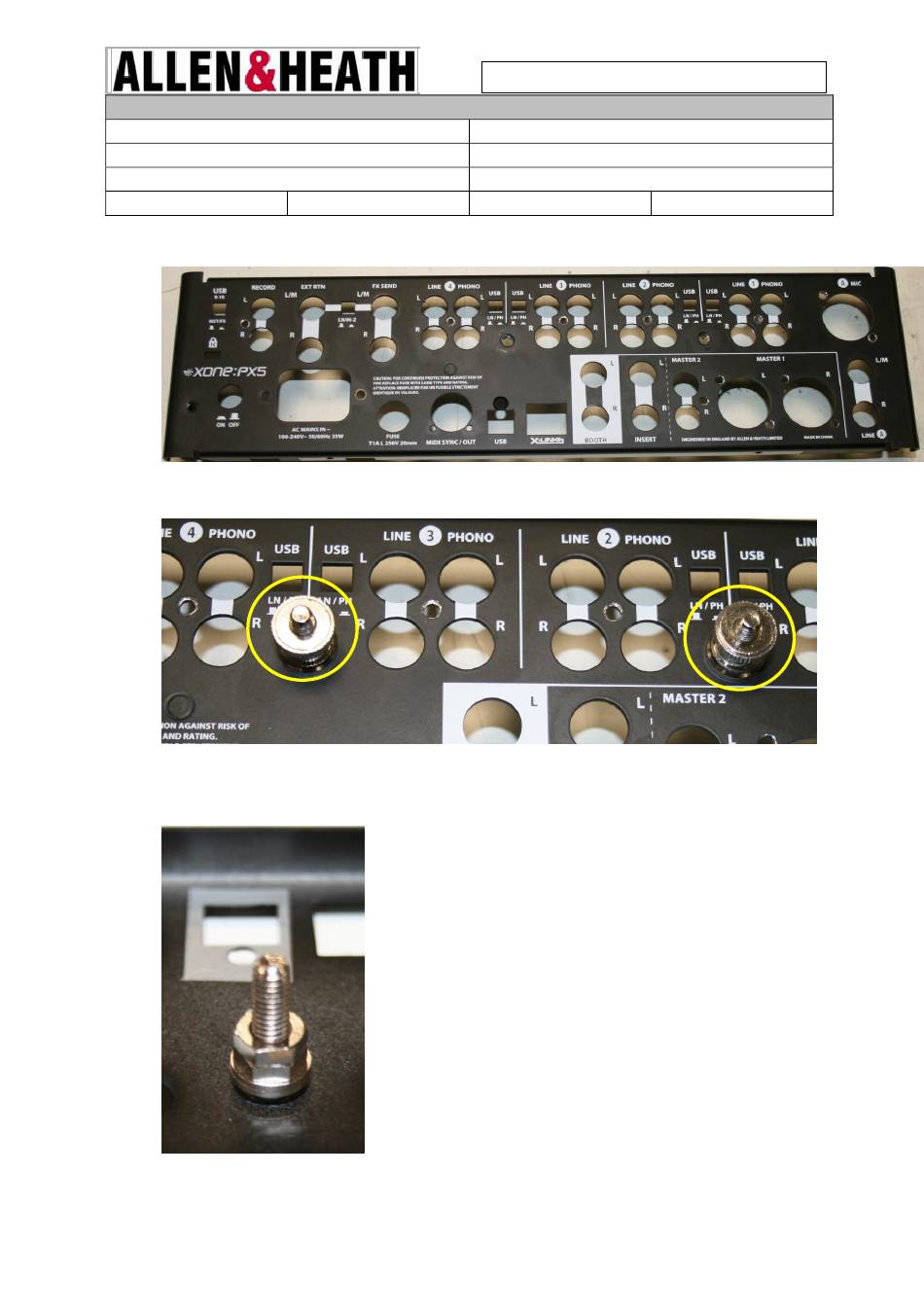

1. INSPECT FOR DEFECTS AA10186 REAR PNL XONE: PX5.
2. FIT AL8106 TERMINAL POST EARTH 2BA x2 TO THE REAR PANEL AS SHOWN.
3. SECURE THE TERMINAL POSTS ON THE INSIDE OF THE PANEL USING X2 WASHERS
FIRST FOLLOWED BY X2 NUTS TO LOCK.
12/07/16
AH-M0773
Xone
PX5
Final assembly
Revision Number
ISSUE 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Xone PX5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ALLEN & HEATH Xone PX5

Summary of Contents for ALLEN & HEATH Xone PX5

  • Page 1 AH-M0773 Assembly data Production Line Xone Product Assembly Stage Final assembly Issue Date 12/07/16 Revision Number ISSUE 1 1. INSPECT FOR DEFECTS AA10186 REAR PNL XONE: PX5. 2. FIT AL8106 TERMINAL POST EARTH 2BA x2 TO THE REAR PANEL AS SHOWN. 3.
  • Page 2 AH-M0773 Assembly data Production Line Xone Product Assembly Stage Final assembly Issue Date 12/07/16 Revision Number ISSUE 1 4. INSPECT FOR DEFECTS AA10185 CHASSIS XONE: PX5 U SIDE. 5. FIT THE REAR PANEL TO THE CHASSIS U SIDE AND SECURE USING AB9037 SCREW M3X5 TRUNC CSK TORX x4.
  • Page 3 AH-M0773 Assembly data Production Line Xone Product Assembly Stage Final assembly Issue Date 12/07/16 Revision Number ISSUE 1 6. INSPECT FOR DEFECTS AA10184 BASE XONE: PX5. 7. FIT AK8830 FEET FAST 40DIA SHOCK/VIB x4 AND SECURE USING AB8831 RIVET PLAS x4 FIT THE BASE TO THE CHASSIS AND SECURE USING AB9037 SCREW M3X5 TRUNC CSK TORX x8.
  • Page 4 Issue Date 12/07/16 Revision Number ISSUE 1 9. 004-738 XONE PX5 PSU. 10. FIT 004-738 PSU INTO THE CHASSIS AND SECURE USING AB0072 SCREW M3X6 PAN TORX x3. 11. SECURE PSU MAINS SKT USING AB0073 SCREW M3X8 PAN TORX x2.
  • Page 5 AH-M0773 Assembly data Production Line Xone Product Assembly Stage Final assembly Issue Date 12/07/16 Revision Number ISSUE 1 12. SECURE MAINS SKT TO REAR PANEL USING AB0076 SCREW M3X10 PAN TORX x2 AND AB0102 NUT M3 NYLOCK x2. 13. FIT EARTH STRAP TO EARTH STUD AND SECURE USING AB0102 NUT M3 NYLOCK x1. 14.
  • Page 6 12/07/16 Revision Number ISSUE 1 15. 004-739 XONE PX5 CPU. CHECK THE PCBA IS PRE-PROGRAMED WITH SD RAM TEST 16. FIT THE CPU TO THE CHASSIS AND SECURE USING AB0072 SCREW M3X6 PAN TORX x4. 17. CONNECT AL10305 IDC WFM XONE: PX5 POWER FROM THE CPU TO THE PSU AND...

  • Page 7: Final Assembly

    SCREW 2.5X6 PAN POZI PLAS x2. AL8797 PLUG BLANK RJ45 BLACK x1. AB10256 JACK NUTS x6. 19. 004-736 XONE PX5 MAIN PCBA. 20. BREAK OUT ALL FADERS AND THE HEADPHONE SOCKET. SOLDER TO THE HEADPHONE SOCKET (TOP SIDE) AND MAIN PCBA (BTM SIDE).
  • Page 8 AH-M0773 Assembly data Production Line Xone Product Assembly Stage Final assembly Issue Date 12/07/16 Revision Number ISSUE 1 21. FIT AA10219 SHROUD XONE: PX5 12 WAY x4 TO THE MAIN PCBA. 22. FIT AA10219 SHROUD XONE: PX5 12 WAY x2 TO THE MAIN PCBA. FROM AA10182 KEYMAT RUBBER XONE: PX5 CUT OUT AND FIT THE TFT MOUNT AND BUTTONS AS SHOWN.
  • Page 9 AH-M0773 Assembly data Production Line Xone Product Assembly Stage Final assembly Issue Date 12/07/16 Revision Number ISSUE 1 24. FIT AA10220 SW. SLIDE CAP XONE: PX5 x2 AS SHOWN. FROM AA10182 KEYMAT RUBBER XONE: PX5 CUT OUT AND FIT BUTTONS AS SHOWN. IMPORTANT: ENSURE ALL BUTTONS ARE FITTED THE CORRECT WAY.
  • Page 10 AH-M0773 Assembly data Production Line Xone Product Assembly Stage Final assembly Issue Date 12/07/16 Revision Number ISSUE 1 27. AE10317 MODULE LCD TFT X: PX5. 28. FIT AE10317 MODULE TO THE MAIN PCBA AND FEED THE RIBBON CAREFULLY THROUGH THE SLOT IN THE PCB. CONNECT THE RIBBON TO CN16 ON THE BOTTOM SIDE OF THE PCBA.
  • Page 11 AH-M0773 Assembly data Production Line Xone Product Assembly Stage Final assembly Issue Date 12/07/16 Revision Number ISSUE 1 30. AA9076 BRACKET XONE: 23/23C XFDR AND CROSSFADER PCBA FROM THE MAIN PCBA. 31. MOUNT THE BRACKET ONTO THE CROSSFADER AND SECURE USING AB9037 SCREW M3X4 TRUNC x2.
  • Page 12 AH-M0773 Assembly data Production Line Xone Product Assembly Stage Final assembly Issue Date 12/07/16 Revision Number ISSUE 1 33. FIT DOUBLE SIDED TAPE x3 PIECES TO THE INSIDE EDGE OF THE HOLE FOR THE SCREEN AS SHOWN. 34. AA10183 FACIA ACRYL XONE: PX5 TFT. 35.
  • Page 13 AH-M0773 Assembly data Production Line Xone Product Assembly Stage Final assembly Issue Date 12/07/16 Revision Number ISSUE 1 37. FIT THE CROSSFADER TO THE FRONT PANEL NOTING ORIENTATION AND SECURE USING AB9037 SCREW M3X5 TRUNC CSK x2. 38. ENSURE ALL PROTECTIVE FILM IS REMOVED FROM THE TFT MODULE BEFORE FITTING TO THE FRONT PANEL.
  • Page 14 AH-M0773 Assembly data Production Line Xone Product Assembly Stage Final assembly Issue Date 12/07/16 Revision Number ISSUE 1 40. FIT AL10597 WFMA XONE 5WAY FROM THE MAIN PCBA TO THE CROSSFADER AND SECURE USING AK7655 CABLE TIE 2.5X100MM x1 AS SHOWN. 41.
  • Page 15 AH-M0773 Assembly data Production Line Xone Product Assembly Stage Final assembly Issue Date 12/07/16 Revision Number ISSUE 1 43. NOW CONNECT THE FRONT PANEL TO THE BASE ASSY. CONNECT TRANSITIONS x2 AND EARTH WIRE AS SHOWN. 44. CONNECT THE x2 REMAINING TRANSITIONS AS SHOWN.
  • Page 16 AH-M0773 Assembly data Production Line Xone Product Assembly Stage Final assembly Issue Date 12/07/16 Revision Number ISSUE 1 45. LOWER THE FRONT PANEL DOWN ONTO THE BASE. ENSURE ALL x4 CORNERS ARE LOCATED INSIDE THE RAISED EDGES OF THE BASE. YOU MAY NEED TO LOOSEN THE SCREWS ON THE SIDES TO LOCATE CORNERS.
  • Page 17 AH-M0773 Assembly data Production Line Xone Product Assembly Stage Final assembly Issue Date 12/07/16 Revision Number ISSUE 1 48. FIT AB8172 NUT POT 9MM BLACK x 37. FIT ENCODER NUT x1. 49. FIT AB7422 SCREW 2.7X9 AB TORX x7. FIT AB10256 JACK NUTS x4. FIT AJ7211 PUSH BTN SQ WHT x6.
  • Page 18 AH-M0773 Assembly data Production Line Xone Product Assembly Stage Final assembly Issue Date 12/07/16 Revision Number ISSUE 1 50. FIT AJ5320 FADER KNOB BK-WH. L XONE x5. IMPORTANT: NOTE ORIENTATION OF THE XONE LOGO. 51. FIT AJ7304 KNOB BK-WH. L SML x15. FIT AJ7305 KNOB BK-WH.LS LGE x18. FIT AJ10304 KNOB ENC.
  • Page 19 AH-M0773 Assembly data Production Line Xone Product Assembly Stage Final assembly Issue Date 12/07/16 Revision Number ISSUE 1 52. FIT AB6571 CLAMP CABLE P CLOSED x1 AND SECURE USING AB2921 SCREW M4X8 BTN HEAD TORX x1.
  • Page 20 AH-M0773 Assembly data Production Line Xone Product Assembly Stage Final assembly Issue Date 12/07/16 Revision Number ISSUE 1 53. FIT SERIAL NUMBER ON THE BASE AND PASS TO TEST.
