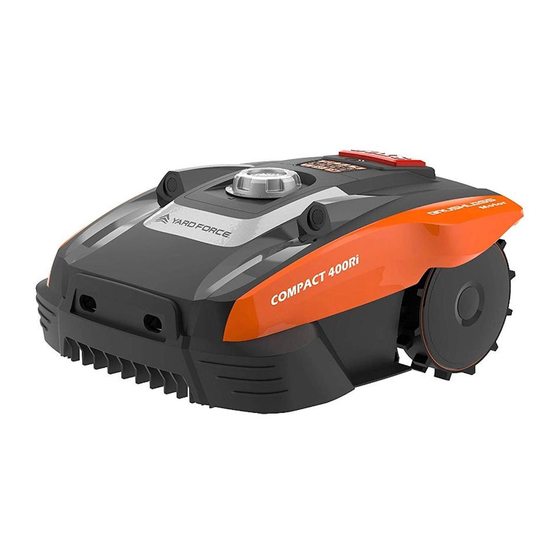

Summary of Contents for Yard force Compact 400Ri
- Page 1 The expert for robots in your home With one click to the online shop myRobotcenter.eu myRobotcenter.co.uk myRobotcenter...
- Page 2 20-30cm 20-30cm 20-30cm >2m > 10 cm Compact 280R 400Ri ROBOTMAAIER ROBOTIC MOWER Gebruiksaanwijzing Installation Guide MÄHROBOTER ROBOSEKAČKA Installationsanleitung Průvodce instalací ROBOT-TONDEUSE ROBOT KOSZĄCY Guide d’installation Instrukcja instalacji Nov. 2019 20-30cm V2.0...
-
Page 3: Table Of Contents
CONTENT Description of product STOP button Ultrasonic sensor Description of product ............1 Charging port Rear wheel Installation ..............2 Height adjustment dial Control panel Operation ..............10 USB interface On/Off switch Technical data ..............13 Maintenance and storage ..........14 Troubleshooting ............16 Parts included within this box Robotic Mower Docking station Spare blades... -
Page 4: Installation
Installation Stones We recommend clearing the lawn of small (less than 100mm high) rocks and stones and any stones with a round or sloped edge. The Robotic Mower might try and climb such rocks instead Installation Guide of recognising them as a barrier. A Robotic Mower getting stuck on such a stone requires user intervention to restart mowing. - Page 5 Do not place the docking station too close to a slope, such as at the top of a hill or the bottom of If the driveway and lawn are at the same level, feel free to use the boundary wire to create a corridor.
- Page 6 When initially placing the pegs, do not drive them fully into the ground. Use a light hammer to drive Ponds and Pools them in a little bit. Also locate the fixing pegs and lay each one on the lawn at approximately the While the Robotic Mower is protected against rain and spray water, being submerged is likely to correct distance from lawn edges (20-30cm) and obstacles.
- Page 7 Once the blue LED confirms all is OK, test the Robotic Mower's function. Check the LED regularly Signal selection to ensure fixing the boundary wire has not affected the connection and signal shows S1 on the There are two signals which can be selected, S1(blue indicator) and S2(red indicator). charging satation.
-
Page 8: Operation
Operation Control panel Home button: First press the Home Compact 280R Compact 400Ri button and the press the OK button, robotic Mower will return to docking station. Start button: Frist press the Start button and then press the OK button, robotic... -
Page 9: Technical Data
Technical Data Return to Docking station Model 280R 400Ri APP control Max cutting area 280 m 400 m Battery pack 20V/2000mAh 20V/2000mAh Input: 100-240V AC, 50/60Hz, Input: 100-240V AC, 50/60Hz, Switch power supply Output:24VDC, CC1.5A Output:24VDC, CC1.5A Mowing time on one charge 60 min 60 min Rated voltage... -
Page 10: Maintenance And Storage
Maintenance and storage Cleaning the underside Ensure the main power switch is in OFF position. Wearing protective gloves, turn the Robotic Maintenance works that have not been instructed within the manual should only be carried out by Mower onto its side to expose its underside. Clean the blade disc and frame using a soft brush or a recommended servicing agency. -
Page 11: Troubleshooting
Troubleshooting Robotic Mower cannot dock with docking station • Check that the boundary wire in front and underneath the charger is in a straight line. • Check that the docking station's position is suitable as explained in this manual. Robotic Mower runs in circles while mowing or while following boundary wire back to docking station.
