Toa F-160 Specification Sheet

WEATHER-RESISTANT SPEAKER
DESCRIPTION

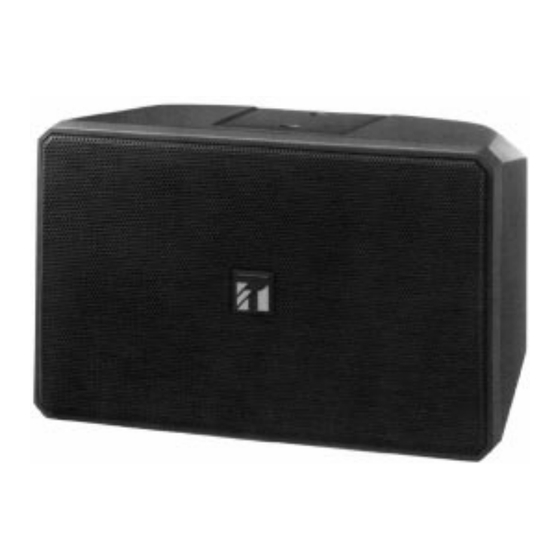

TOA's F-160WP two-way, ported speaker system com-
bines durable, weather-resistant construction with
superb acoustic characteristics. Ideal for outdoor
applications and high-humidity areas, the F-160WP
includes a 5" water-resistant cone speaker and 1"
dome tweeter with a high power handling capacity.
The F-160WP is engineered to combine maximum
efficiency with a flat frequency response when mount-
ed in a half- or quarter-space environment. The typical
position for a foreground/background speaker is
against a wall or at the intersection of a wall and a ceil-
ing or second wall. This is the acoustical environment
for which the new F-Series is optimized.
An extremely durable, low-foam polypropylene resin
enclosure ensures quality sound performance. An
internal 70/100 volt transformer is included, which
adjusts via a rotary switch under the rear cover.
The F-160WP is easy to install horizontally on walls
or under eaves with an optional outdoor mounting
bracket. To protect connection terminals, the enclosure
has a rear cover with a cable feed slot.
TOA SPEAKER SYSTEM
F-160WP
FEATURES
1. Two-way, weather-resistant speaker system with
1" dome tweeter and 5" drip-proof woofer.
Ideal for outdoor applications and high-humidity
2.
locations, such as swimming pools, ice arenas and
health clubs.
3. Includes built-in 70/100 volt transformer, adjustable
via rotary switch under the rear cover.
4. Engineered to provide maximum efficiency with a
flat frequency response when mounted in a half- or
quarter-space environment.
5. Durable, low-foam polypropylene resin enclosure in
dark gray enhances acoustic quality.
Enclosure has a rear cover with cable feed slot to
6.
protect connection terminals.
7. Installs easily on walls or under eaves with optional
outdoor mounting bracket.
Rear View
