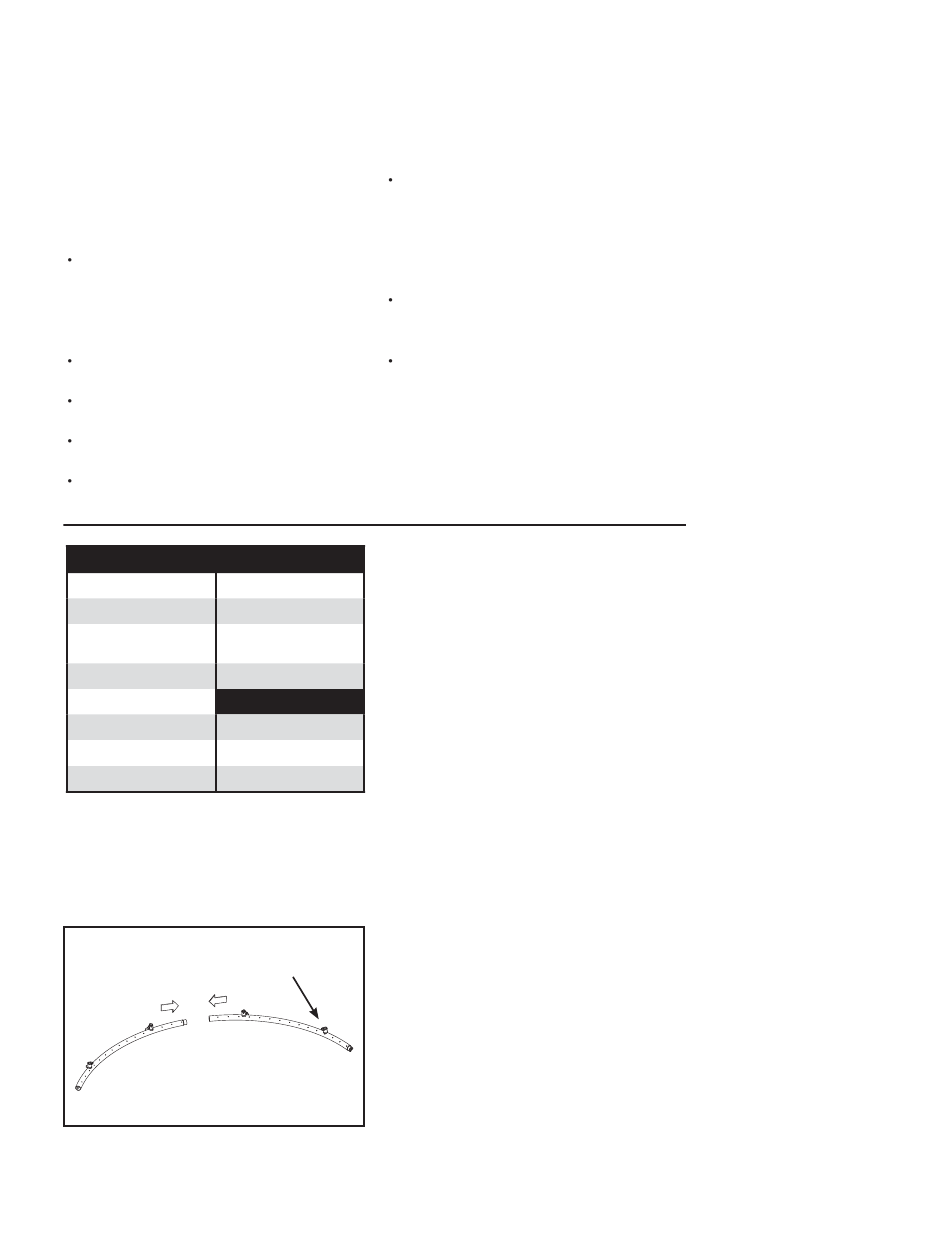

Springfree SF90E Assembly, Installation, Care, Maintenance, And Use Instructions page 9

TRAMPOLINE AND ENCLOSURE
ASSEMBLY INSTRUCTIONS
Read through the following steps before
beginning the assembly process.
Precautions
Keep small children at least 25 feet away
while assembling or disassembling the
trampoline; they could be injured by
improperly assembled rods releasing
and ejecting from the frame.
Do not attempt to use the trampoline
until it is completely assembled.
Two people are recommended for tram-
poline assembly.
Gloves are recommended during the as-
sembly process.
Be aware that when loaded, the rods can
TRAMPOLINE
Frame Sections 6 Net
Legs 6 Collapsible Rods
Vertical Leg 6 C-clips (attached
Supports to frame)
Rods 90
Mat 1
Bolts and Nuts 12 1 Spare Bolt/Nut
Wrench 2 3 C Clips
Sandbags 6
Table 1: Parts Itinerary
Figure 1: Assembling frame sections
Springfree™ Trampoline Model SF90E Trampoline and Enclosure Assembly, Installation, Care, Maintenance and Use Instructions Version 6.4
spring back and may cause injury.
Treat any loaded rod with caution until
you are sure it is properly installed. In
particular, keep your face well clear of
the rods during assembly or disassembly.
An improperly installed rod could release
and cause facial injury or blindness.
The sheath on the rod is intended to pro-
vide protection from any iberglass ibres
or splinters. Do not remove the sheath.
Once a rod ball is in the socket in the
mat, a small clip automatically engages
to lock it in place. To release a rod ball
from a socket, push and hold the clip
towards the mat centre before pushing
the rod out of the socket.
Preparation
ENCLOSURE
1
Conirm all components are present (Table 1).
12
If you are missing any parts please call your
12
authorized Springfree™ service centre listed in
the end section of this manual.
SPARES
Note: Bolts & Nuts
Standard - 5/16" X 2"
Metric -
Step 1: Assembling the frame
sections
leg socket
Assemble one pair of frame sections, with the
leg sockets facing upwards.
M8 X 50 mm
