Springfree SF90E Assembly, Installation, Care, Maintenance, And Use Instructions page 13

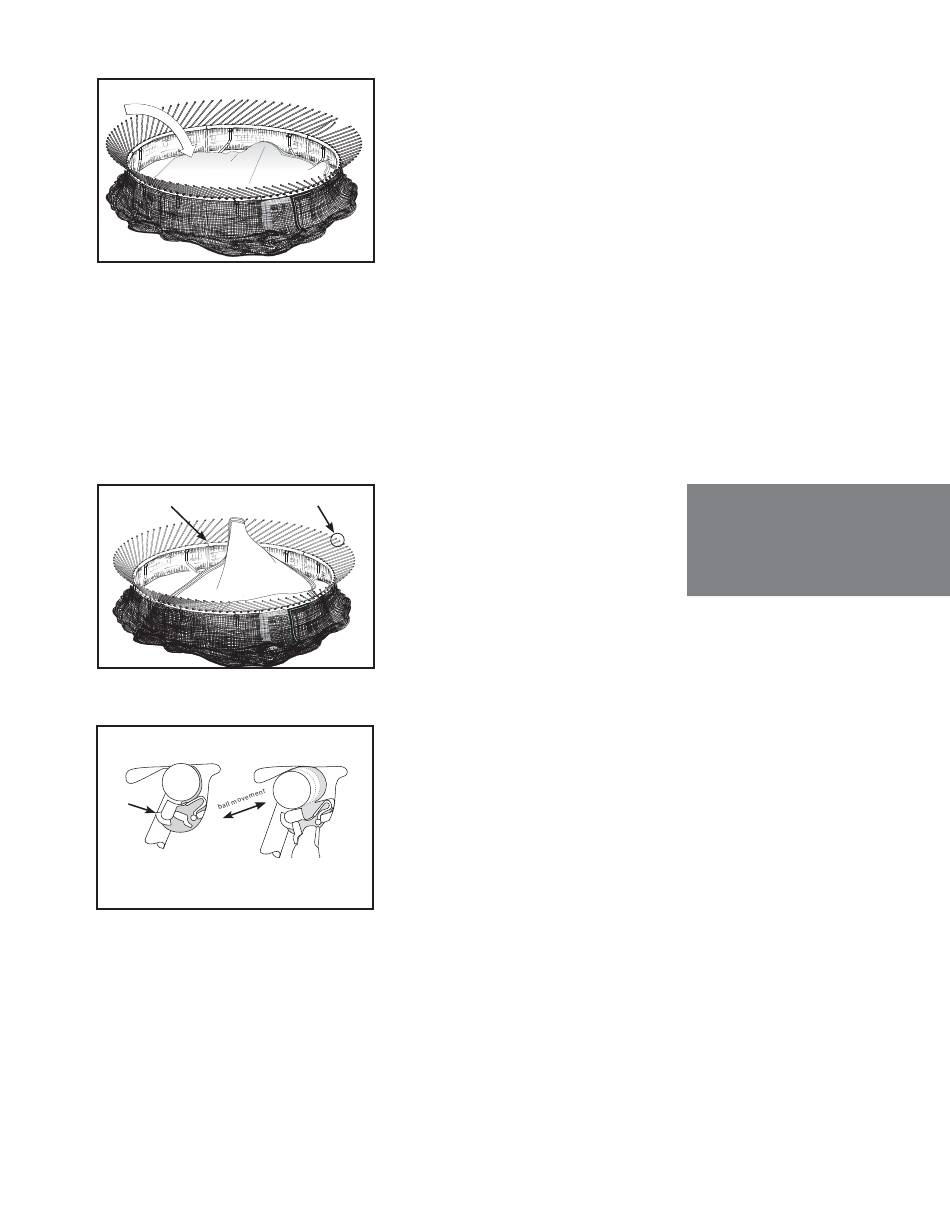

Figure 11: Placing the mat inside the frame
joint
Figure 12-A: Attaching the mat to the rods
clip
Figure 12-B: Safety clip operation. Clip secured (left);
Clip released (right)
Springfree™ Trampoline Model SF90E Trampoline and Enclosure Assembly, Installation, Care, Maintenance and Use Instructions Version 6.4
Step 11: Laying down the mat
When all rods are in place, put the mat inside
the frame with the jumping surface facing up.
The jumping surface has the colored (usually
yellow) stripes sewn around the edge.
Step 12: Attaching the irst rods to
next to be connected
the mat
Choose the rods on either side of a joint in the
frame. Connect the ball ends of these two rods
to two adjacent ittings in the mat.
Tip: Make sure the
safety clip in the
mat-edge socket
has closed behind
the ball. If the ball is
properly installed, you
should not be able to
slide the ball out of
the mat socket
(Figure 11-B).
WARNING: Treat any loaded rod
with caution until you are sure it is
properly installed or uninstalled.
Keep your face well clear of any
loaded rod.
13
