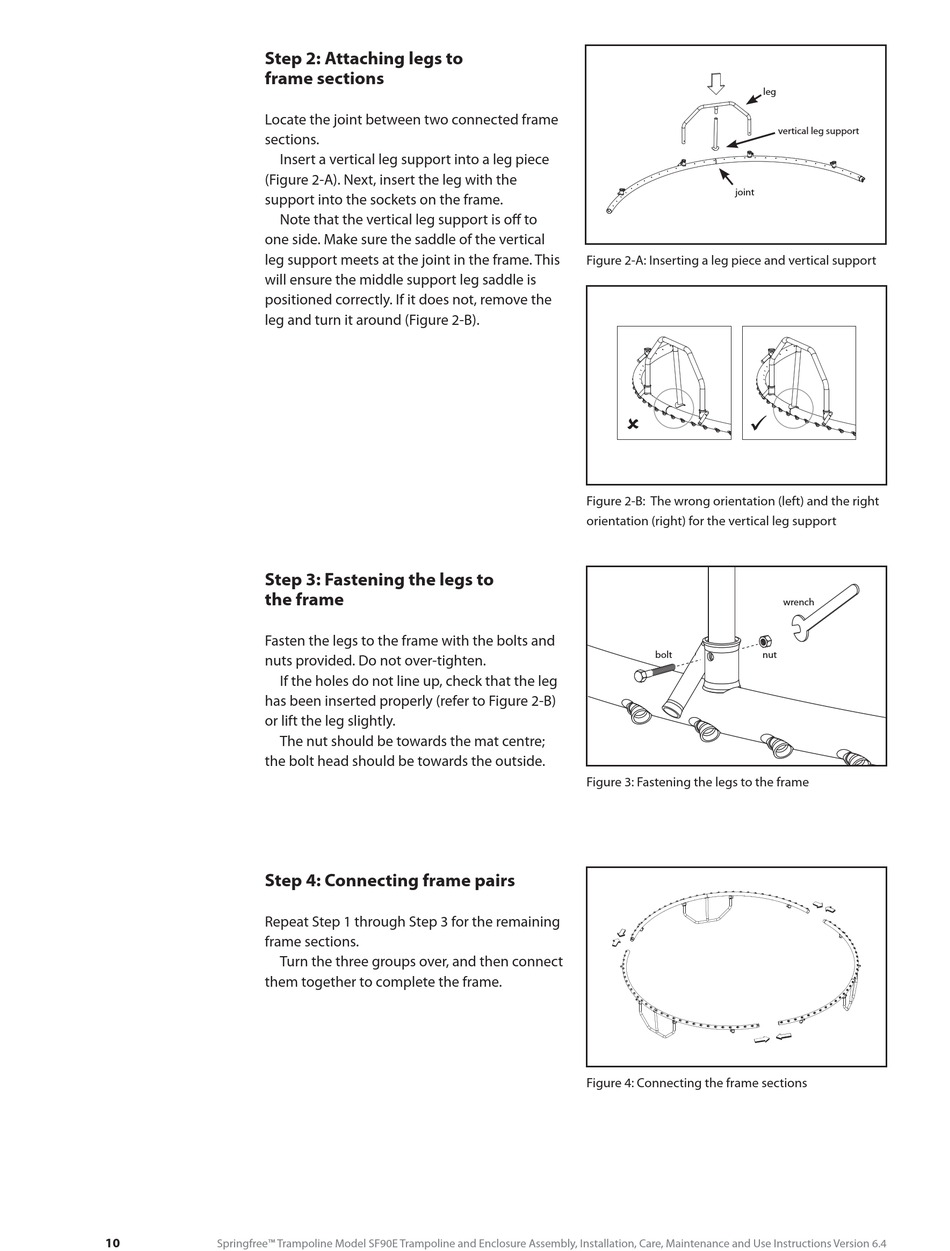

Step 2: Attaching legs to
frame sections
Locate the joint between two connected frame
sections.
Insert a vertical leg support into a leg piece
(Figure 2-A). Next, insert the leg with the
support into the sockets on the frame.
Note that the vertical leg support is of to
one side. Make sure the saddle of the vertical
leg support meets at the joint in the frame. This
will ensure the middle support leg saddle is
positioned correctly. If it does not, remove the
leg and turn it around (Figure 2-B).
Step 3: Fastening the legs to
the frame
Fasten the legs to the frame with the bolts and
nuts provided. Do not over-tighten.
If the holes do not line up, check that the leg
has been inserted properly (refer to Figure 2-B)
or lift the leg slightly.
The nut should be towards the mat centre;
the bolt head should be towards the outside.
Step 4: Connecting frame pairs
Repeat Step 1 through Step 3 for the remaining
frame sections.
Turn the three groups over, and then connect
them together to complete the frame.
10
Springfree™ Trampoline Model SF90E Trampoline and Enclosure Assembly, Installation, Care, Maintenance and Use Instructions Version 6.4
leg
joint
Figure 2-A: Inserting a leg piece and vertical support
˚ ¸
Figure 2-B: The wrong orientation (left) and the right
orientation (right) for the vertical leg support
bolt nut
Figure 3: Fastening the legs to the frame
Figure 4: Connecting the frame sections
vertical leg support
wrench
