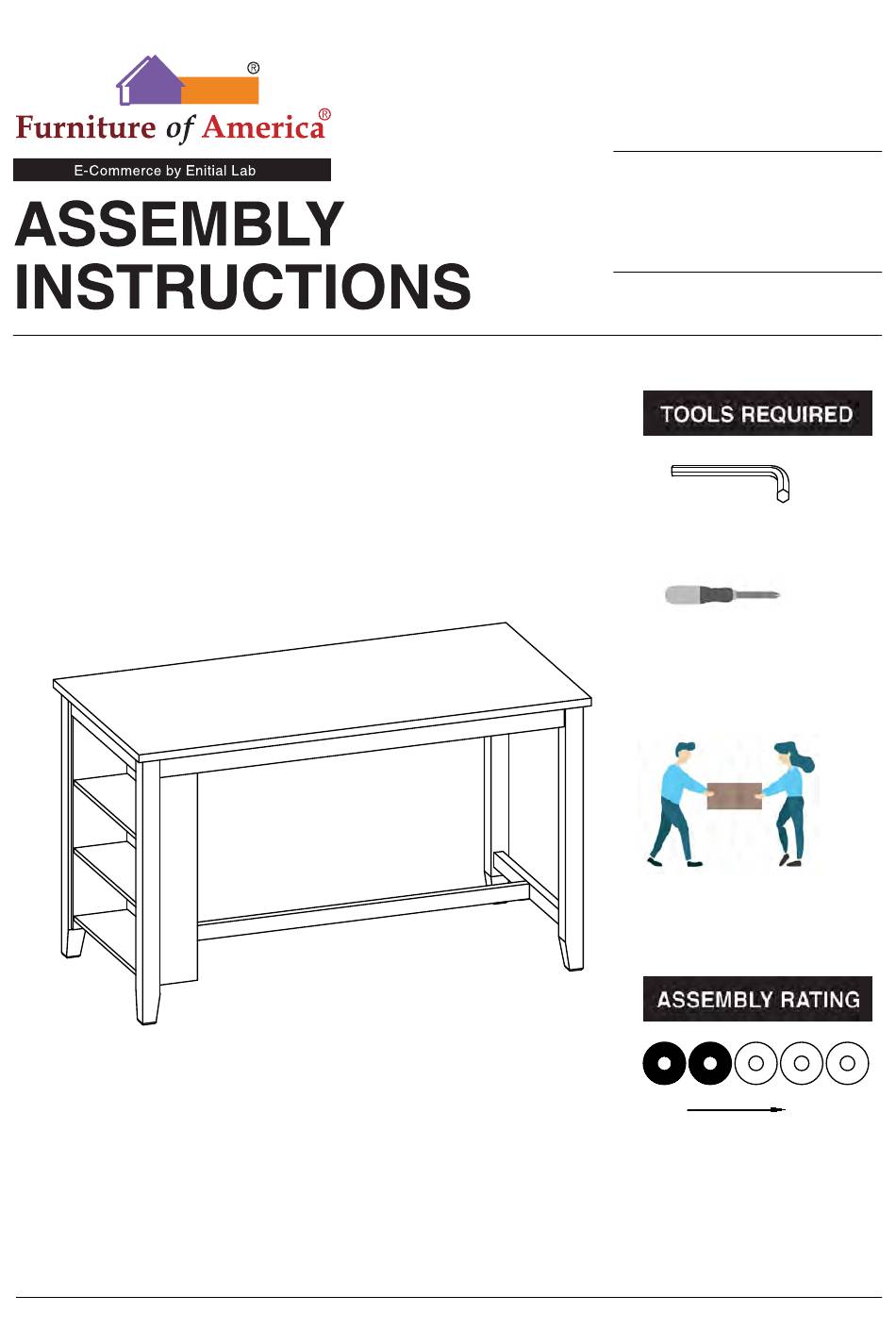

VERSION
# 20-01-10
1 / 11
MODEL #
CM3153GY-PT
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Lana CM3153GY-PT
Summary of Contents for Furniture of America Lana CM3153GY-PT
- Page 1 MODEL # CM3153GY-PT Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 11...
- Page 5 TABLE CM3153GY-PT #1 1pc #2 1pc #3 3pcs Storage Panel Shelf Table Top #4 1pc #5 2pcs #6 1pc Table Leg (L) Table Leg (R) Table Leg (R) #7 1pc #8 1pc #9 1pc Long Stretcher Short Stretcher Table Leg (L) #A 8pcs #B 6pcs #C 14pcs...
- Page 6 #D 2pcs #E 8pcs #F 8pcs #G 6pcs Screw #4 x 45mm Lock Washer Ø5/16" Flat Washer Ø5/16" Lock Washer Ø1/4" #H 6pcs # I 12pcs #J 1pc Flat Washer Ø1/4" Layer board supporting Allen Wrench 4mm 6 / 11...
- Page 7 ASSEMBLY INSTRUCTIONS Align shelf (#3) to the storage panel (#2), then secure by using screws (#C). Part #2 x1pc Part #3 x1pc Hardware #C x4pcs Hardware # I x4pcs Part #3 x1pc Hardware #C x4pcs Align shelf (#3) to the storage panel Hardware # I x4pcs (#2), then secure by using screws...
- Page 8 ASSEMBLY INSTRUCTIONS Part #3 x1pc Hardware #C x4pcs Align shelf (#3) to the storage panel (#2), Hardware #I x4pcs then secure by using screws (#C). Align legs (#4,5) to the top (#1), then secure by using bolts (#A) with washers (#E,F).
- Page 9 ASSEMBLY INSTRUCTIONS Align storage (#2) to the legs (#4,5), then secure by using bolts (#B) with washers (#G,H,). Hardware #B x6pcs Hardware #G x6pcs Hardware #H x6pcs Align leg (#7) to the top (#1), then secure by using bolts (#A) with washers (#E,F). Part #7 x1pc Hardware...
- Page 10 ASSEMBLY INSTRUCTIONS Align stretchers (#8,9) to the unit, then secure by using screws (#C,I). Part #8 x1pc Part #9 x1pc Hardware #C x2pcs Align leg (#6) to the top, then secure by using bolts (#A) with washers (#E,F). Align stretcher, then secure by using screws (#D).
- Page 11 ASSEMBLY INSTRUCTIONS 11 / 11...
