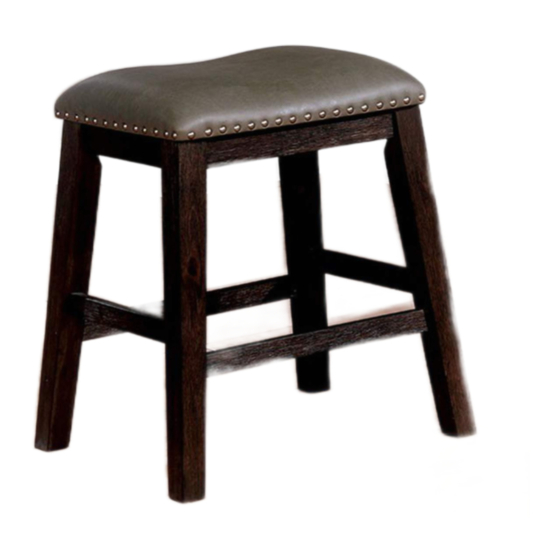

Furniture of America CM3153ST-2PK Assembly Instructions

For more information contact our team: service.ec@foagroup.com

ASSEMBLY RATING

The Assembly Rating is a 5-point system that

shows the degree of effort needed in

assembling a specific product (with 1 being

easy and 5 being difficult). For some

products, two persons are recommended.

EASY

Assembly Instructions

CM3153ST-2PK

DIFFICULT

Tools Required For Assembly:

Allen Wrench

Phillips Screwdriver

Page 1 of 4

(Included)

(Not Included)

Rev: 18-06-18

Table of Contents

Do you have a question about the CM3153ST-2PK and is the answer not in the manual?

Page 1 Assembly Instructions For more information contact our team: service.ec@foagroup.com CM3153ST-2PK ASSEMBLY RATING Tools Required For Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench assembling a specific product (with 1 being (Included) easy and 5 being difficult).
Page 2 LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. Page 2 of 4...
Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #1 x 1pc x 2 #A x 8pcs x 2 Bolt Ø1/4"x2-3/8" Cushion Seat #B x 8pcs x 2 #2 x 2pcs x 2 Left Leg Lock Washer Ø1/4"...
Page 4 1) Align and secure legs (#2,3) to cushion seat (#1) by using bolts (#A) with washers (#B,C). Make sure that bolts (#A) are not fully tightened, so that the legs (#2,3) are very loose. 2) Align stretchers (#4,5) to the holes of the legs (#2,3). 3) Fully tighten bolts (#A) on the legs (#2,3).
