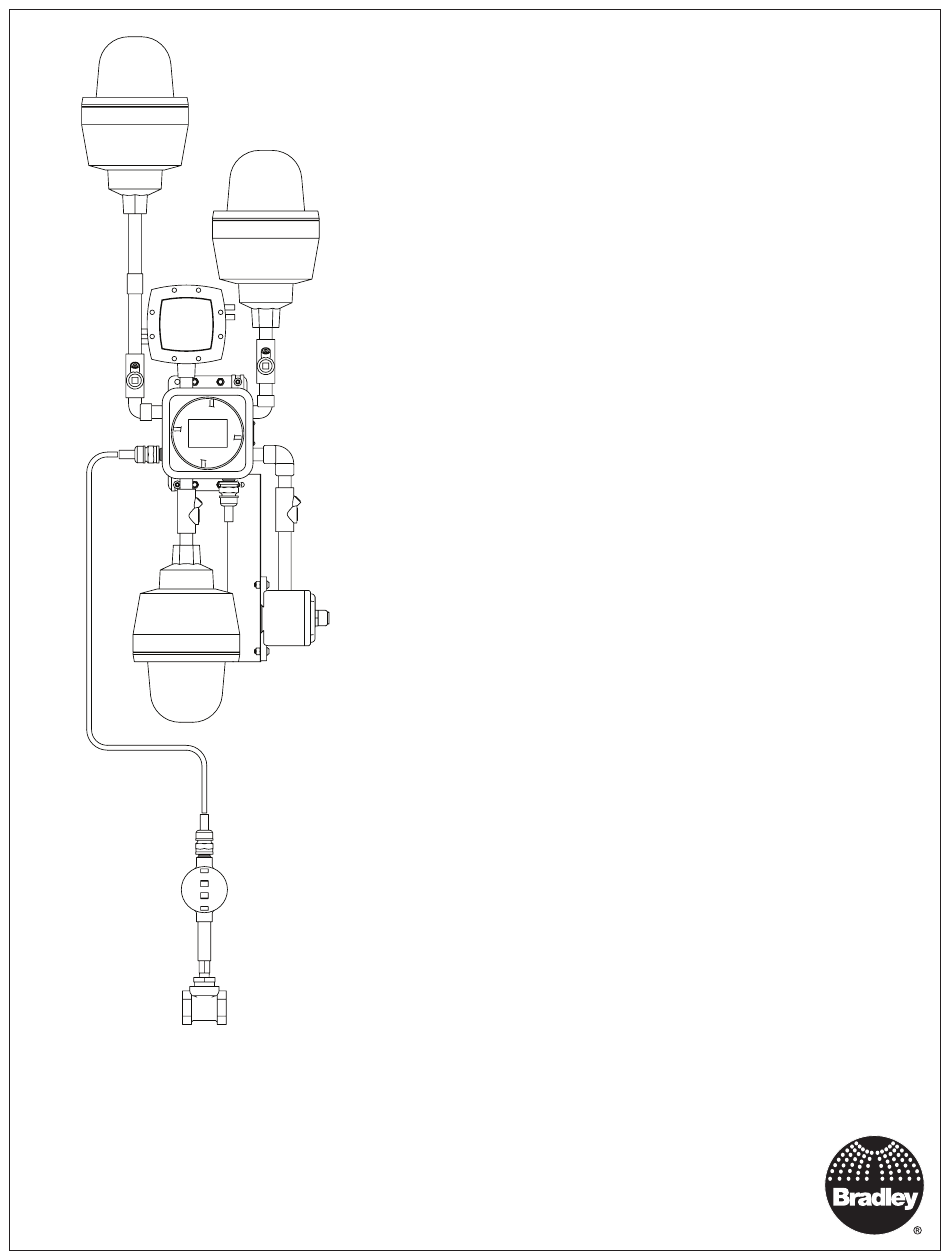

Installation
S19-324D1
Class I, Division 1, Groups C & D
Explosion Proof
Emergency Signaling System
Table of Contents
Pre-Installation Information .................................... 2-3
Assembly of Components ..........................................4
Connect Signaling Assembly to Flow Switch .............6
Attach Beacon and Area Lights .................................6
Complete Electrical Supply Connections ...................6
Conduit Seals ............................................................6
Test the Signaling System .........................................7
Maintenance ..............................................................7
Remote Sensing Option .............................................7
Servicing of Lights .....................................................8
Troubleshooting ..........................................................8
Service Parts ....................................................... 9-10
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
+1 262 251 6000
P.O. Box 309
bradleycorp.com
Advertisement
Table of Contents
Related Manuals for Bradley S19-324D1
Summary of Contents for Bradley S19-324D1
-
Page 1: Table Of Contents
Servicing of Lights .............8 Troubleshooting ............8 Service Parts ............9-10 P.O. Box 309 Menomonee Falls, WI 53052 USA 215-1848 Rev. G: ECO 20-05-028 800 BRADLEY (800 272 3539) © 2020 Bradley +1 262 251 6000 Page 1 of 10 6/11/2020 bradleycorp.com... -
Page 2: Pre-Installation Information
Failure to do so may result in major product and/or property damage. Constant power supply to safety equipment is necessary for it to function. Avoid cleaners containing organic solvents, alcohols and hydrocarbons. Rinse with potable water after cleaning. Bradley • 215-1848 Rev. G: ECO 20-05-028 6/11/2020... - Page 3 The ANSI/ISEA Z358.1 standard requires an uninterrupted supply of flushing fluid. Bradley plumbed emergency fixtures require a minimum of 30 PSI (0.21MPa) flowing pressure.
-
Page 4: Assembly Of Components
Body connects ONLY ground black and white wires. Brass Adapter and Tee 1/2" (eyewash) 2-3/8" (60mm) for or 1¼" (drench eyewash or shower) NPT Inlet 3-9/16" (91mm) for and Outlet drench shower Bradley • 215-1848 Rev. G: ECO 20-05-028 6/11/2020... -
Page 5: Install The Flow Switch And Mount Signaling Assembly
NOTICE! If the water supply line will be exposed to installation is NOT supplied). temperatures at or below freezing, the inlet supply must be freeze-protected 6 inches above the flow switch tee (freeze protection by others). Bradley • 215-1848 Rev. G: ECO 20-05-028 6/11/2020... -
Page 6: Connect Signaling Assembly To Flow Switch
Do not exceed 14 AWG wire. Conduit Seals Unit is provided with sealing compound and conduit seals. Seal Seals must be filled by installer Seal prior to powering the unit per seal manufacturer's instructions. Seal Seal Bradley • 215-1848 Rev. G: ECO 20-05-028 6/11/2020... -
Page 7: Test The Signaling System
Signaling System Maintenance The Bradley Emergency Signaling System is designed to be virtually maintenance free. An occasional damp cloth wiping of the clear dust cover is all that is needed to ensure maximum visual attention-getting ability. Remote Sensing Option Flow Switch Capability (see supplied wiring diagram) If remote sensing is wanted, remove the pipe plug from the back of the junction box. -
Page 8: Servicing Of Lights
Check that there is 24VDC being supplied from the power supply mounted on the print circuit board in the signal station enclosure. Component failure. Check light connections and filament in the light. Bradley • 215-1848 Rev. G: ECO 20-05-028 6/11/2020... -
Page 9: Service Parts
S19-324D1 Installation S19-324D1 Service Parts 64 65 39 36 36 81 38 77 Bradley • 215-1848 Rev. G: ECO 20-05-028 6/11/2020... - Page 10 Plate PM, Pipe Mount S70-176 Mounting Plate, Heat Trace *Requires sealing compound if replaced. One sealing compound will fill two seal fittings. **Re-program per manufacturer's instructions to be steady state light if ordered for service. Bradley • 215-1848 Rev. G: ECO 20-05-028 6/11/2020...
