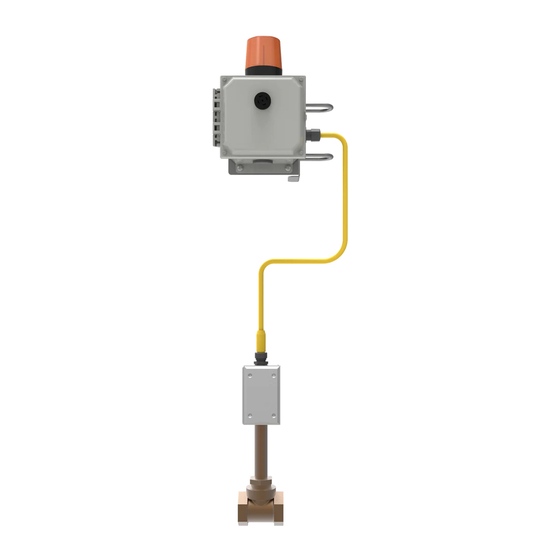

S19-324DGW shown
215-1846 Rev. G: ECO 20-05-028
© 2020 Bradley
Page 1 of 12
6/11/2020
Installation
S19-323
NEMA 3R
S19-324
NEMA 4X
Emergency Signaling System
Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Install Flow Switch and Mount Assembly . . . . . . . . . . . . . . . . 6
Connect Signaling Assembly to Flow Switch . . . . . . . . . . . . . . 7
Complete Electrical Supply Connections . . . . . . . . . . . . . . . . . 7
Test the Signaling System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Sensing Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Servicing of Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-12
