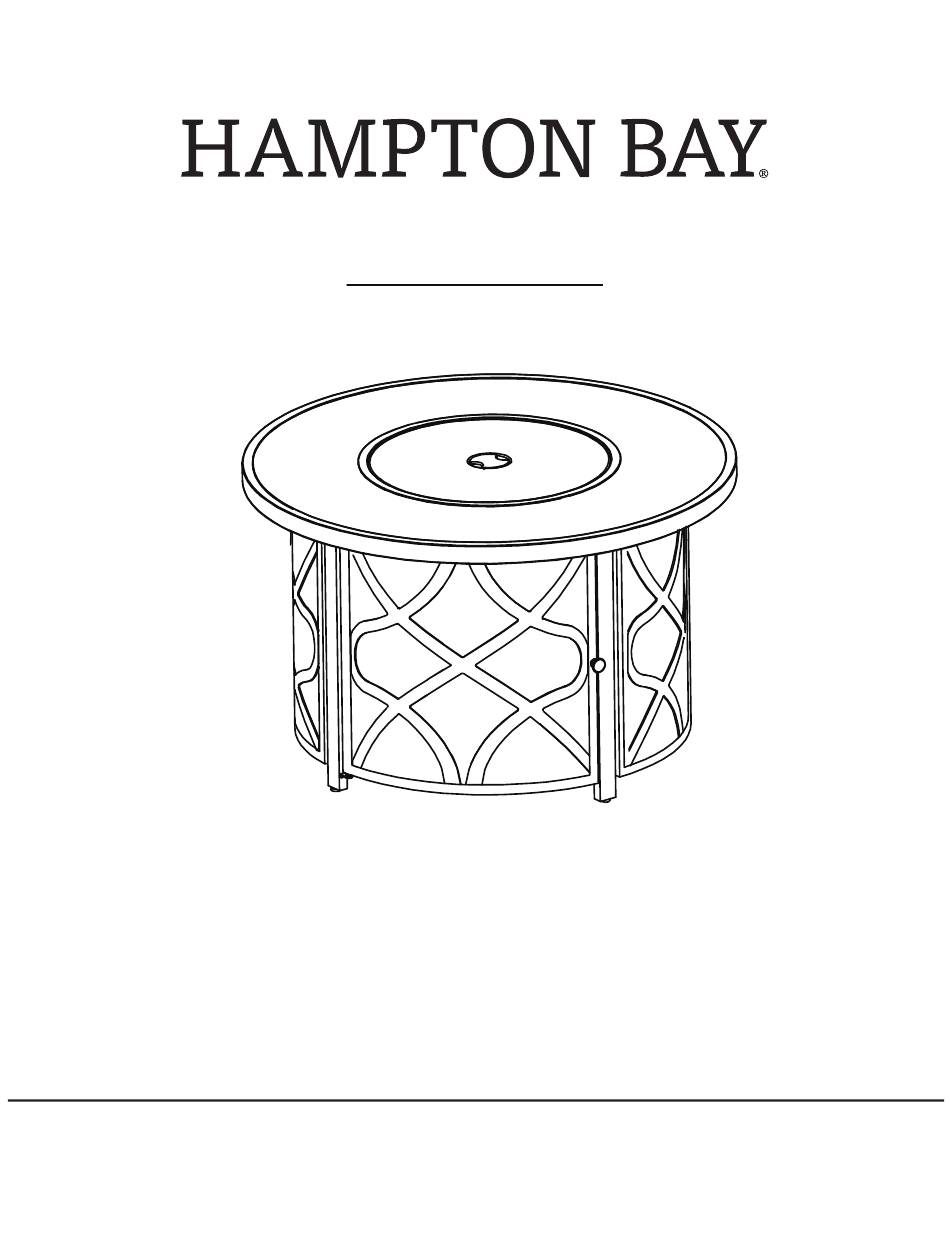

Item #1005 045 453
Model # FHTS80166
USE AND CARE GUIDE
BOWBRIDGE STEEL LP FIRTPIT
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvements needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BOWBRIDGE STEEL LP FIRTPIT FHTS80166 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HAMPTON BAY BOWBRIDGE STEEL LP FIRTPIT FHTS80166

Summary of Contents for HAMPTON BAY BOWBRIDGE STEEL LP FIRTPIT FHTS80166

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvements needs.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARNING Table of Contents FOR YOUR SAFETY: Table of Contents......2 Assembly .
  • Page 3 Important Safety Information WARNING: Fire table is for outdoor use only. WARNING: Failure to follow the dangers, warning and cautions in this manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property. IMPORTANT NOTICE IF YOU SMELL GAS Extinguish any open flame.
  • Page 4 Important Safety Information (continued) The use of alcohol, prescription or non-prescription drugs may impair an individual’s ability to properly assemble or safely operate this outdoor fire table. DO NOT use in an explosive atmosphere. Keep gas fire table area a clear and free from combustible materials, such as gasoline. This outdoor fire table is not to be installed or used in or on recreational vehicles and/or boats.

  • Page 5: Propane (Lp) Dangers And Warnings

    Important Safety Information (continued) ATTENTION: Any alteration of the outdoor fire table that is not specifically directed in the operations manual will void manufacturer warranty. PROPANE (LP) DANGERS AND WARNINGS LP GAS LP gas is flammable and hazardous if handled improperly. Familiarize yourself with its hazards before using any LP gas product. PROPANE HAZARDS Flammable, explosive under pressure, heavier than air and settles in pools in low areas.

  • Page 6: Hose & Regulator Assembly And Replacement

    Important Safety Information (continued) HOSE AND REGULATOR ASSEMBLY AND REPLACEMENT 1. This fire table comes equipped with a standard LP gas hose and regulator including the appliance side connection for a CGA No. 791 Cylinder Connection Device. The LP gas hose and regulator supplied with this fire table must be used. Only a hose and regulator specified by manufacturer can be used for replacement.

  • Page 7: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity...

  • Page 8: Packaging Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts Burner Lid specifically approved with this appliance may result Table Top in property damage or personal injury. Leg C Leg D Leg E...

  • Page 9: Assembly

    Assembly CONNECTING THE LEGS Place the table top (B) upside down on a soft surface. Attach the legs (C&D&E) to the table top (B) using M6X15 combination bolts (AA). Do not tighten the bolts at this step. NOTE: Pay attention to the direction of control knob, it must place as below direction shown. NOTE: Loosely tighten all the bolts using hex wrench (EE).
  • Page 10 Assembly (continued) CONNECTING THE SIDE PANEL Attach the side panel (F) to the table top (B) using M6X15 combination bolts (AA). Do not tighten the bolts at this step. NOTE: Loosely tighten all the bolts using hex wrench (EE).
  • Page 11 Assembly (continued) CONNECTING THE LIMIT TUBE Attach the limit tube (H) to the leg (C&D) using M6X15 combination bolts (AA). Do not tighten the bolts at this step. NOTE: Loosely tighten all the bolts using hex wrench (EE). HAMPTONBAY.COM. Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 12 Assembly (continued) CONNECTING THE TANK SUPPORT Attach the tank support (I) to the leg (C&D&E) using M6X15 combination bolts (AA). Do not tighten the bolts at this step. NOTE: Loosely tighten all the bolts using hex wrench (EE). HAMPTONBAY.COM. Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 13 Assembly (continued) CONNECTING THE DOOR Attach the door (G) to the leg (C) using an M6X12 countersunk bolt (BB) and plastic washers (CC), as shown below. NOTE: Tighten all the bolts using hex wrench (EE) at this step. HAMPTONBAY.COM. Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 14 Assembly (continued) ATTACH THE KNOB TO THE DOOR Attach the knob (DD) to the door (C) shown below. HAMPTONBAY.COM. Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 15 Assembly (continued) CHECK THE TABLE AND PLACE THE LAVA ROCKS Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (EE) Place the lava rocks (J) into the burner bowl (K). CAUTION: To ensure proper function, the screen on the pilot housing should be free of lava rocks. CORRECT INCORRECT HAMPTONBAY.COM.
  • Page 16 Assembly (continued) PLACE THE BURNER LID Place the burner lid (A) over the burner bowl (K). Make sure to remove the burner lid before lighting. Do not place the lid back onto burner bowl until it has cooled down. WARNING: Surfaces on the fire table can remain extremely hot for a period after use.

  • Page 17: Operating

    Operation INSERT THE BATERRY AND CONTROL KNOB Insert the AAA battery (FF) and control knob (N) into the manual electric igniter (N) and twist the button cover on to igniter housing. Do not over tighten. HAMPTONBAY.COM. Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 18 Operation (continued) INSTALLING LP GAS TANK Loosen LP gas tank retainer bolt by turning counter-clockwise. Secure tank by turning LP gas tank retainer bolt clockwise until tight. CAUTION: LP gas tank must be properly disconnected and removed prior to moving this HAMPTONBAY.COM.
  • Page 19 Operation (continued) CONNECTING LP GAS TANK Before connecting, be sure there is no debris caught in the head of the LP gas tank, head of the regulator valve or in the head of the burner ports. Connect the regulator/hose assembly to tank by turning knob clockwise until it stops. HAMPTONBAY.COM.
  • Page 20 Operation (continued) DISCONNECTING LP GAS TANK Before disconnecting make sure the LP gas tank valve is “CLOSED”. Disconnect regulator/hose assembly from LP gas by turning knob conter-clockwise until it is loose. Place the protective cap cover on the LP gas tank and store it outdoors in a well-ventilated area out of direct sunlight. HAMPTONBAY.COM.
  • Page 21 Operation (continued) CHECKING FOR LEAKS AND BURNER CONNECTIONS the “Important Safety Information” section on page 2 to 6. Failure to follow those instructions can serious, injury or property cause death, damage. Make sure the regulator/hose and valve connections are securely fastened to the burner and the tank. Please refer to Figures 1 and 2 for proper installation.
  • Page 22 Operation (continued) TANK/GAS LINE CONNECTION LEAK TEST Make 2-3 oz. of leak detection solution by mixing one part liquid dishwashing soap with three parts water. Make sure the switch knob is in the “OFF” position. Connect LP gas tank per “CONNECTING LP GAS TANK” SECTION. Turn LP gas tank valve to “OPEN”.
  • Page 23 Operation (continued) CLOSE THE DOOR Close the door. Now the re table is complete and ready to use. HAMPTONBAY.COM. Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 24 CAUTION: Operation (continued) Failure to follow these instructions CAUTION: could cause a fire or an explosion which can cause death, serious bodily injury or damage to property. NEVER light the burner with WARNING: Keep outdoor gas appliance area CAUTION: 15.7 - 26.7 In. (40-68 cm) clear and free from combustible materials, gasoline and other flammable vapors and liquids.
  • Page 25 Operation (continued) LIGHTING (CONTINUED) 11. If igniter does not light burner: a. Wearing heat-resistant gloves, position a long, lit match or long, lit butane lighter near the pilot housing. b. Push and turn control knob to “ON”. c. Remove match/lighter once burner is lit. 12.

  • Page 26: Care And Maintenance

    Care And Maintenance Cleaning Surfaces 1. Wipe surfaces clean with mild dishwashing detergent or baking soda mixed with water. 2. For stubborn stains, use a citrus-based cleaner and a nylon scrubbing brush. 3. Rinse clean with water. 4. Allow to air dry. Before Storing 1.

  • Page 27: Troubleshooting

    Troubleshooting Make sure that the regulator is securely attached to the The LP gas tank valve is closed. LP gas tank per the "Installing the Gas Tank" section. Then turn the LP gas tank valve to "OPEN." The LP gas tank is low or empty. Exchange, refill or replace LP gas tank.
  • Page 28 Troubleshooting Exchange, refill or replace LP gas tank Out of gas. 1. Turn control knob to “OFF”. 2. Wait 30 seconds and light outdoor re table per “Lighting” section. 3. If flames are still too low, reset the overfilling prevention device: a.
  • Page 29 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
