Item # 1001 748 144
Model # FHPS80009

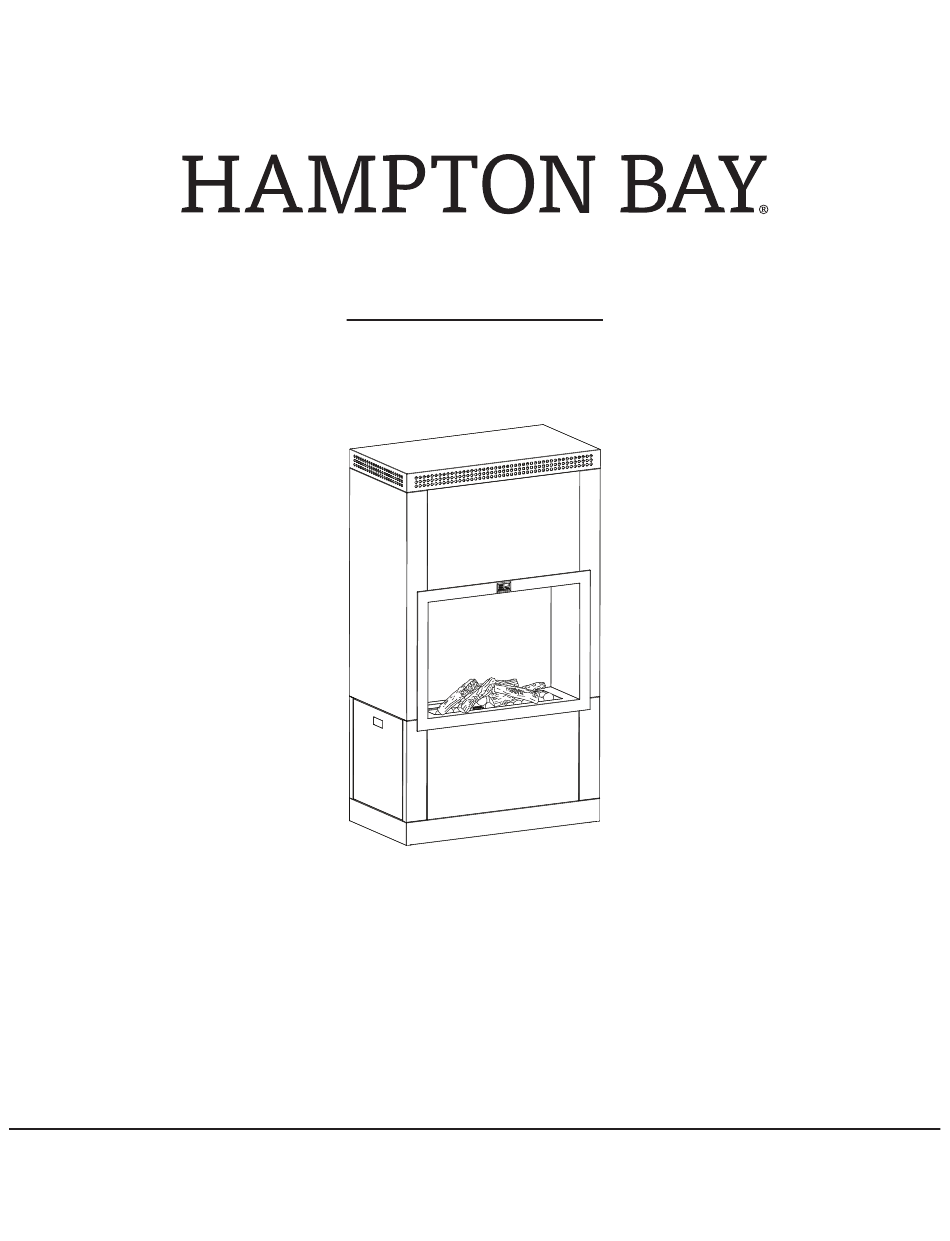

USE AND CARE GUIDE

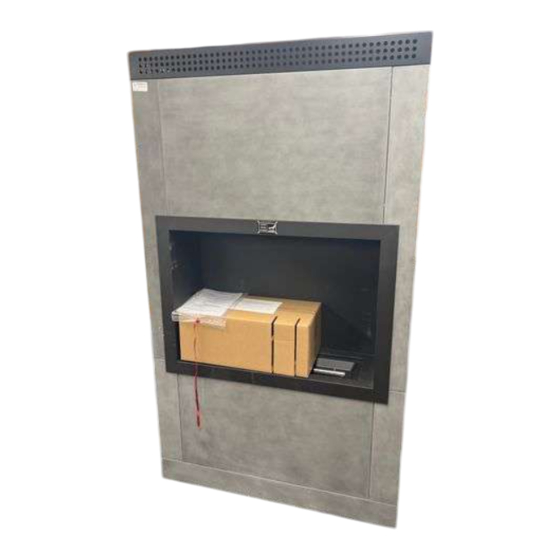

WAREHAM DISTILLED OUTDOOR LP FIREPLACE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this fireplace. We strive to continually create
quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY WAREHAM FHPS80009
Summary of Contents for HAMPTON BAY WAREHAM FHPS80009
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this fireplace. We strive to continually create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Pre-Assembly ........7 T able of Contents . - Page 3 Safety Information (continued) WARNING: Fireplace is for outdoor use only. Installation and repair should be done by a quali ed service person. The appliance should be inspected before use and at least annually by a quali ed service person. More frequent cleaning may be required as necessary. It is imperative that the control compartment, burners and circulating air passageways of the appliance are kept clean.
- Page 4 Safety Information (continued) The use of alcohol, prescription or non-prescription drugs may impair an individual’s ability to properly assemble or safely operate this outdoor fireplace. DO NOT use in an explosive atmosphere. Keep gas fireplace area clear and free from combustible materials, such as gasoline. This outdoor fireplace is not to be installed or used in or on recreational vehicles and/or boats.
-
Page 5: Propane (Lp) Dangers And Warnings
Safety Information (continued) ATTENTION: Any alteration of the outdoor fireplace that is not specifically directed in the operations manual will void manufacturer warranty. PROPANE (LP) DANGERS AND WARNINGS LP GAS LP gas is flammable and hazardous if handled improperly. Familiarize yourself with its hazards before using any LP gas product. PROPANE HAZARDS Flammable, explosive under pressure, heavier than air and settles in pools in low areas. -
Page 6: Hose & Regulator Assembly And Replacement
Safety Information (continued) HOSE AND REGULATOR ASSEMBLY AND REPLACEMENT This fireplace comes equipped with a standard LP gas hose and regulator including the appliance side connection for a CGA No. 791 Cylinder Connection Device. The LP gas hose and regulator supplied with this fireplace must be used. Only a hose and regulator specified by manufacturer can be used for replacement. -
Page 7: Warranty
Warranty 1 YEAR FRAME WARRANTY WHAT IS COVERED We warrant the frame to be free of manufacturing defects to the original purchaser for one year. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover commercial use, hardware, acts of nature, fire, freezing and abusive use. -
Page 8: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Main Body Burner Bowl Burner Head Pilot Housing Manual Electric Igniter Control Knob Regulator/Hose Assembly Pumice Stone Log 1 Log 2 Log 3 Log 4 Log 5 AAA Battery... -
Page 9: Assembly
Assembly Placing the Pumice Stone and the Logs Place the pumice stone (H) and the logs (I&J&K&L&M) to the burner bowl (B). To ensure proper function, the screen on this burner should be free of pumice stones. CAUTION: Pilot Housing Burner Tube do not... -
Page 10: Operation
Operation Installing the LP Cas Tank To operate, you will need one precision- lled standard grill LP gas tank with external valve threads. Loosen LP gas tank retainer bolt by turning counter-clockwise. Place precision- lled LP gas tank upright into hole in outdoor replace base so the tank value is facing the gas line connection. Secure tank by turning LP gas tank retainer bolt clockwise until tight. - Page 11 Operation (continued) Connecting the LP Gas Tank Before connecting, be sure there is no debris caught in the head of the LP gas tank, head of the regulator valve or in the head of the burner ports. Connect the regulator/hose assembly to tank by turning knob clockwise until it stops. Disconnecting the LP Gas Tank Before disconnecting make sure the LP gas tank valve is “CLOSED”.
- Page 12 Operation (continued) Checking For Leaks and Burner Connections Before using this outdoor replace, make sure you have read, understood and are following all information provided in the “Safety Information” section on pages 2 to 6. Failure to follow those instructions can cause serious injury, damage to property or result in death. Make sure the regulator/hose and valve connections are securely fastened to the burner and the tank.
- Page 13 Operation (continued) Checking For Leaks and Burner Connections Make 2-3oz. of leak detection solution by mixing one part liquid dishwashing soap with three parts water. Make sure the control knob is in the “OFF” position. Connect LP gas tank per “INSTALLING LP GAS TANK” SECTION. Turn LP gas tank valve to “OPEN”.
- Page 14 Operation (continued) Inserting the Battery and Control Knob Insert the AAA battery (N) into the manual electric igniter (E) and twist the button cover on to igniter housing. Do not over tighten. Do not put batteries into the re or trash. Please treat batteries as hazardous waste CAUTION: and recycle properly.
- Page 15 Operation (continued) Failure to follow these instructions CAUTION: could cause a fire or an explosion which can cause death, serious bodily injury or damage to property. Never light burner with the cover on the outdoor replace. WARNING: Keep outdoor gas appliance area clear and free from combustible materials, gasoline and other CAUTION: ammable vapors and liquids.
- Page 16 Operation (continued) LIGHTING (CONTINUED) 11. If igniter does not light burner: a. Wearing heat-resistant gloves, position a long, lit match or long, lit butane lighter near the pilot housing. b. Push and turn control knob to “ON”. c. Remove match/lighter once burner is lit. .
-
Page 17: Care And Maintenance
Care and Maintenance Cleaning Surfaces Wipe surfaces clean with mild dishwashing detergent or baking soda mixed with water. For stubborn stains, use a citrus-based cleaner and a nylon scrubbing brush. Rinse clean with water. Allow to air dry. Before Storing Turn LP gas tank valve to “CLOSED”. -
Page 18: Troubleshooting
Troubleshooting Problem Possible Cause Solution Make sure that the regulator is securely attached to the LP The LP gas tank valve is closed. gas tank per the "Installing the LP Gas Tank" section. Then turn the LP gas tank valve to "OPEN." The LP gas tank is low or empty. - Page 19 Troubleshooting (continued) Exchange, refill or replace the LP gas tank. The tank is out of gas. Turn control knob to “OFF”. Wait 30 seconds and light the outdoor replace per the “Lighting” section. If flames are still too low, reset the overfilling prevention device: Turn the control knob to “OFF”.
- Page 20 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use.
