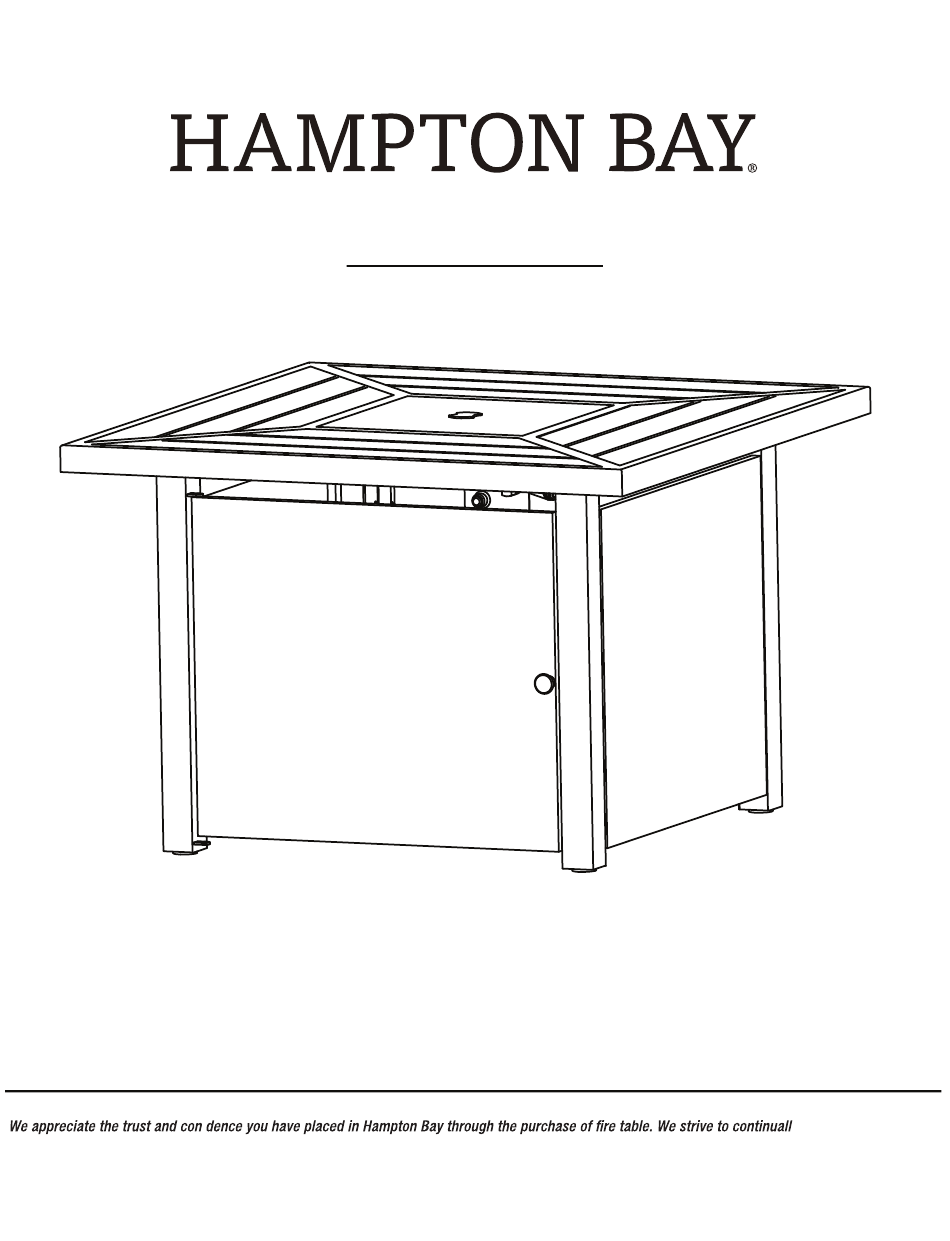

Item #1001 390 690
Model #FHWS80004A
USE AND CARE GUIDE
36 IN SQUARE LPG FIRE TABLE WITH WICKER BASE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
y create quality products
designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FHWS80004A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HAMPTON BAY FHWS80004A

Summary of Contents for HAMPTON BAY FHWS80004A

  • Page 1 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA THANK YOU y create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARNING Table of Contents FOR YOUR SAFETY: Table of Contents......2 Assembly.

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION IMPORTANT SAFETY INFORMATION WARNING FIRE TABLE IS FOR OUTDOOR USE ONLY WARNING IMPORTANT NOTICE IF YOU SMELL GAS • Extinguish any open flame. • Do not use a flame to check for gas leaks. • Do not store or use gasoline or other flammable vapours and liquids within 25’ (7.62 m) of this or any other appliance. •...
  • Page 4 IMPORTANT SAFETY INFORMATION • The use of alcohol, prescription or non-prescription drugs may impair an individual’s ability to properly assemble or safely operate this outdoor fire table. • DO NOT use in an explosive atmosphere. Keep gas fire table area a clear and free from combustible materials, such as gasoline. •...

  • Page 5: Propane (Lp) Dangers And Warnings

    IMPORTANT SAFETY INFORMATION ATTENTION: Any alteration of the outdoor fire table that is not specifically directed in the operations manual will void manufacturer warranty. PROPANE (LP) DANGERS AND WARNINGS LP GAS LP gas is flammable and hazardous if handled improperly. Become aware of the characteristics before using any LP gas product. Propane Characteristics: •...

  • Page 6: Hose & Regulator Assembly And Replacement

    IMPORTANT SAFETY INFORMATION HOSE & REGULATOR ASSEMBLY AND REPLACEMENT 1. This fire table comes equipped with a standard LP gas hose and regulator including the appliance side connection for a CGA No 791 Cylinder Connection Device. The LP gas hose and regulator supplied with this fire table must be used. Only a hose and regulator specified by manufacturer can be used for replacement.

  • Page 7: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED : Hardware not shown to actual size. NOTE Quantity Part...

  • Page 8: Packaging Contents

    Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Burner lid Limit Tube Table top Lava Rocks Left Side Panel Square Burner Bowl Door Burner Ring Right Side Panel Pilot Housing Manual Electric Igniter Back Panel Control Knob Tank Support Regulator/Hose...

  • Page 9: Assembly

    Assembly CONNECTING THE SIDE PANELS Place the table top (B) upside down on a soft surface. Attach the right side panel (E) and left side panel (C) to the table top (B) using M6X15 combination bolts (AA). Do not tighten the bolts at this step. NOTE: Pay attention to the direction of control knob, it must place as below direction shown.
  • Page 10 Assembly (continued) CONNECTING THE BACK PANEL Attach the back panel (F) to the table top (B) using M6X40 combination bolts (CC). Do not tighten the bolts at this step. NOTE: loosely tighten all the bolts using hex wrench (FF).
  • Page 11 Assembly (continued) CONNECTING THE LIMIT TUBE Attach the limit tube (H) to the left side panel and right side panel (C&E) using M6X15 combination bolts (AA). Do not tighten the bolts at this step. NOTE: loosely tighten all the bolts using hex wrench (FF). HOMEDEPT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 12 Assembly (continued) CONNECTING THE TANK SUPPORT Attach the tank support (G) to the left side panel and right side panel (C&E) using M6X25 combination bolts (BB). Do not tighten the bolts at this step. NOTE: loosely tighten all the bolts using hex wrench (FF).
  • Page 13 Assembly (continued) CONNECTING THE DOOR Insert the door (D) to the left side panel (C) using an M6X12 countersunk bolt (DD) and plastic washers (EE), as shown below. Do not tighten the bolts at this step. NOTE: loosely tighten all the bolts using hex wrench (FF). HOMEDEPT.CA Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 14 Assembly (continued) CHECK THE TABLE AND PLACE THE LAVA ROCKS Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (FF). Turn the assembled re table right side up and ensure that all connections are secure. Place the lava rocks (I) into the square burner bowl (J).
  • Page 15 Assembly (continued) PLACE THE BURNER LID Place the burner lid (A) over the square burner bowl (J). Make sure to remove the burner lid before lighting. Do not place the lid back onto burner bowl until it has cooled down. FOR YOUR SAFETY: Surfaces of re table can remain extremely hot for a period after use.

  • Page 16: Operations

    Operation INSERT THE BATERRY AND CONTROL KNOB Insert the AAA battery (GG) and control knob (N) into the electric igniter (M) and twist the button cover on to igniter housing. Do not over tighten. CAUTION: Do not put batteries into the re or trash. Please treat batteries as hazardous waste and recycle properly.
  • Page 17 Operation (continued) INSTALLING LP GAS TANK To operate, you will need one precision- lled standard grill LP gas tank with external valve threads. Loosen LP gas tank retainer bolt by turning counter-clockwise. Please precision- lled LP gas tank upright into hole in outdoor re table base so the tank value is facing the gas line connection. Secure tank by turning LP gas tank retainer bolt clockwise until tight.
  • Page 18 Operation (continued) CONNECTING LP GAS TANK Before connecting, be sure there is no debris caught in the head of the LP gas tank, head of the regulator valve or in the head of the burner ports. Connect the regulator/hose assembly to tank by turning knob clockwise until it stops.
  • Page 19 Operation (continued) DISCONNECTING LP GAS TANK Before disconnecting make sure the LP gas tank valve is “CLOSED”. Disconnect regulator/hose assembly from LP gas by turning knob conter-clockwise until it is loose. Place the protective cap cover on the LP gas tank and store it outdoors in a well-ventilated area out of direct sunlight. NOTE: LP gas tank must be properly disconnected and removed prior to moving this re table.
  • Page 20 Operation (continued) CHECKING FOR LEAKS AND BURNER CONNECTIONS Before using this outdoor re table, make sure you have read, understand and are following all information provided in the “important safety information” section on page 2 to 6. Failure to follow those instructions can serious, injury or property cause death, damage. Make sure the regulator/hose and valve connections are securely fastened to the burner and the tank.
  • Page 21 Operation (continued) TANK/GAS LINE CONNECTION LEAK TEST Make 2-3oz of leak detection solution by mixing one part liquid dishwashing soap with three parts water. Make sure the control knob is in the “OFF” position. Connect LP gas tank per “CONNECTING LP GAS TANK” section. Turn LP gas tank valve to “OPEN”.
  • Page 22 Operation (continued) CLOSE THE DOOR Close the door. Now the re table is complete and ready to use.
  • Page 23 Operation (continued) WARNING: NEVER light the burner with the cover on the outdoor re table. proper ame height CAUTION: Keep outdoor gas appliance area clear and free from combustible materials, gasoline and other flammable vapours and liquids. CAUTION: Do NOT obstruct the flow of combustion and ventilation air. CAUTION: Check and clean burner/venturi tubes for insects and insect nests.
  • Page 24 Operation (continued) LIGHTING (CONTINUED) 11. If igniter does not light burner: a. Wearing heat-resistant gloves, position a long, lit match or long, lit butane lighter near the pilot housing. b. Push and turn control knob to “ON”. c. Remove match/lighter once burner is lit. 12.

  • Page 25: Care And Maintenance

    CARE AND MAINTENANCE Cleaning Surfaces 1.Wipe surfaces clean with mild dishwashing detergent or baking soda mixed with water. 2.For stubborn stains, use a citrus-based cleaner and a nylon scrubbing brush. 3.Rinse clean with water. 4.Allow to air dry. Before Storing 1.Turn LP gas tank valve to “CLOSED”.

  • Page 26: Troubleshooting

    TROUBLESHOOTING Make sure regulator is securely attached to LP gas tank valve is closed the LP gas tank per “Installing LP Gas Tank,” then turn LP gas tank valve to “OPEN” LP gas tank is low or empty Exchange, refill or replace LP gas tank 1.
  • Page 27 TROUBLESHOOTING Exchange, refill or replace LP gas tank Out of gas 1. Turn control knob to “OFF” 2. Wait 30 seconds and light outdoor re table per “Lighting” section 3. If flames are still too low, reset the overfilling prevention device: a.
