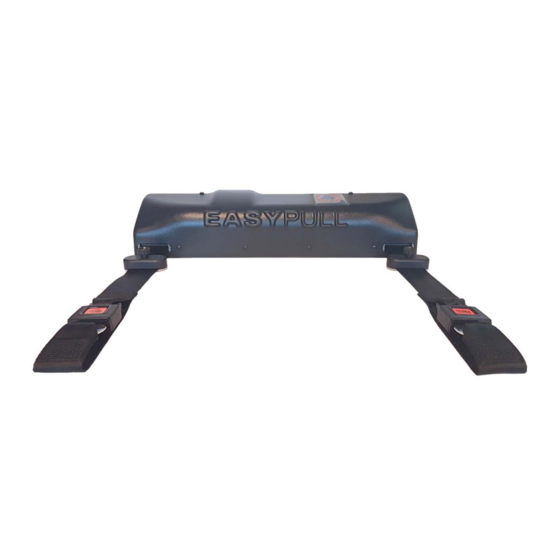

AMF-BRUNS EASYPULL User Manual

EASYPULL

Before Daily Use

• Visually inspect Easy Pull for webbing damage.
• Check that buckles latch correctly, magnets are not broken or missing, etc.
• Check magnets position and tighten magnet locking screws by turning clockwise after
each adjustment.

After Daily Use

• Always fully retract webbing back into housing.
• Report any damage or malfunctions on unit.

System Operation: Load Wheelchair

• Open rear door and unfold ramp.
• Grab and hold both loops of webbing.
• Press & hold the "A" or "C" button on remote control and pull webbing
until you're at the end of the ramp.
• ONLY USE "C" BUTTON WITHOUT WHEELCHAIR ATTACHED.
• Secure wheelchair by feeding webbing through/around
a solid member of wheelchair's frame or any location showing
this symbol:
• Adjust magnets according to size of wheelchair.
• Magnets MUST BE minimum 10" ahead of footrest of the wheelchair.
• Release wheelchair brakes.
• Position yourself behind wheelchair.
• Holding chair irmly, press & hold "B" button on the remote control.
• Guide wheelchair safely into vehicle until magnets touch base
(approximately 3 cm / 1 3/16" away).
• Once system locks, pull wheelchair backwards ensuring chair is safely locked.
• Hook up rear securements by anchoring retractor or belt to vehicle's loor.
• Place hook or loop on a solid frame of
wheelchair frame or any location using this symbol:
• Apply tension on the retractors or belts accordingly.
DO NOT OVER-TENSION. Apply wheelchair breaks.
• Occupant system lap & shoulder belt must always be used.
• Fold ramp and close rear door safely.
