Clevis Installation - MODSTER Arrows 1100mm J3 Cub Operating Manual

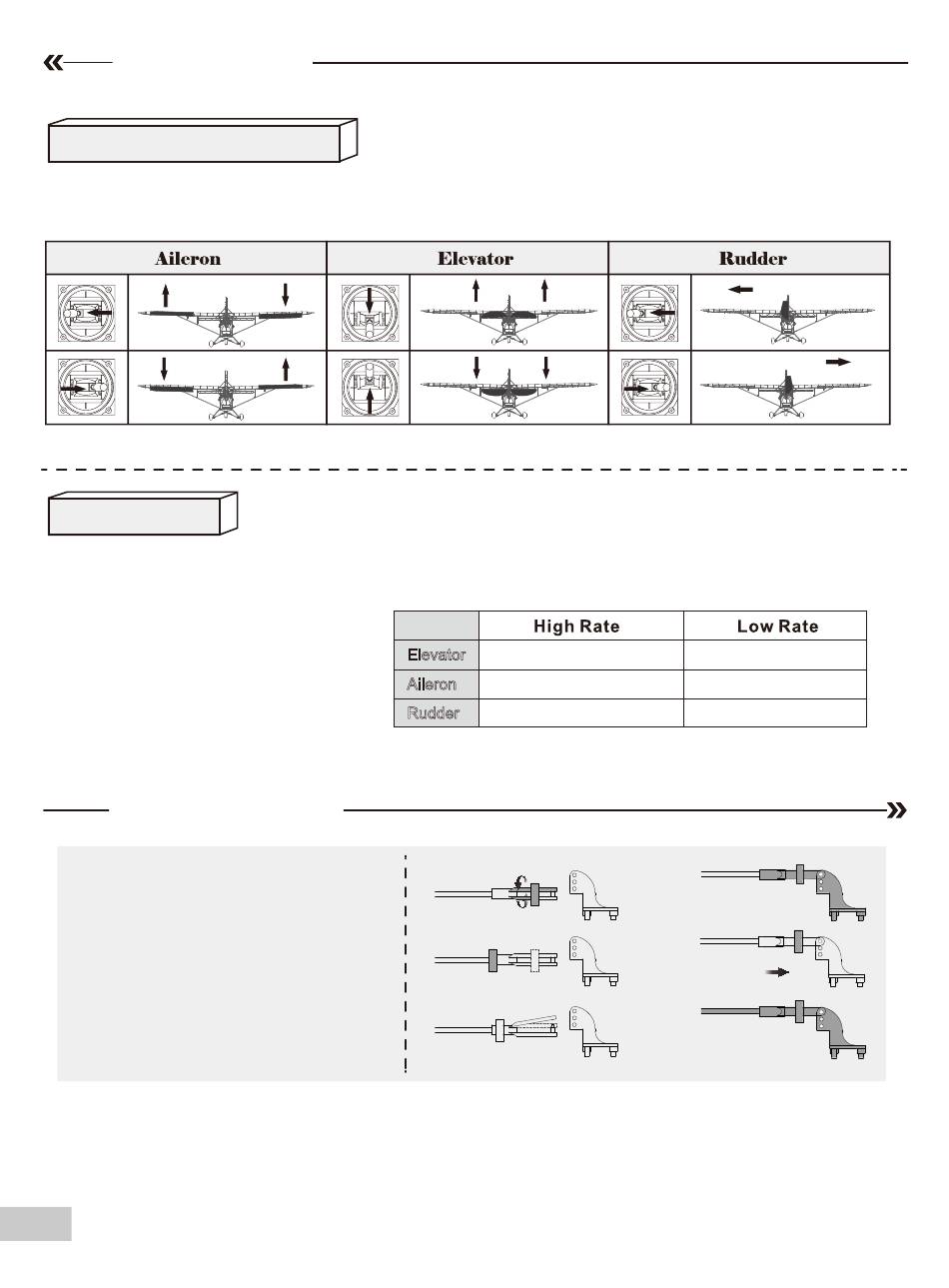

Preflight check
transmitter and model setup
After assembly and prior to your first flight, make sure all control surfaces respond correctly to your transmitter by referring
to the diagram below.
Control throws
The suggested control throw setting for the J3 Cub are as follows (dual rate setting):
Tip: The maiden flight should always be
flown using low rates, fly the aircraft until you
are familiar with its characteristics prior to
trying high rates. Make sure the aircraft is
flying at altitude and adequate velocity prior
to using high rates, as the aircraft will be
sensitive to control inputs with the larger
control surface movements.

Clevis installation

1.Pull the tube from the clevis to the linkage.
2.Carefully spread the clevis, then insert the
clevis pin into the desired hole in the control
horn.
3.Move the tube to hold the clevis on the
control horn.
08
Elevator 14mm up / down
14mm up / down
Aileron
Rudder 16mm left / right
a.
b.
c.
12mm up / down
12mm up / down
14mm left / right
d.
e.
f.
