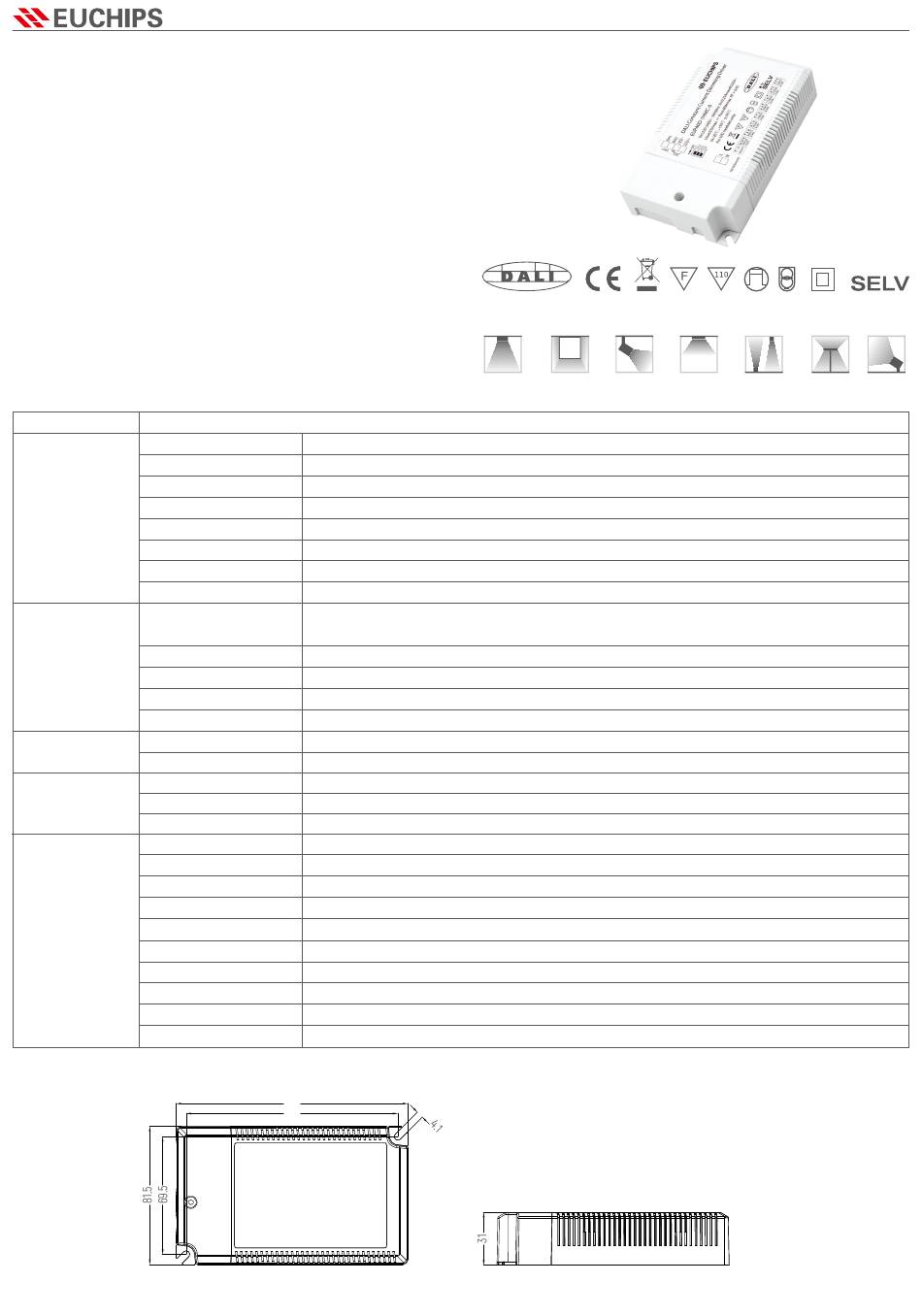

EUP40D-1HMC-0
(Product No.:102100240101)
Summary
EUP40D-1HMC-0 is a constant output mode LED driver. The output current can be easily
set via DIP switch, EUP40D-1HMC-0 can be connected to DALI master or Touch DIM to
achieve a smooth dimming effect.
Product Features
·Single channel output, output current level selectable by DIP S.W.
·Meet DALI Protocol IEC 62386
·Support Touch-DIM function
·High input voltage of 220VAC ~ 240VAC
·High efficiency up to 88%
·Built-in active PFC function
·Dimming effect smooth, no flicker
·Protections: Short circuit, over load, over temperature
·Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Paramaters
Model
EUP40D-1HMC-0
Efficiency
Voltage
Frequency Range(Hz)
Power Factor
Input
THD(full load)
AC Current(max)
Standby power
Inrush Current(max)
Current(mA)/Voltage (VDC)
Power(W)
Ripple Current
Output
Channel
Current Tolerance
No load output voltage
Dimming Type
Function
Dimming Range
Short Circuit
Protection
Over Load
Over Temperature
Working Temp.
Storage Temp., Humidity
Tc
Material
Others
IP Rating
Lifetime
Warranty Condition
Switch Cycle
Packing(weight)
Dimension
Dimension(mm)
User's manual: 2019-9
88%@230VAC,Full load
220VAC-240VAC
50/60Hz
≥0.95@230VAC,Full load
<10%@230VAC, Full load
0.23Amax@230VAC
<0.5W
Cold start,40A(twidth=12.8 us measured at 50% Ipeak)@230VAC
850mA/9-45VDC/38.25W
900mA/9-44VDC/39.6W
1100mA/9-36VDC/39.6W
1050mA/9-38VDC/39.9W
<3%
1
±5%
55V Max
DALI /Touch DIM(Push DIM)
0.1%-100% Dimming to off
Close output, recovers automatically after fault removed
When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced.
Shut down the output, recovers automatically when temp. back to normal.
-20℃~50℃
-40℃~85℃, 20-90%RH
85℃
PC
IP20
30,000h@tc:75℃
3 Years
>15,000 times
Net weight: 225g±5%/PCS; 50PCS/Carton;11.75kg±5%/Carton; Carton Size: 517*337*179mm(L*W*H)
137*82*31mm(L*W*H)
137
125
1/2
Application
Downlight
Panel Light
Spotlight
950mA/9-42VDC/39.9W
1150mA/9-35VDC/40.25W
DALI Constant Current Dimming Driver
Ceiling Light
Decorative Light
Floor Light
1000mA/9-40VDC/40W
1200mA/9-33VDC/39.6W
www.euchips.com
Flood Light
