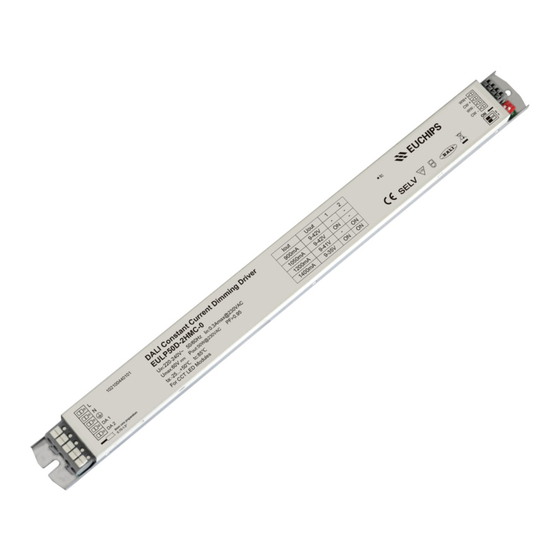

EUCHIPS EULP50D-2HMC-0 Quick Start Manual

EULP50D-2HMC-0
(Product No.:102100440101)

Summary

EULP50D-2HMC-0 is a LED controller that provides two channels outputs.The user can select the total
output current via DIP switch.It supports DALI DT8 standard protocol and adjustment of brightness and
colour temperature.

Product Features

· Meet DALI Protocol IEC 62386 DT8
· SELV. Full protective plastic housing
· High efficiency up to 86 %
· Built-in active PFC function
· Dimming effect smooth, no flicker
· Protections: Short circuit, over load, over temperature
· The positive output of the two channels is common
· Supports adjustment of brightness and colour temperature.
Technical Paramaters
Model
EULP50D-2HMC-0
Efficiency
Voltage
Frequency Range(Hz)

Input

Power Factor
THD(full load)
AC Current(max)
Standby power
Inrush Current(max)
Current(mA)/Voltage (VDC)
Power(W)
Ripple Current

Output

Channel
Current Tolerance
No load output voltage
Dimming Type

Function

Dimming Range
Short circuit

Protection

Over Load
Over temperature
Surge
Withstand Voltage
Safety& DALI Standard

EMC

Safety Standards
EMC Eission
EMC Immunity
Working Temp.
Storage Temp., Humidity
tc
Material
IP Rating

Others

Lifetime
Warranty Condition
Switch Cycle
Packing(weight)
Dimension
User's manual: 2020.03

Application

Downlight
>86%@230VAC,Full load
220VAC-240VAC
50/60Hz
≥0.95@230VAC,Full load
<10%@230VAC, Full load
0.3Amax@230VAC
<0.5W
Cold start,18A(twidth=14us measured at 50% Ipeak)@230VAC
900mA/9-42VDC/40.5W 1050mA/9-42VDC/47.25W
1200mA/9-41VDC/49.2W 1400mA/9-35VDC/49W
<3%
2
±5%
60Vdc
DALI/Touch DIM
1%-100%
Close output，recovers automatically after fault removed
When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced.
Shut down the output, recovers automatically when temp. back to normal.
L-N:1000V
I/P-O/P: 3000VAC/1min/5mA
IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-209, DALI 1.0
EN61347, GB19510
EN50515, EN61000-3-2
EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
-20℃~50℃
-40℃~85℃, 20-90%RH
85℃
Metal
IP20
30,000h@tc:80℃
3 years
>15000 times
Net weight: 305g±5%/PCS; 50PCS/Carton; 15.75kg±5%/Carton; Carton Size:370*326*127mm(L*W*H)
360*30*21mm（L*W*H）
1/2
Panel Light Spotlight Ceiling Light

Current Selection Table

900mA
ON OFF
9-42V
Remark: Function default setting is: 900mA (@switch are
all OFF state)
DALI Constant Current Dimming Driver
Decorative Light Floor Light Flood Light
1050mA 1200mA 1400mA
9-42V 9-41V 9-35V
