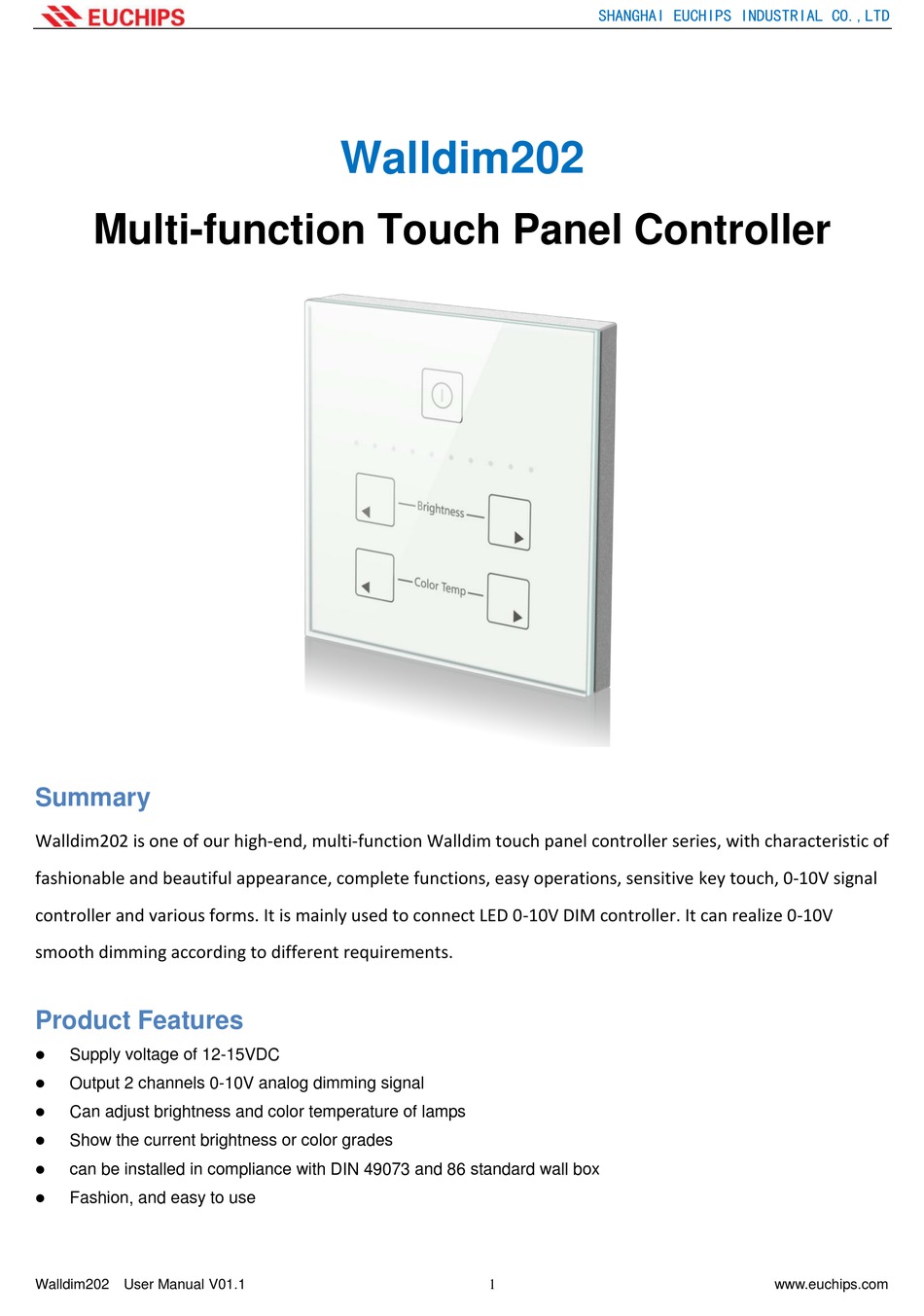

Multi-function Touch Panel Controller
Summary
Walldim202 is one of our high-end, multi-function Walldim touch panel controller series, with characteristic of
fashionable and beautiful appearance, complete functions, easy operations, sensitive key touch, 0-10V signal
controller and various forms. It is mainly used to connect LED 0-10V DIM controller. It can realize 0-10V
smooth dimming according to different requirements.
Product Features
Supply voltage of 12-15VDC
Output 2 channels 0-10V analog dimming signal
Can adjust brightness and color temperature of lamps
Show the current brightness or color grades
can be installed in compliance with DIN 49073 and 86 standard wall box
Fashion, and easy to use
Walldim202 User Manual V01.1
Walldim202
1
SHANGHAI EUCHIPS INDUSTRIAL CO.,LTD
www.euchips.com
Advertisement
Table of Contents
Related Manuals for EUCHIPS Walldim202
Summary of Contents for EUCHIPS Walldim202
- Page 1 Multi-function Touch Panel Controller Summary Walldim202 is one of our high-end, multi-function Walldim touch panel controller series, with characteristic of fashionable and beautiful appearance, complete functions, easy operations, sensitive key touch, 0-10V signal controller and various forms. It is mainly used to connect LED 0-10V DIM controller. It can realize 0-10V smooth dimming according to different requirements.
- Page 2 Walldim202 Voltage 0-10VDC Output Current 50mA*2ch Channels Voltage 12V-15VDC Input ＜1W Standby power Dimension 86*86*26 mm（L*W*H） Packing size 145*145*48mm（L*W*H） N.W. 105g Others 140g Working temp. -10℃ ~ 40℃ Relative humidity 20~90% RH Dimension（mm） Function Description Walldim202 User Manual V01.1 www.euchips.com...
- Page 3 Remark: If the user don't operate in 10s, indicator light will enter the minimum light condition until the next operation Interface Introduction ◆ Power input interface DC 12-15V input, supply power for the controller it takes. ◆ Signal output interface 0-10V signal output can control LED 0-10V DIM controller. Typical Application Walldim202 User Manual V01.1 www.euchips.com...
- Page 4 To connect the output and power wires to the corresponding input and output terminal blocks on the behind of glass panel. To lock the bottom box on the wall and fix it with the screwdriver. To buckle the glass panel to the bottom box. Walldim202 User Manual V01.1 www.euchips.com...
- Page 5 1. Connect the load wire at first, following by the power wire; Please ensure short circuit can’t occur between connecting wire before you turn on the power. 2. Power supply voltage range is DC12-15V, more than voltage maybe will burnout the controller. Walldim202 User Manual V01.1 www.euchips.com...
