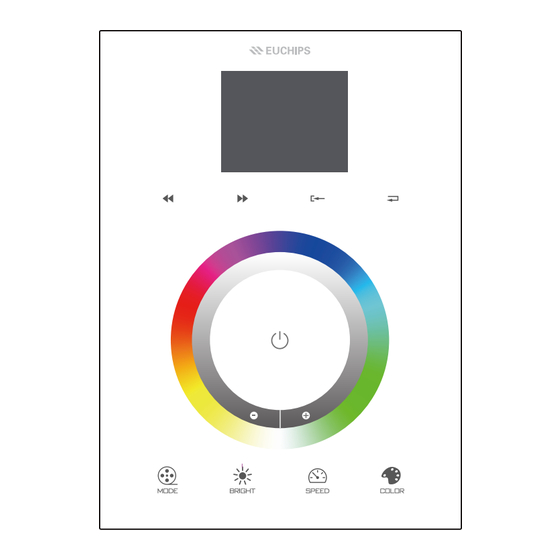

DMX Live And Stand Alone Controller
DMX-P08
Product Features
·Meets DMX512/1990
·1024 DMX Channels.Control 340 RGB Fixtures
·For adjusting the full-color ,tunable white and brightness
·Real time clock and calendar for time triggers
·USB connectivity for programming and control
·8GB Micro SD card for stand alone use
·4 Dry contact triggers(on RJ45)
·Support third party 485 protocol trigger(on RJ45)
·Master/slave mode, connect up to about 50 pcs by Ethernet
·iPhone/iPad/Android remote
Summary
DMX-P08 is a full-color LED DMX control system which focuses on indoor and outdoor decorative
lighting, which can be used stand alone or with computer. It comprises scene-edit software.You can
edit various lighting effects by downloading the programme which edit according to your special
requirement from your PC.This control system can fulfill 256 grey levels for each R,G,B color,totally
16.77 million real full-color.The software has been developed specially for architectural lighting and
features easy to use effects which can be dropped onto timelines,along with multi-zone and
synchronization allowing you to program a project with multiple rooms and areas with ease.
Technical Parameters
Input Voltage :
5V DC, 0.15A-1A(by USB) / 12V DC input on RJ45
Power Consumption :
< 2W
Connection :
USB 2.0 , Ethernet
Output connector :
RJ45
Transmission signal :
DMX512/1990
Output channels :
1024 DMX channels
Stand Alone mode :
1024 DMX channels
Wallwashing light,Tube light, Cube light,etc.
Lamp type :
OS Requirement :
Windows XP/Vista/Seven/Win10 32/64 1Ghz CPU, 512 MB RAM
PC Software :
Euchips X-DMX
Environment :
IP20, -25℃ to 70 ℃
Specification :V01
DMX-P08
1

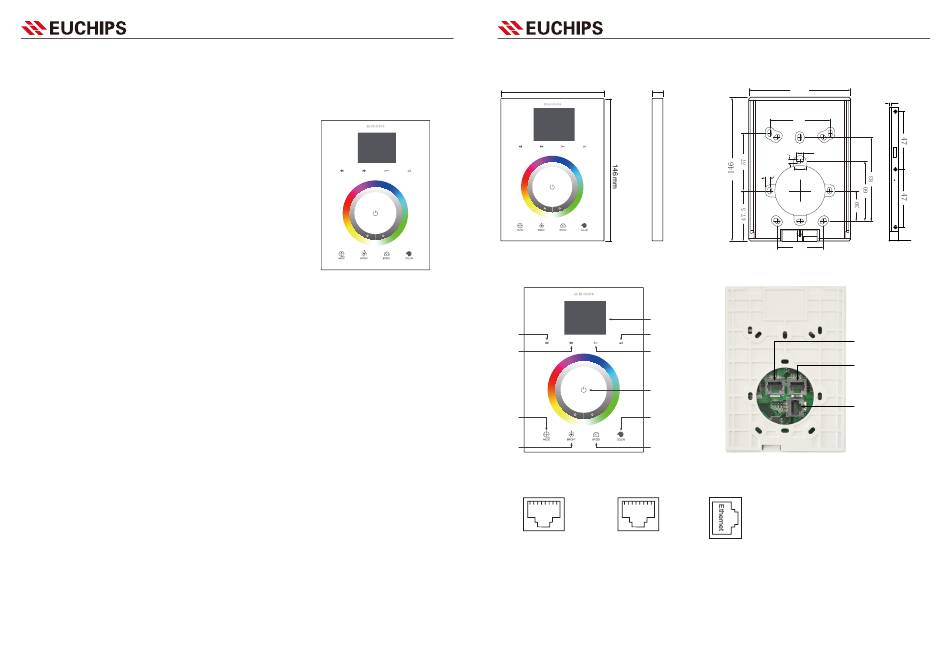

Dimension (mm)
106mm
11mm
Interface Instruction
OLED
Screen
Pre
Enter
Next
Back
OFF/ON
Mode
Color
Bright
Speed
RJ45 (1)
RJ45 (2)
Power+DMX
485+Dry contact
12345678
12345678
Pin1 : DMX1+
Pin1 : 485+
Pin2 : DMX1-
Pin2 : 485-
Pin3 : DMX2+
Pin3 : IO1
Pin4 : 12V
Pin4 : IO2
Pin5 : 12V
Pin5 : IO3
Pin6 : IO4
Pin6 : DMX2-
Pin7 : GND
Pin7 : GND
Pin8 : GND
Pin8 : GND
Specification :V01
106
60
7
4
4.5
12
46
RJ45(1)
Power+DMX
RJ45(2)
485+Dry contact
RJ45(3)
Ethernet socket
RJ45 (3)
Ethernet socket
2
DMX-P08
3
11
