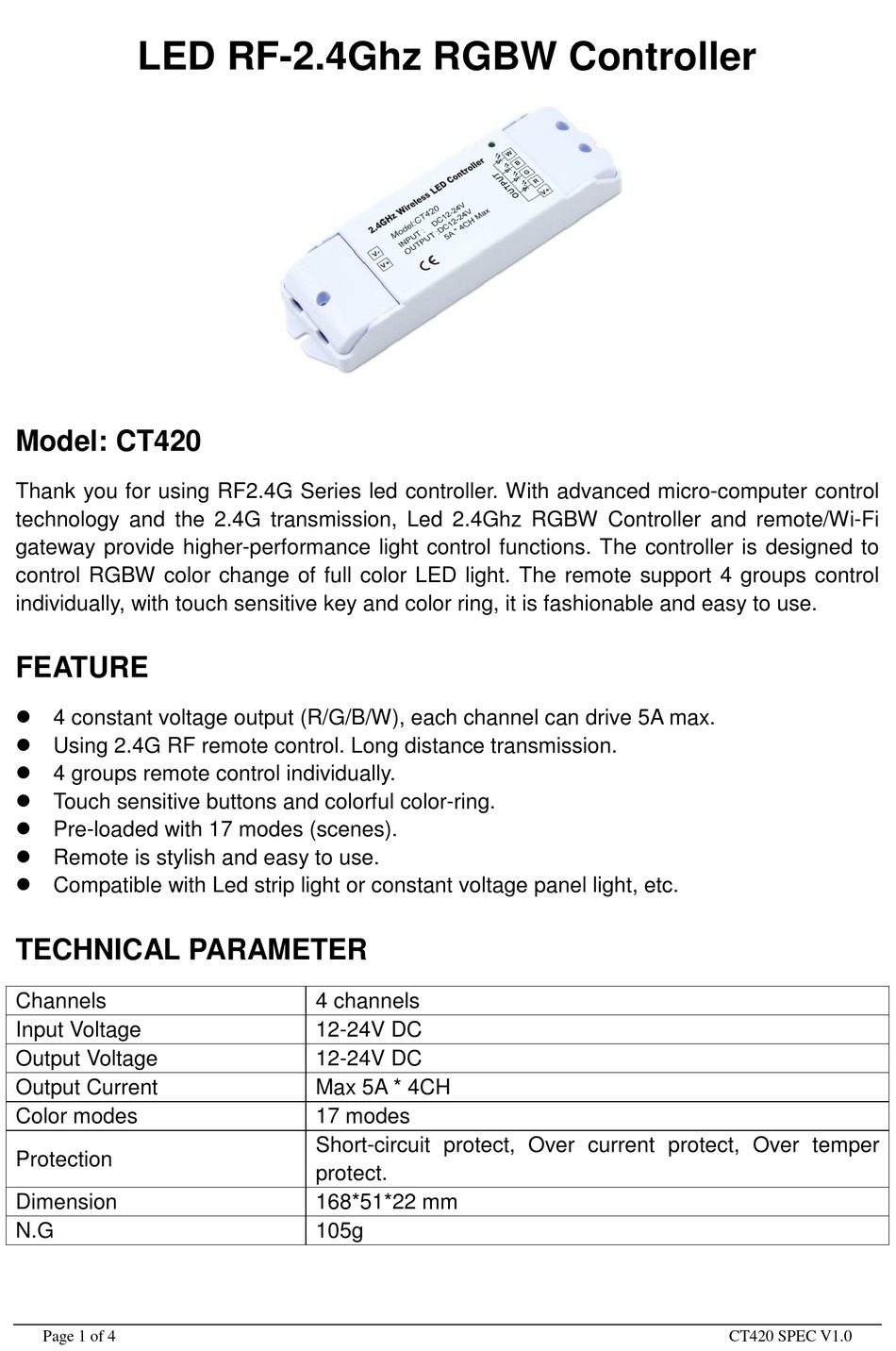

LED RF-2.4Ghz RGBW Controller
Model: CT420
Thank you for using RF2.4G Series led controller. With advanced micro-computer control
technology and the 2.4G transmission, Led 2.4Ghz RGBW Controller and remote/Wi-Fi
gateway provide higher-performance light control functions. The controller is designed to
control RGBW color change of full color LED light. The remote support 4 groups control
individually, with touch sensitive key and color ring, it is fashionable and easy to use.
FEATURE
4 constant voltage output (R/G/B/W), each channel can drive 5A max.
Using 2.4G RF remote control. Long distance transmission.
4 groups remote control individually.
Touch sensitive buttons and colorful color-ring.
Pre-loaded with 17 modes (scenes).
Remote is stylish and easy to use.
Compatible with Led strip light or constant voltage panel light, etc.
TECHNICAL PARAMETER
Channels
Input Voltage
Output Voltage
Output Current
Color modes
Protection
Dimension
N.G
Page 1 of 4
4 channels
12-24V DC
12-24V DC
Max 5A * 4CH
17 modes
Short-circuit protect, Over current protect, Over temper
protect.
168*51*22 mm
105g
CT420 SPEC V1.0
Advertisement
Table of Contents
Related Manuals for EUCHIPS CT420
Summary of Contents for EUCHIPS CT420
- Page 1 4 channels Input Voltage 12-24V DC Output Voltage 12-24V DC Output Current Max 5A * 4CH Color modes 17 modes Short-circuit protect, Over current protect, Over temper Protection protect. Dimension 168*51*22 mm 105g Page 1 of 4 CT420 SPEC V1.0...
- Page 2 Brightness-/Brightness+: Adjust the led lights brightness. Speed-/Speed+: Increase or decrease the speed of light color flashing. Group ON/Group OFF: Press the button to turn on or turn off the lights which be Page 2 of 4 CT420 SPEC V1.0...
- Page 3 5 seconds later after batteries installed. If the touch key or ring is low-sensitive, please reinstall the batteries in the right way. MODE LIST Red Fade Green Strobe Green Fade Blue Strobe Blue Fade White Strobe RG Fade RG Strobe Page 3 of 4 CT420 SPEC V1.0...
- Page 4 The LED RGBW controller can also connect with Wi-Fi Gateway （Model： WiFi-203） ， so you can use your mobile smart phone or iPad to control the lightings. More information about the smart lighting system, please see the WiFi-203 specification. Page 4 of 4 CT420 SPEC V1.0...
