DMX Controller Series
Product Brief

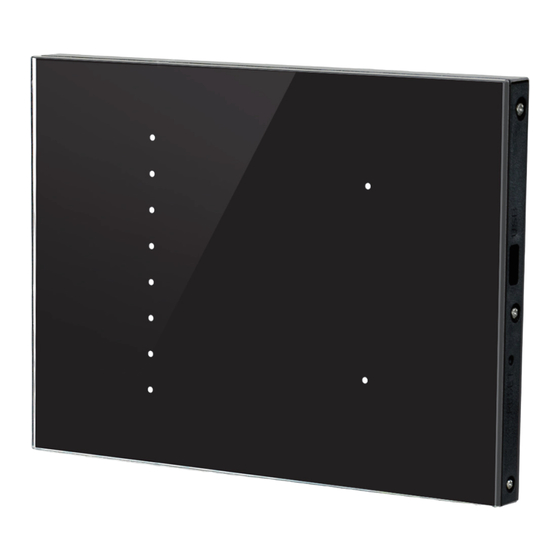

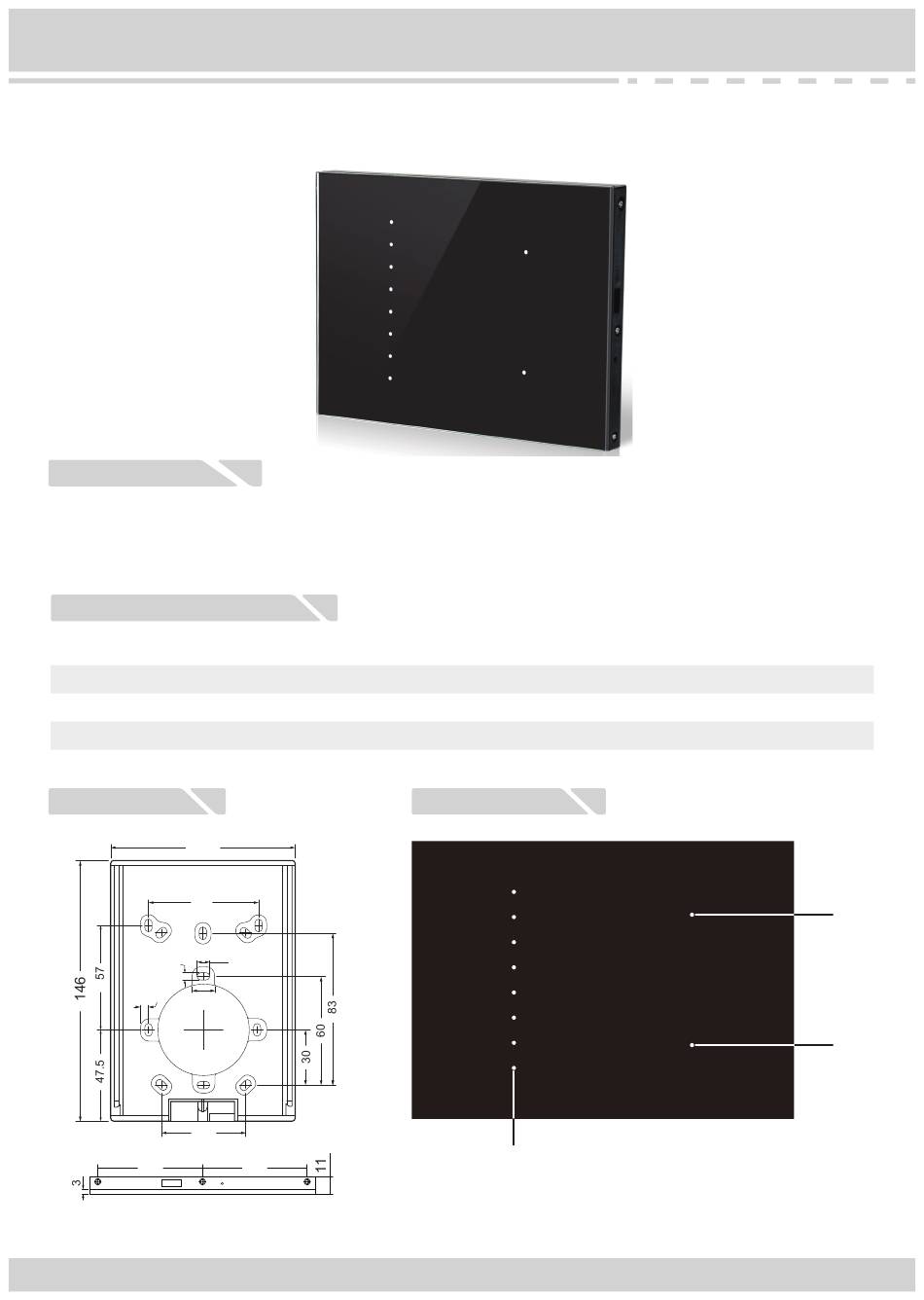

DMX800E1 is a LED touch control panel, meet DMX512 (1990) protocol, stylish appearance and
with audible prompts. Slider used for brightness adjustment, it's very easy to learn and use. Dimming
curve is smooth, no flicker.
Technical parameters
Input Voltage: 12-24VDC
Case material: Tempered glass
Brightness level: 100 level
W.G: 315g
Dimension
3
106
60
4
4.5
12
46
47
Meets DMX512(1990) Protocol
1
2
7
47
DMX800E1
Control mode: Touch
Current: 50mA(Max)
Product size: 146(L) *106 (W)*11(H) mm
Work temperature: -35℃ - 55℃
Appearance
Brightness adjustment
- 1 -
DMX800E1
4
ON
OFF
Advertisement
Related Manuals for EUCHIPS DMX Series
Summary of Contents for EUCHIPS DMX Series
- Page 1 DMX Controller Series DMX800E1 DMX800E1 Meets DMX512(1990) Protocol Product Brief DMX800E1 is a LED touch control panel, meet DMX512 (1990) protocol, stylish appearance and with audible prompts. Slider used for brightness adjustment, it’s very easy to learn and use. Dimming curve is smooth, no flicker.
- Page 2 DMX Controller Series DMX800E1 Function Guide Power ON Under OFF state, click on the “ON” button to open the DMX panel, the lamps controlled by the panel will light up with the last closed state. ON button led indicator lights up. Power OFF Under ON state, click on the “OFF”...
- Page 3 DMX Controller Series DMX800E1 Connection Description DMX Decoder GND DMX- DMX+ DMX+ DMX- DMX800E1 Power Supply 100-240VAC 12-24VDC Installation guide 1. Mount a electrical box inside the wall. DMX800E1 can be installed in any standard electrical box, you can insert the adapter inside or outside the electrical box. 2.
